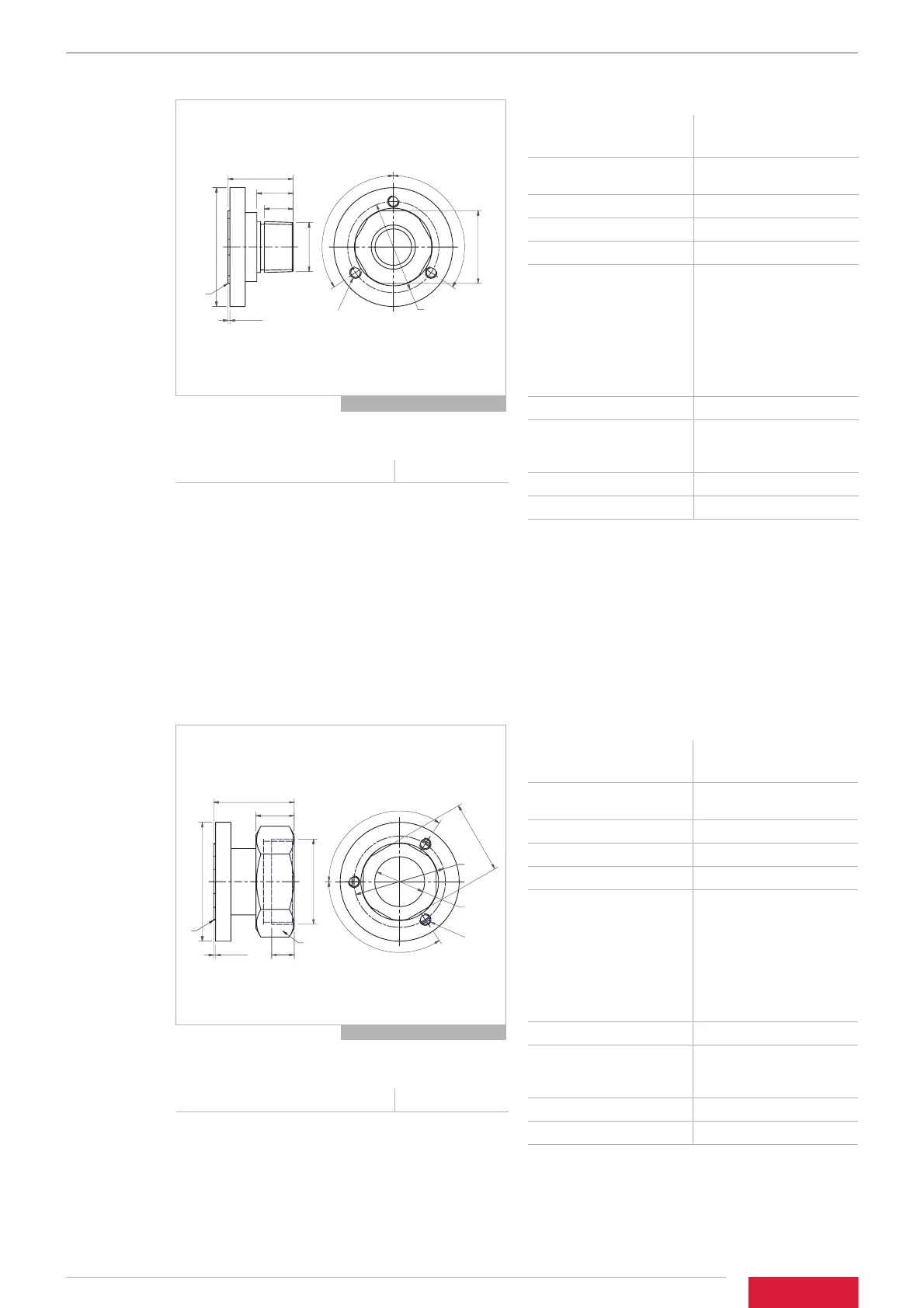

10.1.3INT280 Adapter 3/4"- 14 NP
Order data
Technical specifications
Dimensions in mm
INT280 Adapter 3/4"- 14 NPT 02 K 503 S21
34
19
15
Ø 47.6
A
124°124°
A=max. 1
Ø62
Ø25.67
WS38
3x M6
Permitted ambient
temperature
-30…+100°C
Permitted rel. humidity
10-95% RH, without
condensation
Operating pressure
max. 140bar
Test pressure
max. 210bar
Connection thread
3/4" - 14 NPT
Flange mounting
- Screws M6x20 Class 8.8 DIN 933
- Washer DIN EN ISO 7089-6-St
- Toothed gear DIN 6798-A 6.4-FSt
- Seal EPDM
- Tightening torque 9Nm
Material
Steel, nickel-plated
Permissible media
Oils and refrigerant that do not
attack the material of the
adapter.
Dimensions
See dimensions in mm
Weight
Approx. 300g
10.1.4INT280 Adapter 1 3/4"- 12 UNF
Order data
Technical specifications
Dimensions in mm
INT280 Adapter 1 3/4"- 12 UNF 02 K 504 S21
42
20
11.8
Ø 47.6
Ø 26
A
124°
124°
A=max. 1
Ø62
1
3
/
4
"-12 UNEF
WS38
WS50
3x M6
Permitted ambient
temperature
-30…+100°C
Permitted rel. humidity
10-95% RH, without
condensation
Operating pressure
max. 140bar
Test pressure
max. 210bar
Connection thread
1 3/4" - 12 UNF
Flange mounting
- Screws M6x20 Class 8.8 DIN 933
- Washer DIN EN ISO 7089-6-St
- Toothed gear DIN 6798-A 6.4-FSt
- Seal EPDM
- Tightening torque 9Nm
Material
Steel, nickel-plated
Permissible media
Oils and refrigerant that do not
attack the material of the
adapter.
Dimensions
See dimensions in mm
Weight
Approx. 300g
