Kroeplin B110 - English

15
Contents:
No. Subject Page
1 Service elements 15
2 Display and operating keys 16
3 Functions and programs 18
4 Handling of functions and programs 20
5 General advice on measuring 23
6 Problem report 23
7 Power supply 24
8 Accessories – Interface 24
9 Technical Details 25
10 Warranty 27
Gauge types
B110 / B110T*
)
B220 / B220S / B2R20 / B2R20S
B440 / B440S / B4R40 / B4R40S / B440T*
)
B660 / B6R60 / B660T*
)
*
)
Measuring arms for the gauges B110T, B440T,
B660T:
3 Fixed measuring arm
4 Movable measuring arm

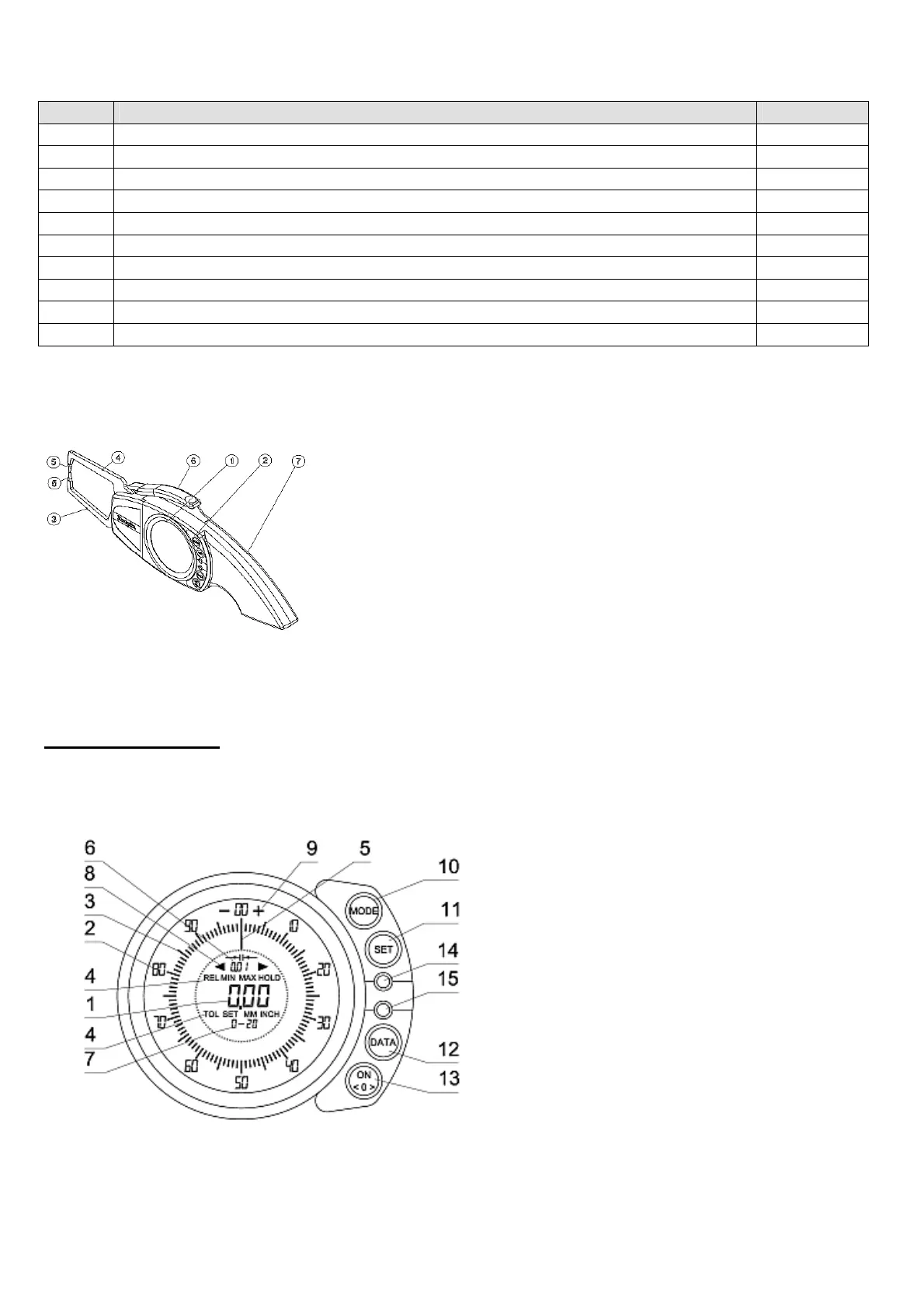

Description
1 LCD display
2 Operating keys
3 Movable measuring
arm
4 Fixed measuring arm
5 Measuring contacts
6 Operating lever
7 Battery cover
1. Service elements
Description
1 Numerical Display
2 Display inscription
3 Analog display
4 Functions
5 Pointer
6 Scale interval
7 Measuring range
8 Tolerance direction
9 +/- display for comparison measurement
10 MODE key
11 SET key
12 DATA key
13 ON / 0-PRESET key
14 LED red (tolerance limit)
15 LED green (tolerance limit)
