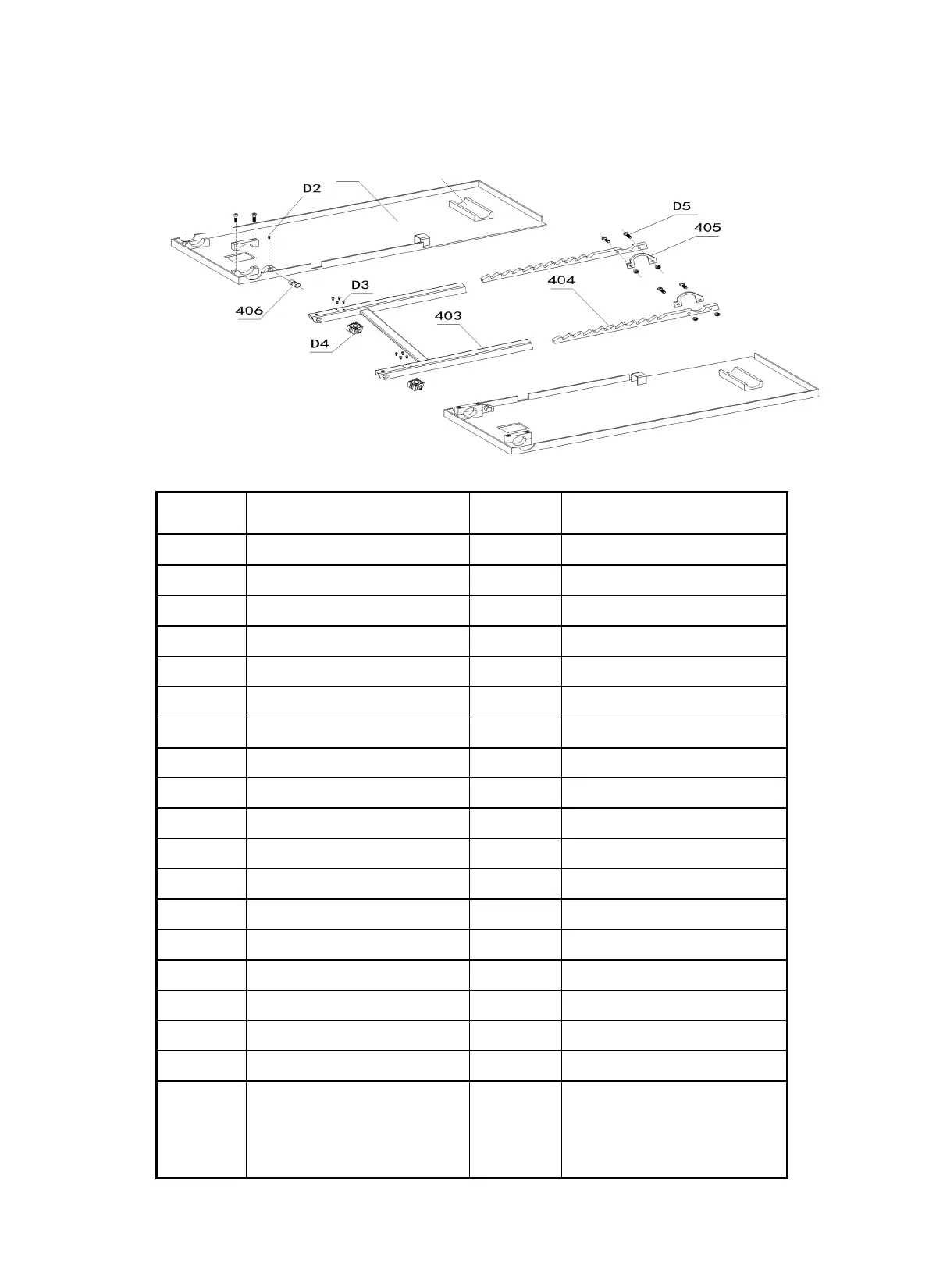

D1
Dó
401
Code
Name
Code
Name
1
Platform
301
Internai arm
2
Internai arm
302
Roller
3
Externai arm
303
Shaft for roller
4
Base
304
Cylinder
101
Platform
C1
Bearing 2515
102
Ramp
C2
Circlip <D 25
103
Ramp Support
401
Base
104
Roller
402
Tube support
105
Shaft for ramp
403
Upper lock
A1
Bolt M6 X 10
404
Lock
A2
Circlip <D 14
405
Lock fix
A3
Circlip <D 16
406
Lock shaft
201
Externai arm
D1
Bolt M10 X 55
202
Shaft for arm
D2
Bolt M6 X 10
203
Shaft for cylinder
D3
Bolt M5 X 30
204
Shaft for arm
D4
Cylinder
B1
Bearing 3030
D5
Bolt M10 X 55
B2
Circlip <D 25
D6
Slider
B3
Circlip <D 30
! : ---- · ,--
