NOTE

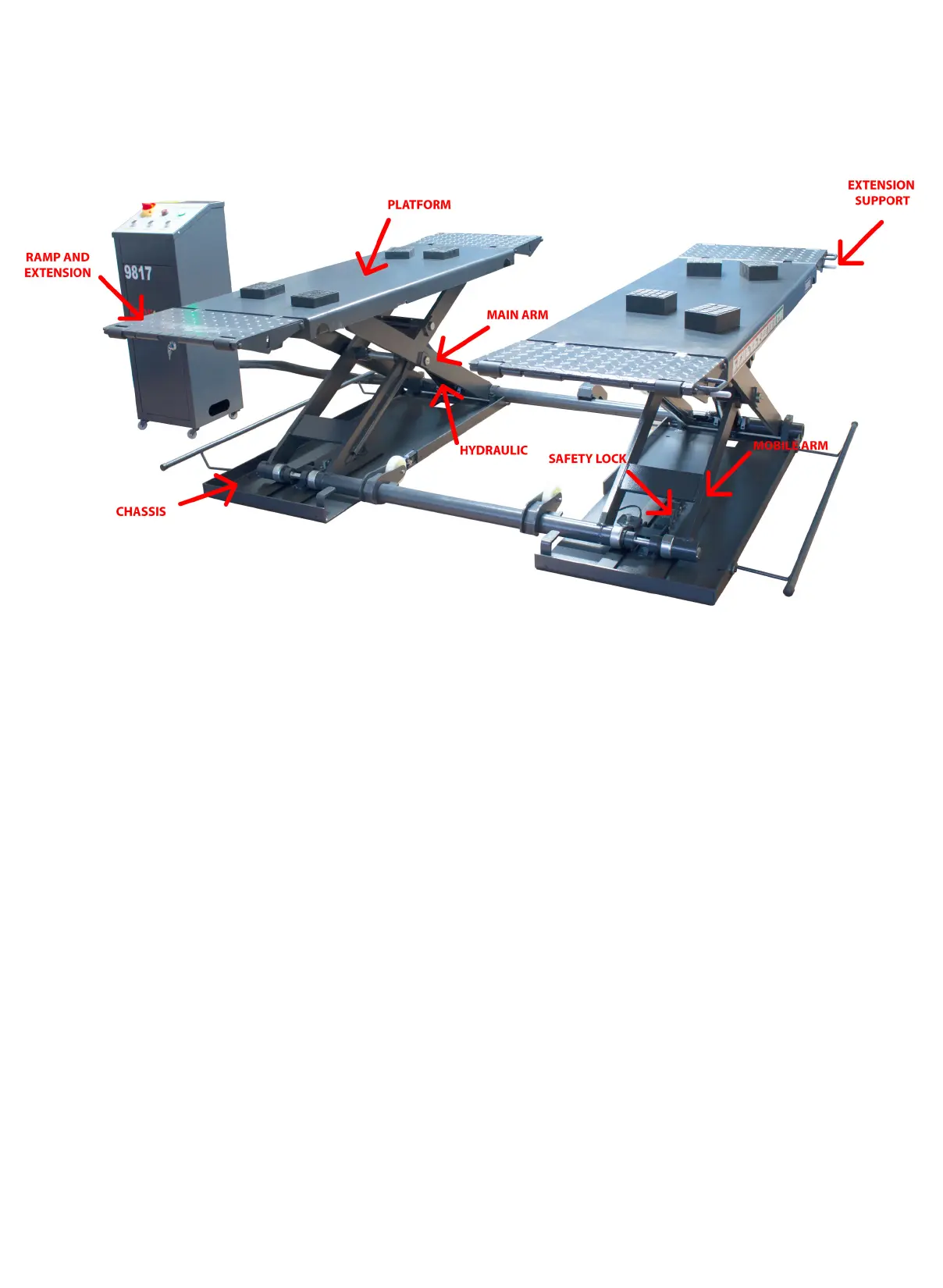

lt is the main parts figures above. More detailed components and assembly please see
exploded view.
5.
INSTALLATION
Connecting pipes
There are two pipes from the hydraulic pump as shown in the figure. (X) is a electric wire
and used for the safety lock. (Y) is a hydraulic oil pipe and used for the hydraulic
cylinders.
