Checking the usage
Intended use
Actuator IC 50
It is designed for all applications that require precise,
controlled rotary movement between 0° and 90°. If
the voltage is disconnected, the actuator stops at
the current position.
The combination of actuator IC50 and butterfly valve
DKR is designed to adjust volumes of hot air and
flue gas on various appliances and flue gas lines.
This function is only guaranteed when used within the
specified limits– see page8 (Technical data). Any
other use is considered as non-compliant.
For information on butterfly valves DKR, see DKR
operating instructions→ www.docuthek.com→
Kromschröder→ Products→ 03Valves and but-
terfly valves.
Type code
Code Description
IC 50 Actuator for butterfly valves
-0
-07
-5
-0
-60
Running time [s]/Adjustment angle [°]:
3.7/90
7.5/90
15/90
30/90
60/90
W
Q
H
Mains voltage:
230 VAC, 50/60 Hz
120 VAC, 50/60 Hz
24 VAC, 50/60 Hz

7
5
0
0
Torque:
3 Nm
7 Nm
15 Nm
20 Nm
30 Nm
E
T
Continuous control
Three-point step control
R0 Feedback potentiometer
Combination of actuator with butterfly valve
Type IDR + attachment set
IDR..GD
IDR + attachment set with linkage
(DKR..D)
IDR..GDW
IDR + attachment set with linkage
and heat deflector (DKR..D)
IDR..GA
IDR + attachment set with linkage
(DKR..A)
IDR..GAW
IDR + attachment set with linkage
and heat deflector (DKR..A)
IDR..AU
IDR + attachment set for axial mount-
ing (IC50 above the pipe)
IDR..AS
IDR + attachment set for axial mount-
ing (IC50 to the side of the pipe)

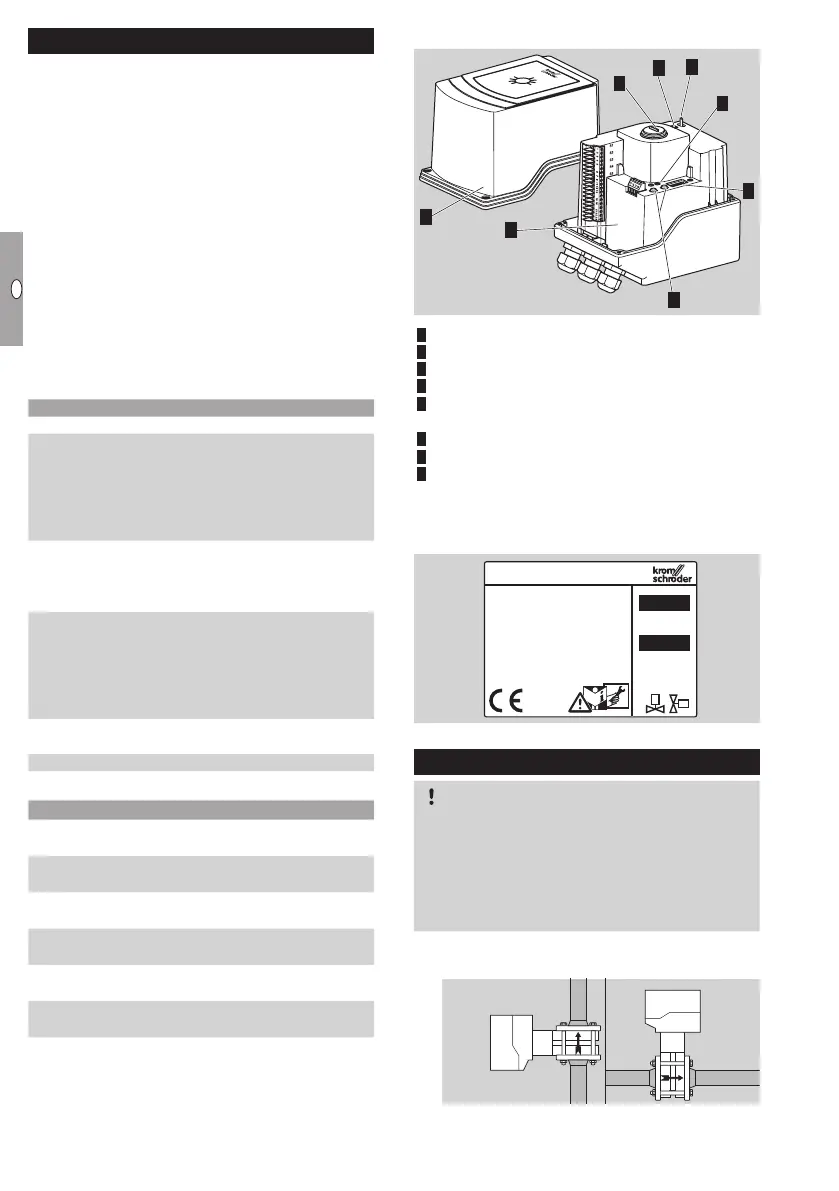

Part designations
0°
ccw
30°
60°
90°
0°
30
°
cw
60°
90°
5
4
7
8
1
2
3
6
 Housing cover
 Cover
 Angle-of-rotation indicator
4 Slide switch (S10/S12)
5 Toggle switch (S11)
IC 50..E:
6 min/max buttons
7 DIP switch
8 Red and blue LEDs
Mains voltage, electrical power rating, enclosure,
ambient temperature, torque and installation posi-
tion– see type label.
D-49018 Osnabrück, Germany
www.kromschroeder.com
IC
P:
U:
Installation
CAUTION
Please observe the following to ensure that the
actuator is not damaged:
– Do not store or install the unit in the open air.
– Dropping the device can cause permanent dam-
age. In this event, replace the entire device and
associated modules before use.
▷ Installation in the vertical or horizontal position,
not upside down.
▷ For the assembly of actuator with butterfly valve
and attachment sets, and for installation in a pipe,
see DKR operating instructions.
