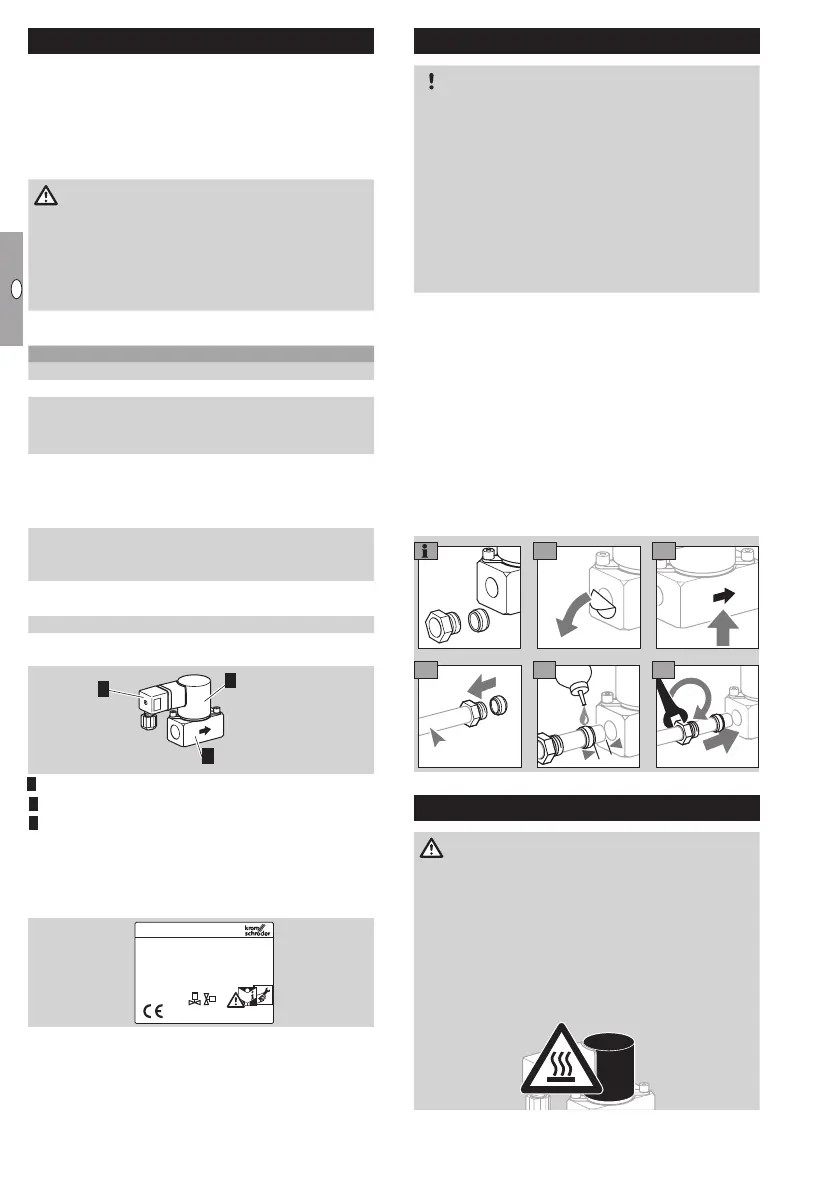

Checking the usage
Intended use
Gas solenoid valve for safeguarding gas or air on
various appliances.
This function is only guaranteed when used within
the specified limits– see page5 (Technical data).
Any other use is considered as non-compliant.
ATTENTION
Cleaning work on the solenoid actuator may not
be performed using high pressure and/or chemi-
cal cleaning agents. This can cause moisture to
get into the solenoid actuator and may lead to a
dangerous failure.
Type code
Code Description
VG Gas solenoid valve
6 – 5/0 Nominal size
K
R
Double-cone olive for 8mm tube
loosely enclosed
Rp internal thread
0
0
05
8
p
u max.
100 mbar
p
u max.
360 mbar
p
u max.
500mbar
p
u max.
1.8 bar
T
Q
K
Mains voltage: 220/240VAC, 50/60 Hz
Mains voltage: 120VAC, 50/60 Hz
Mains voltage: 24VDC
6 Connection via 3-pin standard plug and
socket
G Low-noise
Part designations
6
5
1
2
4
3
1
2
3
5
7
1
2
3
 Housing
 Solenoid actuator
 Socket
Type label
Rated voltage, electrical power consumption, in-
stallation position, max. inlet pressure p
u
, ambient
temperature, enclosure and medium: see type label.
www.kromschroeder.com
Osnabrück, Germany
VG
CE - 006CM88
Installation
CAUTION
Please observe the following to ensure that the VG
is not damaged during installation and operation:
– Continuous operation at high temperatures ac-
celerates the ageing of elastomer materials.
– Do not install or store the unit in the open air.
– Dropping the device can cause permanent dam-
age. In this event, replace the entire device and
associated modules before use.
– Check max. ambient temperature – see type label.
– Check max. inlet pressure – see type label.
▷
Installation position: black solenoid actuator in
the vertical upright position or tilted up to the
horizontal, not upside down.
▷ Sealing material and dirt, e.g. thread cuttings,
must not be allowed to get into the valve housing.
▷ Install a filter upstream of every system.
▷ Use approved sealing material only.
▷ Ensure that there is sufficient space for installa-
tion and adjustment.
VG 6K for compression fittings
▷
The double-cone olive and cap screw are en-
closed.
ø 8 mm
Oel
1
3
54
2
Wiring
WARNING
Attention! Please observe the following to ensure
that no damage occurs:
– Electric shocks can be fatal! Before working
on possible live components, ensure the unit
is disconnected from the power supply.
– The solenoid actuator heats up during opera-
tion. Surface temperature approx. 85°C (approx.
185°F) pursuant to EN 60730-1.
▷ Use temperature-resistant cable (>80°C/176°F).
▷ Wiring to EN 60204-1.
