Operation

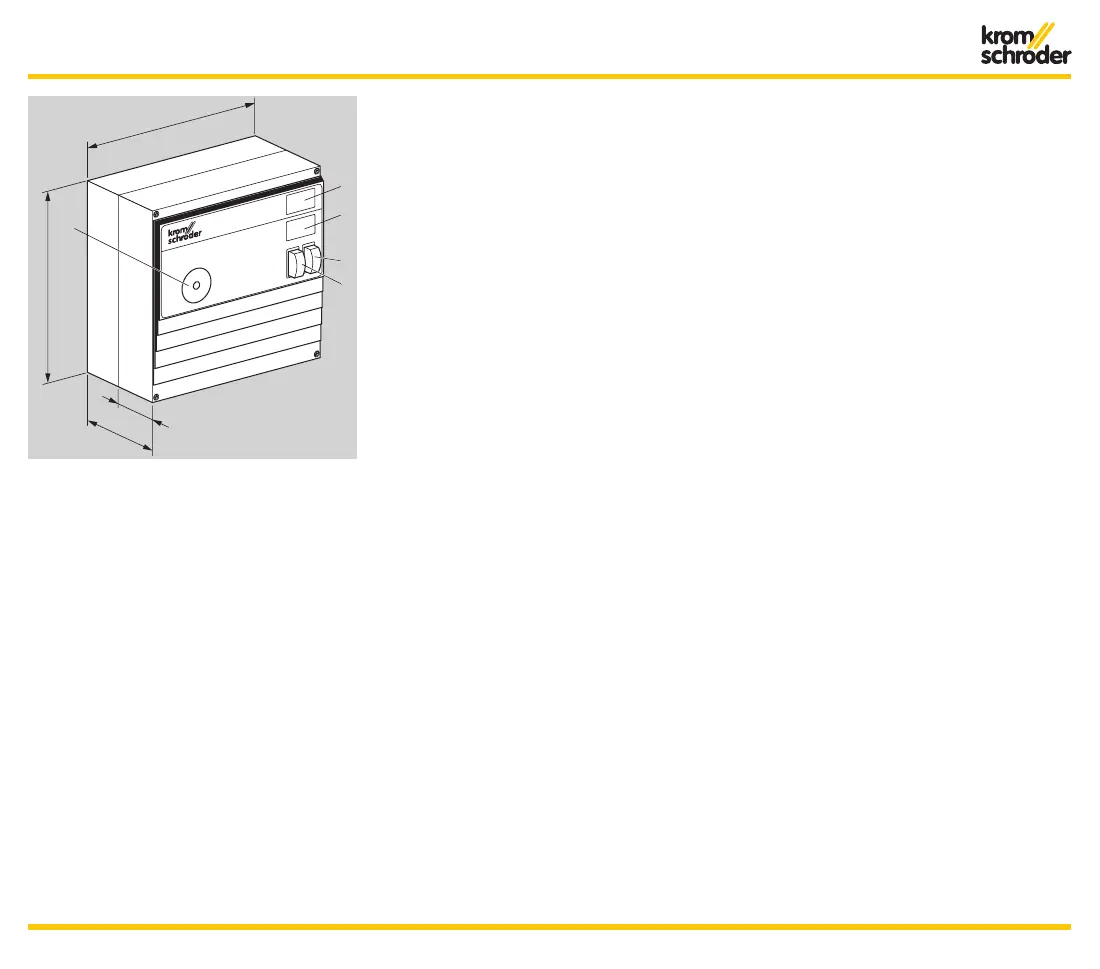

A: Optical interface
B: Labeling panel
C: Two-digit, 7-segment display
D: Power on/off switch
E: Reset/Information button for re
-
setting after a fault or for calling
parameters onto the display.
During operation, the 7-segment
display shows the program status.
Should a fault occur, the BCU stops
the program sequence and the dis-
play flashes displaying the sequence
or fault code. The flame signal and
all the following parameters of the
BCU can be viewed on the display
consecutively by repeatedly pressing
the Reset/Information button.
