Maintenance
218
Pos: 52.33 /Ab kürzungen /Abkürz ungen sprac hneutral/Rundb allenpressen/Co mprima V @ 25 6\mod_139771 4229979_0.docx @ 1962670 @ @ 1
Comprima V
Pos: 52.34 /Übersc hriften/Zwisch enüberschrifte n/P-Trecht e Maschinenseite @ 60\mod_1 297935179130_ 78.docx @ 5627 41 @ @ 1

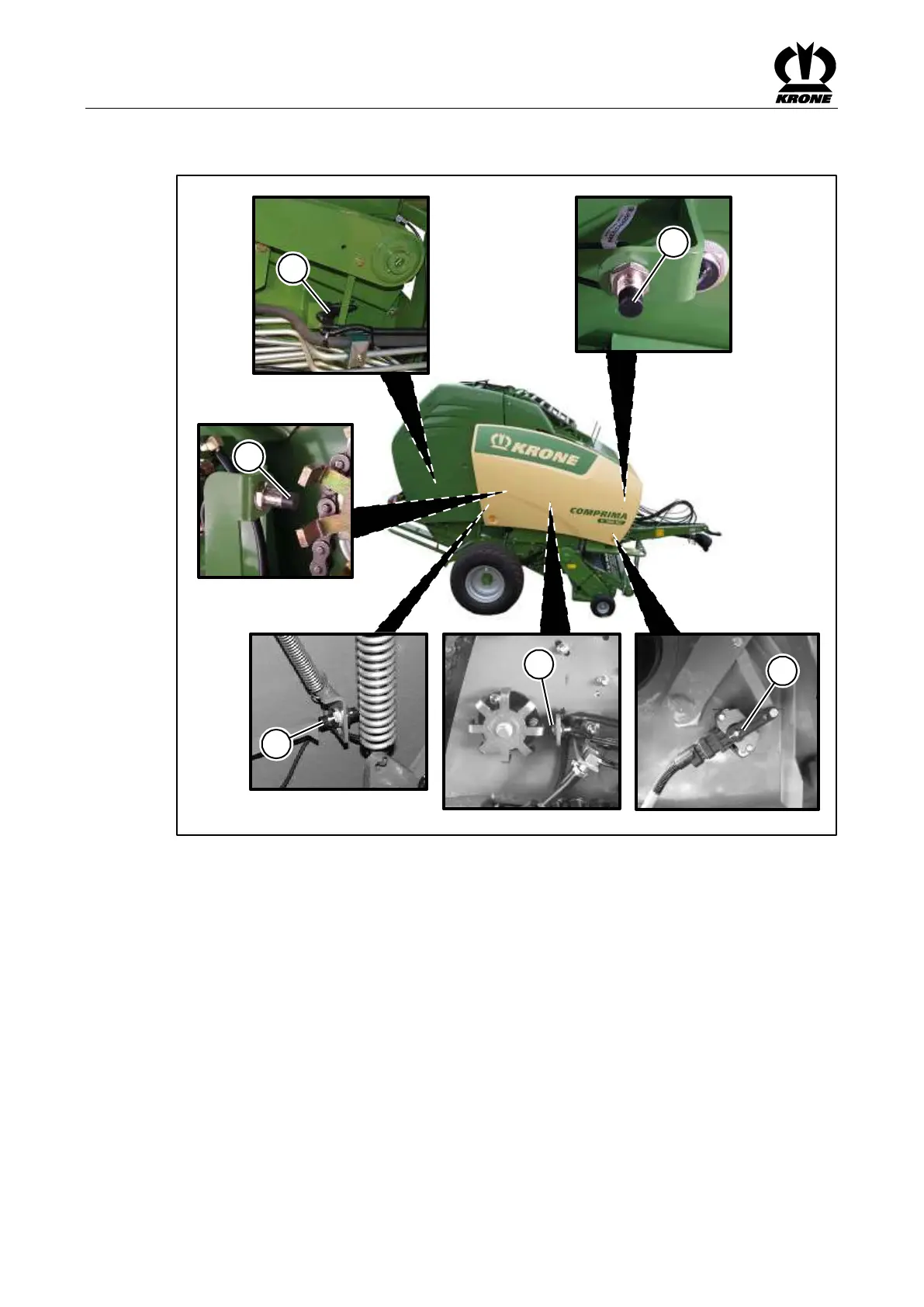

Right-hand Side of the Machine
Pos: 52.35 /BA/ Wartung/Rundballe npresse/Sens oren/Lage der Sensoren r echts_bild_Co mprima V RP025 @ 505\mod _1499415077139 _78.docx @ 34 77351 @ @ 1
COM00577_1
5
3
4
1
2
6
Fig.
187
Pos: 52.36 /Übersc hriften/Zwisch enüberschrifte n/A-E/Beispi elabbildung (Co mprima V 180 XC) @ 505\m od_14994202794 72_78.docx @ 3477582 @ @ 1
Example image (Comprima CV 180 XC)
Pos: 52.37 /BA/ Wartung/Rundb allenpresse/Sens oren/Lage der Sensoren rec hts_bildlegende_C omprima V RP 025 @ 508\ mod_150090 6097371_78.doc x @ 3490780 @ @ 1
1
Sensor B10 filling display right
4
Sensor B01 rotational speed of bale
chamber
2
Sensor B63 tying mechanism twine
(with "Net and twine tying" version)
5
Sensor B12 lock hook bale chamber
right
3
Sensor B61 tying 1 (passive)
6
Sensor B06 tying cycle active (twine
tying) (with "Net and twine tying" version)
