Commissioning
77
Pos: 40.19.17 / BA/Erstinbetriebn ahme/Rundball enpresse/Balle nauswerfer/6_G estänge montier en_Bild_Com prima @ 295\ mod_141224 2167621_78.doc x @ 232130 9 @ @ 1
COM00366

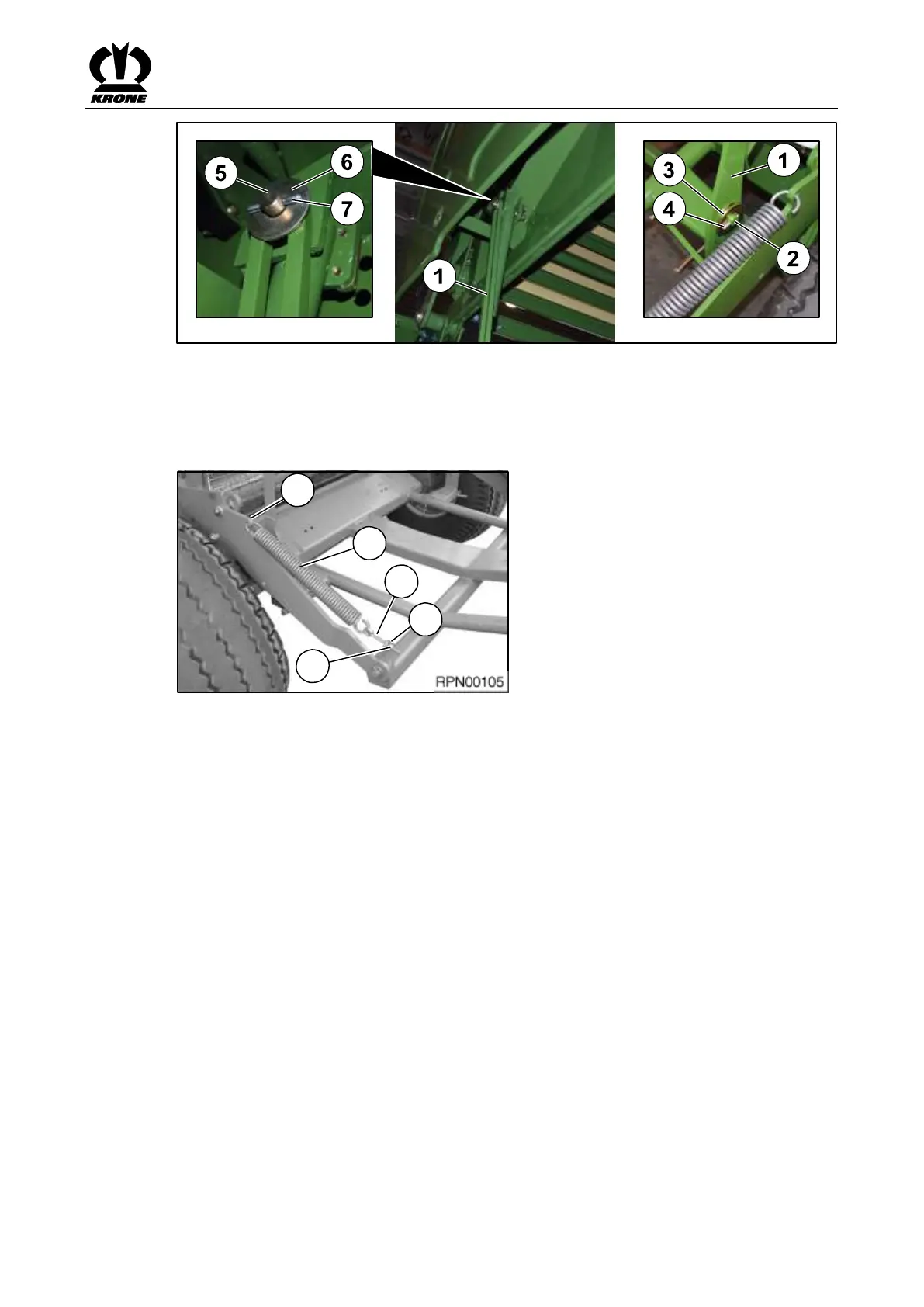

Fig.
44
Pos: 40.19.18 / BA/Erstinbetriebn ahme/Rundball enpresse/Balle nauswerfer/6_G estänge montier en_Text @ 1 91\mod_138 1922668059_7 8.docx @ 16 33852 @ @ 1
• Push the linkage (1) on the right and left onto the stud bolts (2) on the frame and secure
with a washer (3) and clamping sleeve (4).
• Push the linkage (1) on the right and left onto the stud bolts (5) on the tailgate and secure
with a washer (6) and clamping sleeve (7).
Pos: 40.19.19 / BA/Erstinbetriebn ahme/Rundball enpresse/Balle nauswerfer/7_Z ugfeder und Auge nschraube ei nhängen @ 191 \mod_13 81923248446_7 8.docx @ 1633 876 @ @ 1
3
1
2
5
4
Fig.
45
• Hook the tension spring (1) into the link (5) on the holding plate.
• Hook the eye bolt (3) into the tension spring (1) and guide it through the bore hole (2).
• Secure with disc and nut (4).
• Tighten the nut (4) until the bale ejector swings safely into the basic setting after depositing
the bale.
