Krone Comprima V 150 - Page 84

Commissioning
84
Pos: 40.39.10 / BA/Erstinbetriebn ahme/Rundball enpresse/Gele nkwelle/Gele nkwelle an die M aschine montieren _Bild2_Compri ma @ 514 \mod_150418 2229900_78. docx @ 3535827 @ @ 1
1
3
COM00619
7
6
4
5

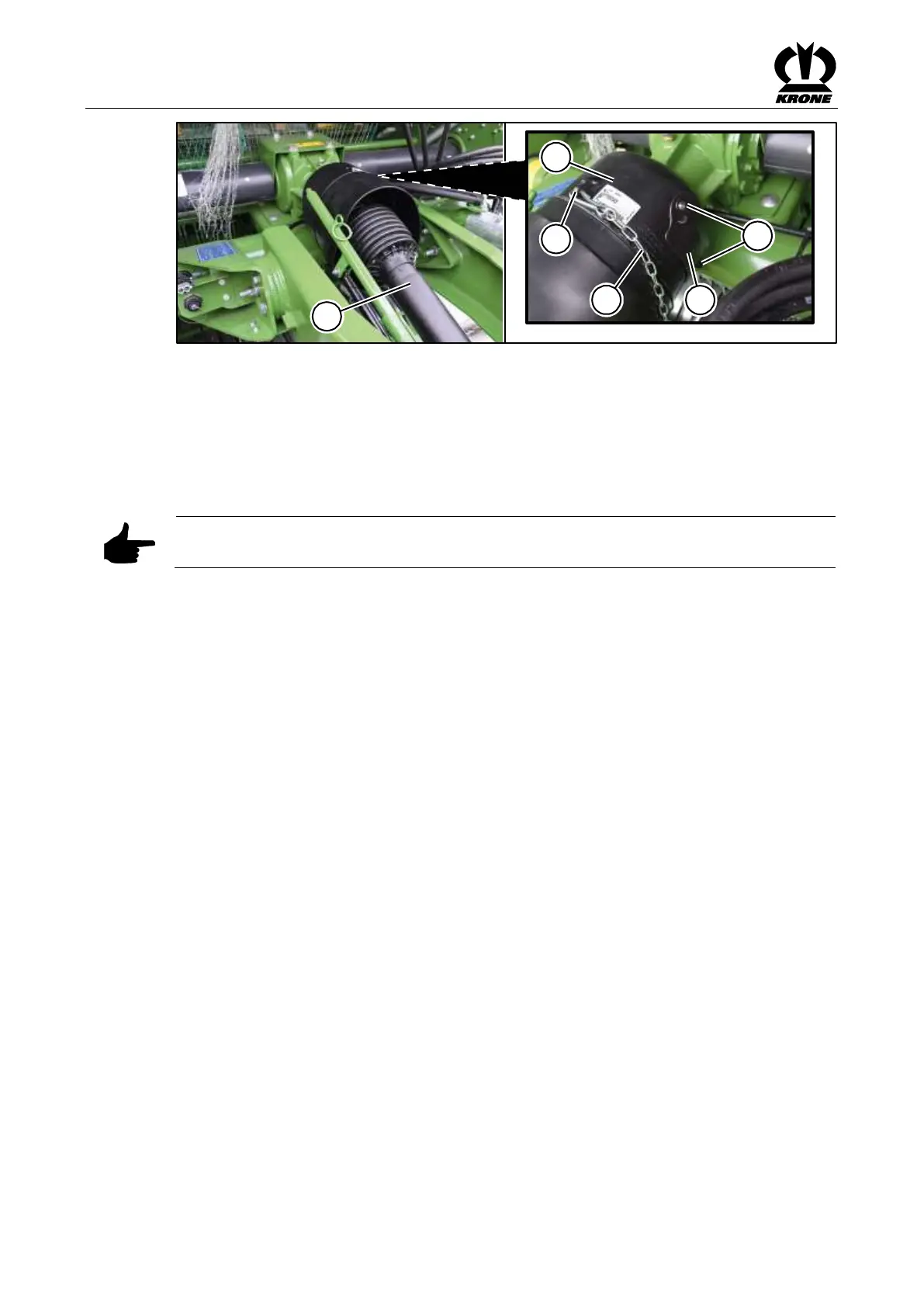

Fig.
54
Pos: 40.39.11 / BA/Erstinbetriebn ahme/Rundball enpresse/Gele nkwelle/Gele nkwelle an der M aschine m ontieren_Text2_C omprima @ 51 4\mod_15041 82912642_78.do cx @ 3535921 @ @ 1
• For easy access to the screw connection (2) at the universal shaft (1), remove the screw
connection (7) and the cover (6) at the protective cap (3).
• Push the universal shaft (1) onto the PTO shaft end of the machine.
• Mount the screw connection (2) through the resulting hole behind the cover (6).
• Attach the cover (6).
• Hook the universal shaft chain (5) into the eye (4) at the protective cap (3).
For more details or in case of different universal shafts, refer to the operating instructions for
the universal shaft comprised in the delivery.
