Unscrew the Compensation Spring
EC-405
a
a
d
d
b
a
c

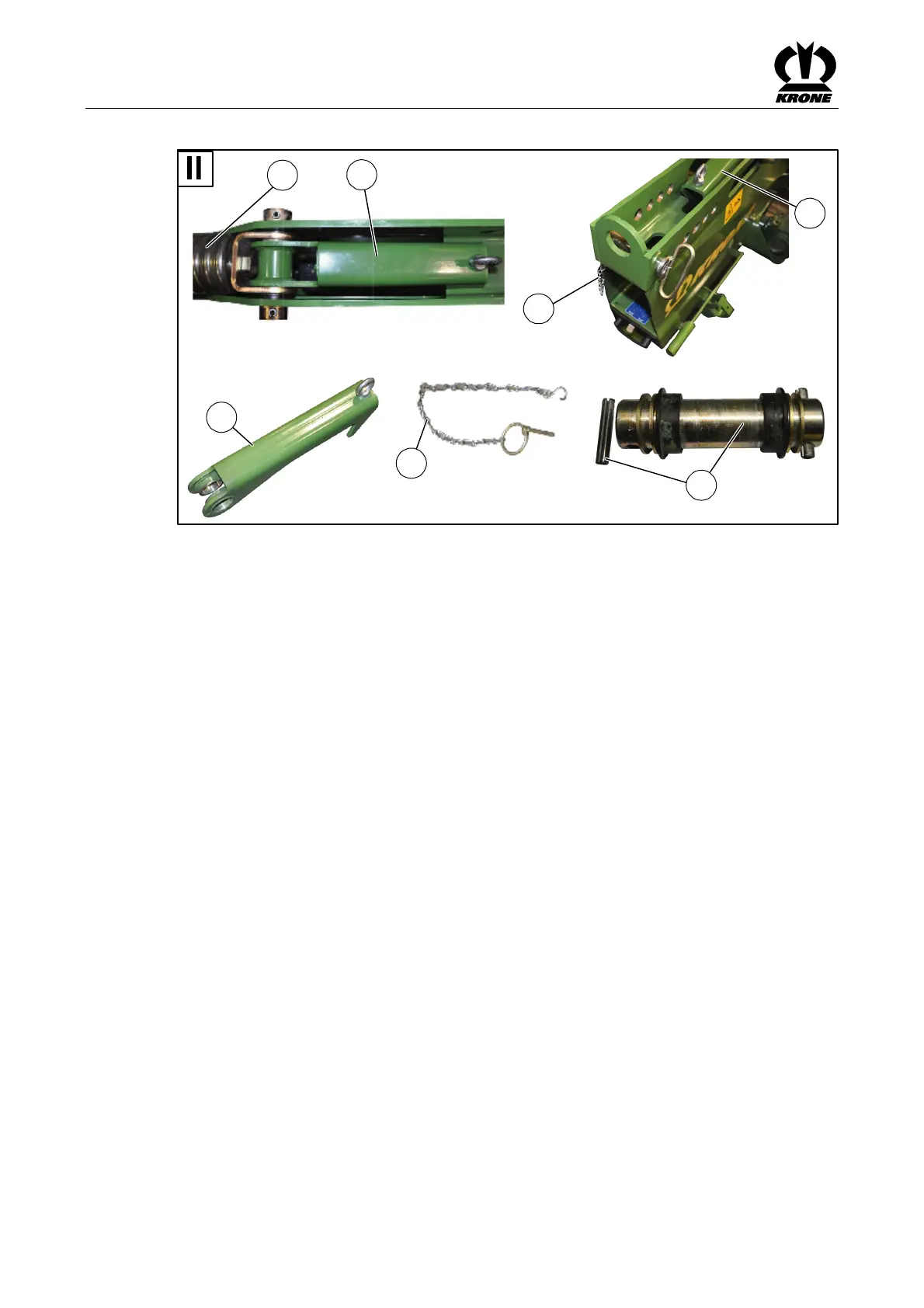

Fig. 49
• Remove the parts (C) out of the headstock and put down the compensation spring on the
machine
• Remove the adjustment lever (a) and put it aside
• Remove the locking chain with cotter pin from the headstock and put it aside
