Special equipment
81
Pos: 33.14 /Beip acks/EasyCut/Hydr aulische F ederentlastung/V ormontierten Z ylinder montieren @ 60\mod_12 97688919919_78. docx @ 55996 1@ 3 @ 1

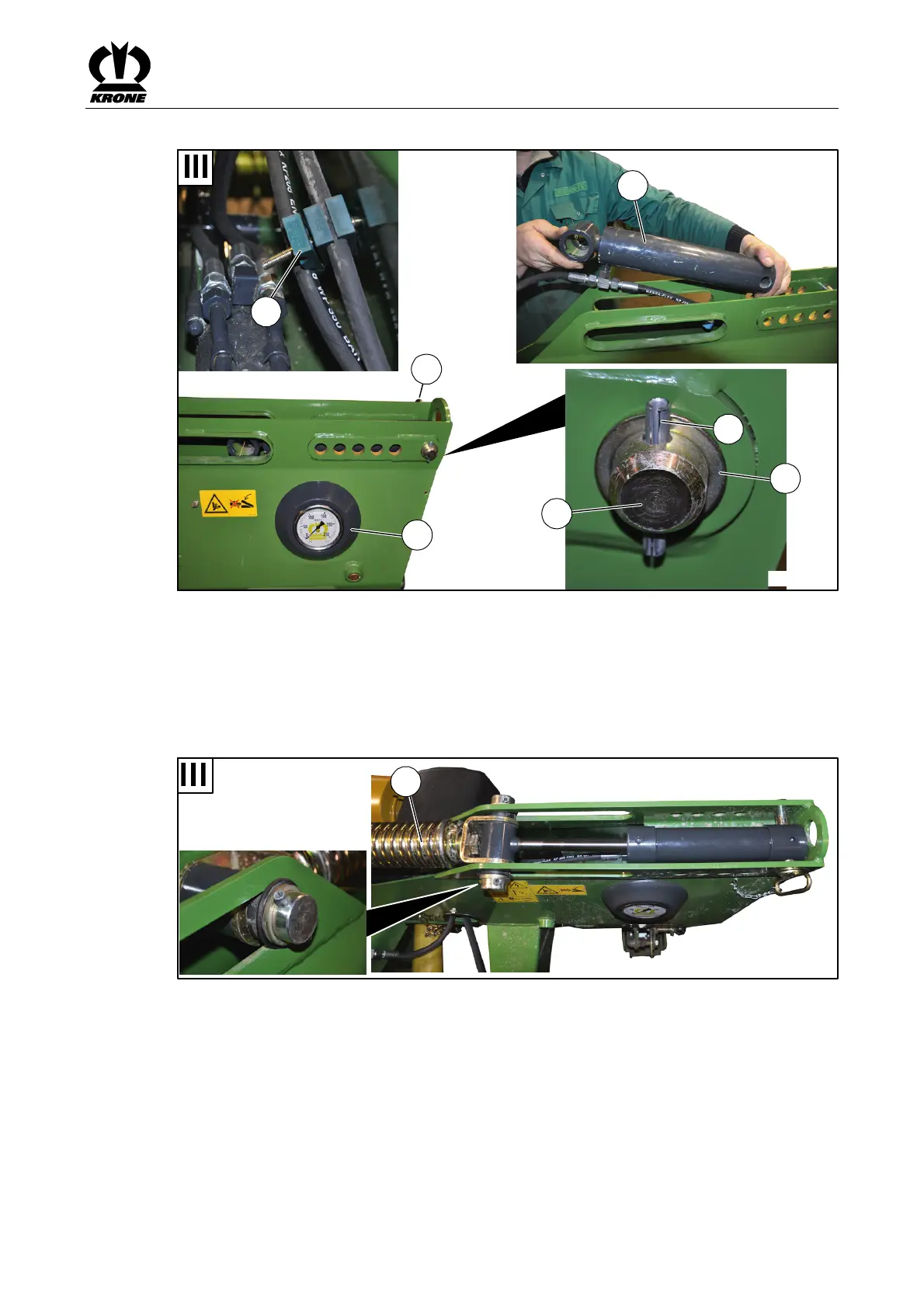

Installing pre-assembled cylinder
EC-376-0
1
9
b
a
1
2
b
Fig. 50
• Remove upper hose clamp half (a)
• Install pre-assembled cylinder (1) (b) in the rear hole using available pin
• Secure pin (b) with washer (9) and cotter pin (8)
• Screw pressure gauge (2) onto three-point block
Pos: 33.15 /Beip acks/EasyCut/Hydr aulische F ederentlastung/O hneC V/Entlas tungsfeder anschr auben @ 93\ mod_1327494 642919_78.doc x@ 790277 @ @ 1
Screw on the Compensation Spring
EC-403
a
Fig. 51
• Install the compensation spring (a)
Pos: 33.16 /BA/--- ------ ------Seitenumbruch---- ------------ @ 0\m od_1196175311 226_0.docx @ 4 165 @ @ 1
To Next Page
