Installing double locking block and connecting hydraulic hoses
EC-378-0
a
3
4 7 6 5
c
d

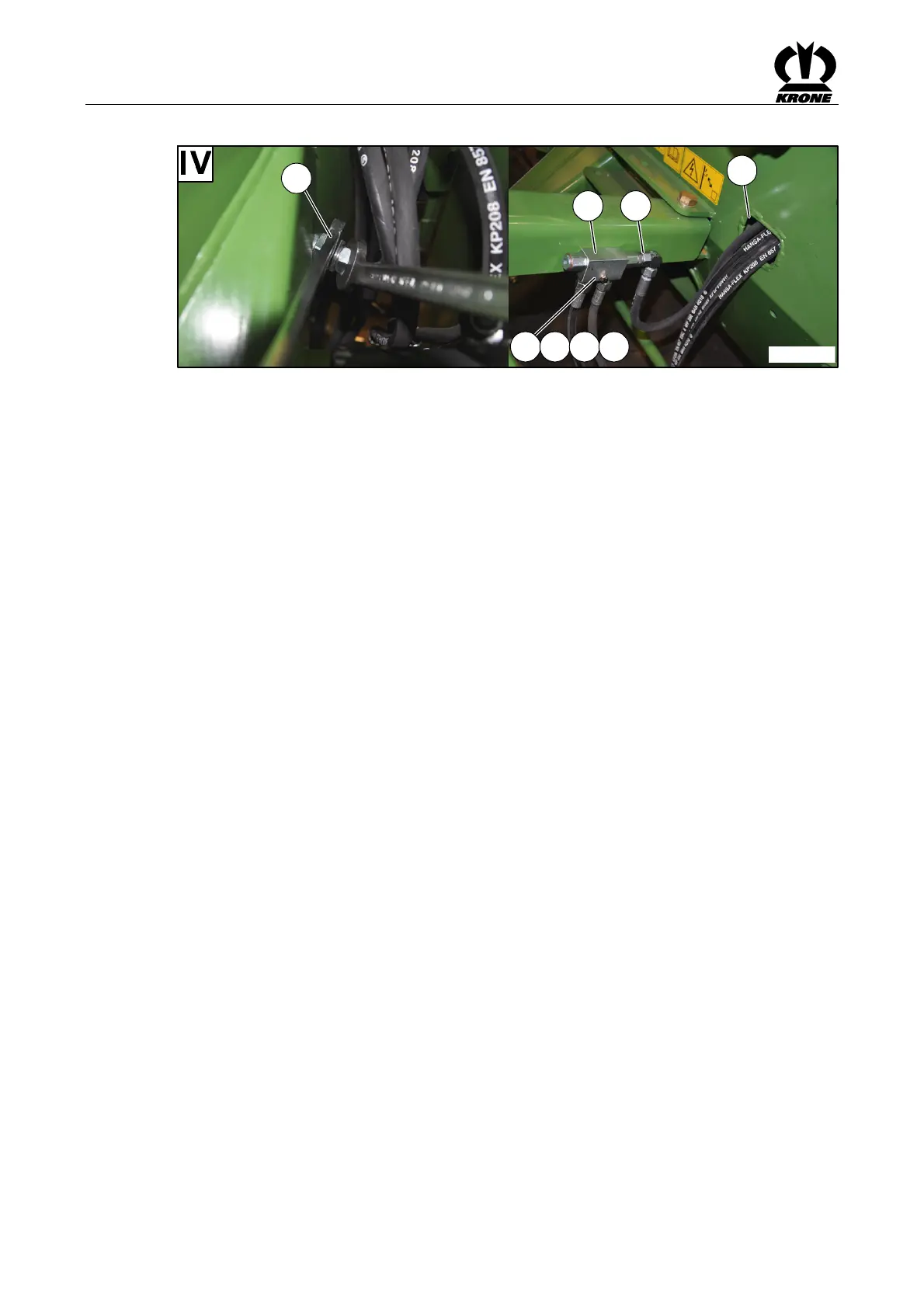

Fig. 52
• Screw pre-assembled double locking block (3) onto the three-point block using bolt (4),
washer (7), detent edge washer (6) and nut (5)
• Screw hydraulic hose (90 degrees) onto the pressure gauge connection
Always counter with a 2nd wrench (a) on the pressure gauge connection
• Install upper hose clamp half
• Feed the longer hydraulic hose of the pre-assembled cylinder through the opening (c) in
the three-point block and attach to the double locking block (d)
