KStar UDC9101S One - Relay Dry Contact Card

22
Relaycard
MinidrycontactcardisusedfoprovidingtheinterfaceforUPSperipheralmonitoring.The
contactsignalscanreflectUPSrunningstatus.Thecardisconnectedtoperipheralmonitoring
devicesviaterminalboardtofacilitatetheeffectivemonitoringofthereal-timestatusofUPS
andtimelyfeedbackthestatustomonitorwhenabnormalsituationoccurs(suchasUPSfailure,
mainsinterruption,UPSbypassandect.).ItisinstalledintheintelligentslotoftheUPS.

Therelaycardincludes6outputportsandoneinputport.Pleaserefertothefollowingtablefor
detail.

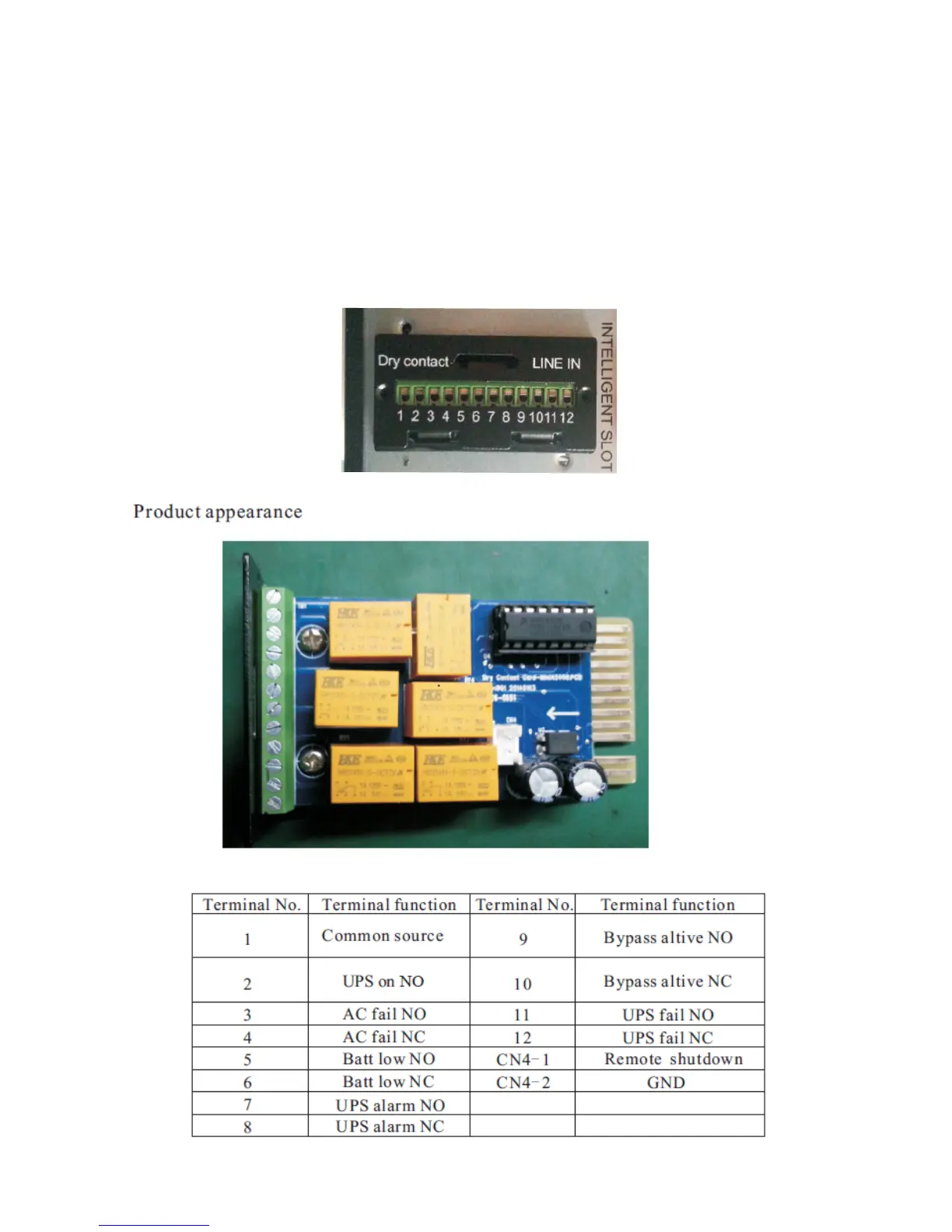

Pinsdefinitionofconnectingterminalontheboard
