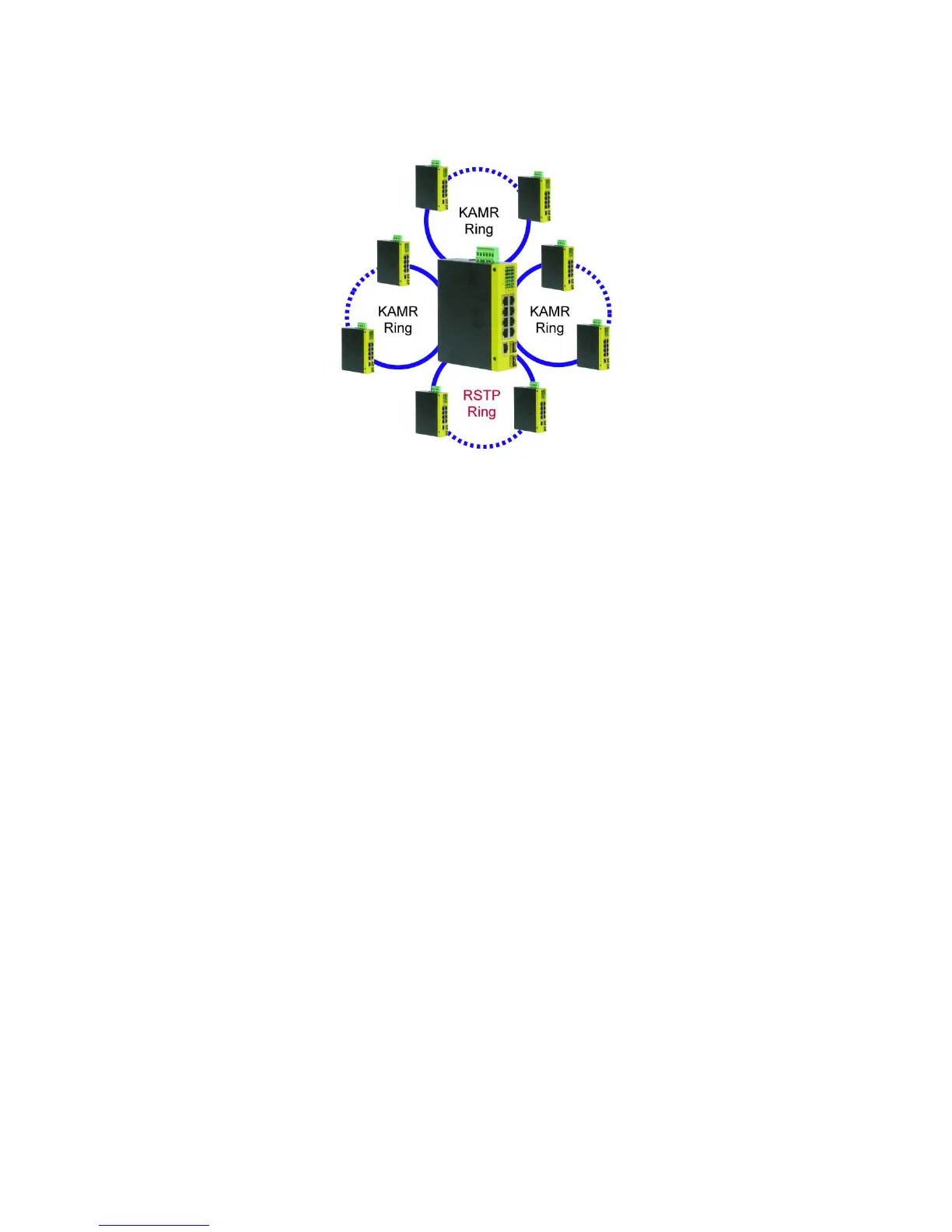

The following figure shows one switch is configured to support three redundant rings and one RSTP
ring at the same time.
4.2 Redundant Ring Applications with industrial standard RSTP protocol
It also can be done to support a ring connection using industrial standard RSTP function and establish a backup
path. In case that any link failure occurs, the backup path can link up immediately to recover the network
operation.
-34-
