2.3 DIN-Rail Mounting
In the product package, a DIN-rail bracket is provided for mounting the switch in a industrial DIN-rail
enclosure.

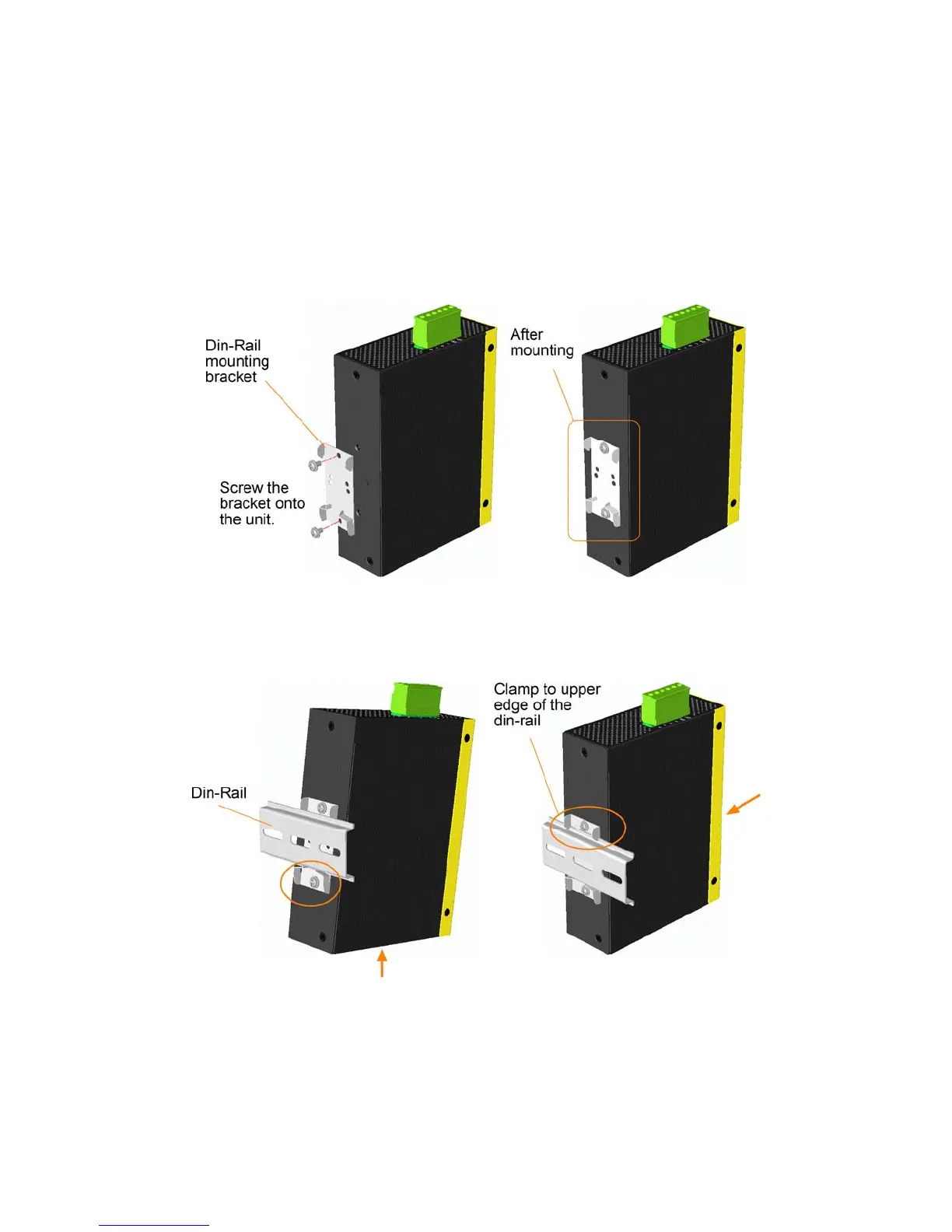

The steps to mount the switch onto a DIN rail are:
1. Install the mounting bracket onto the switch unit as shown below:
2. Attach bracket to the lower edge of the DIN rail and push the unit
upward a little bit until the bracket can
clamp on the upper edge of the DIN rail.
3. Clamp the unit to the DIN rail and make sure it is mounted securely.
