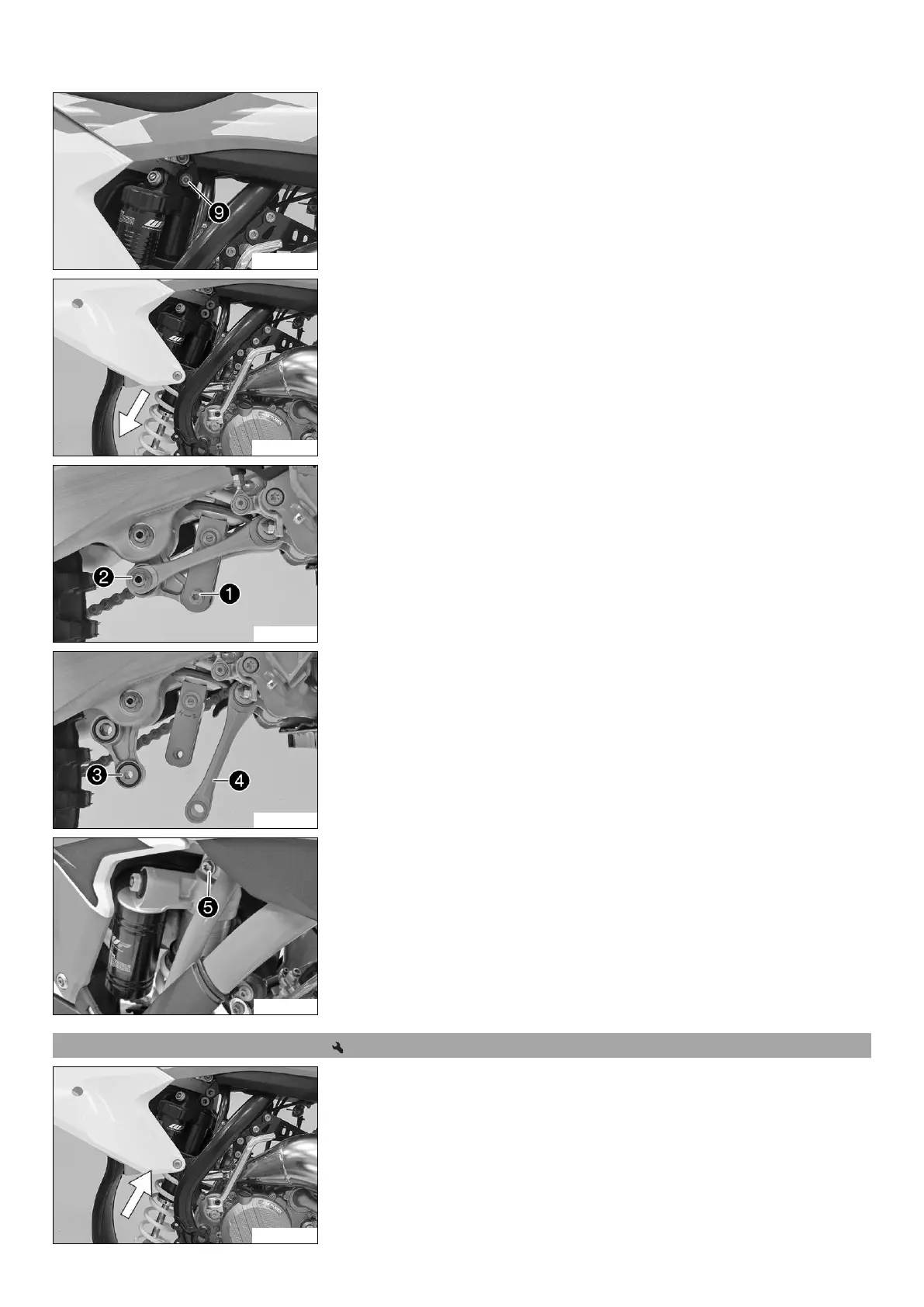

KTM 125 SX - 11.19 Installing the Shock Absorber

11 SERVICE WORK ON THE CHASSIS 54
M01151-10
–
Hold the shock absorber and remove screw

.
M01152-01
– Carefully take the shock absorber out of the vehicle toward the bottom.
B02098-10
(All 250/300 models)
–
Remove screw

.
–
Remove fitting

.
B02099-10
–
Press angle lever

toward the rear.
–
Press linkage lever

downward.
B02100-10
–
Remove screw

.
– Raise the swingarm slightly and remove the shock absorber in upward direction.
11.19 Installing the shock absorber
M01152-02
Main work
(All 125/150 models)
– Carefully position the shock absorber into the vehicle from the bottom.
