SERVICE WORK ON THE CHASSIS 12
69
V02166-10
–

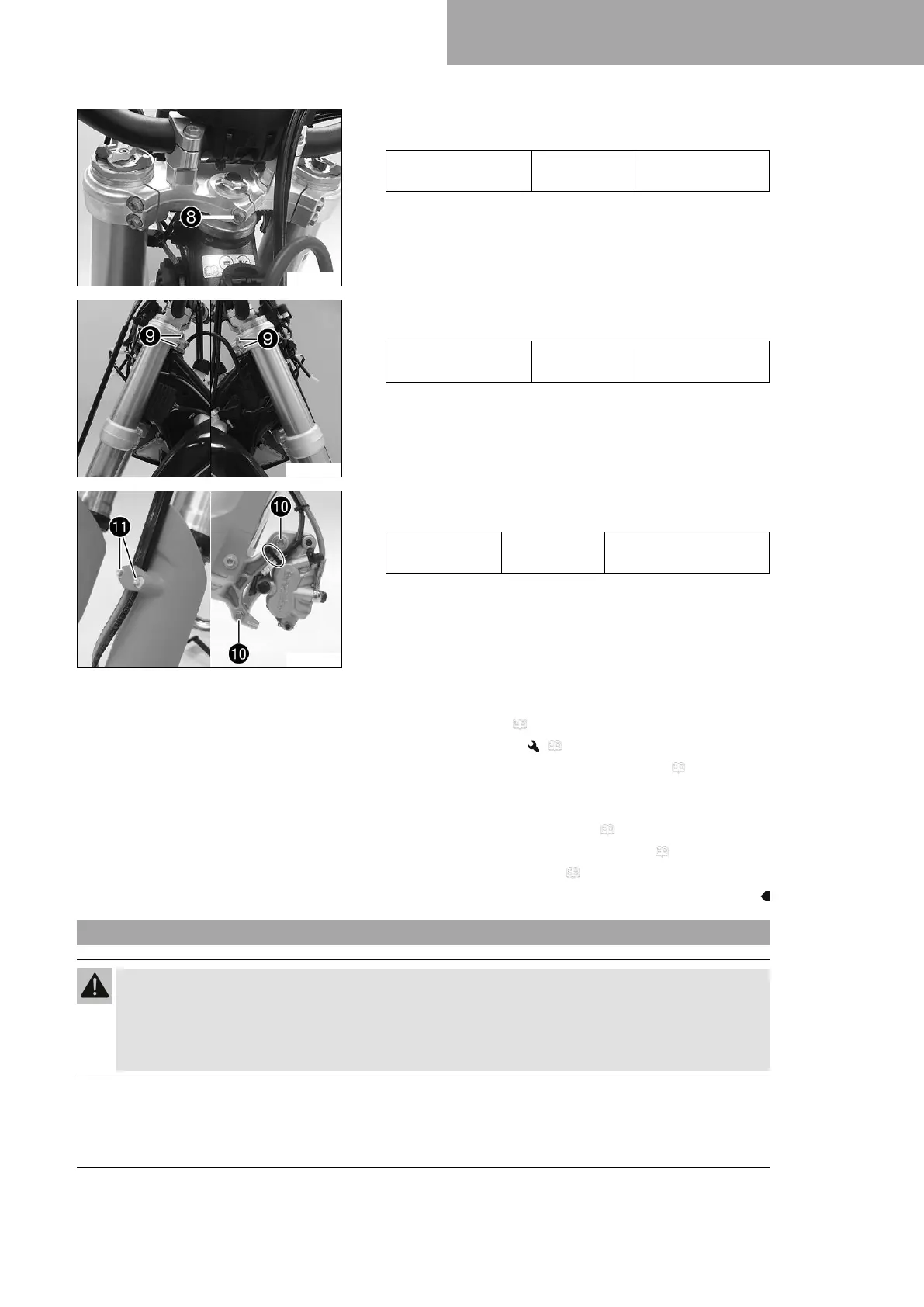

Tighten screw
8
.
Guideline
Screw, top steering
stem
M8 20 Nm (14.8 lbf ft)
S03525-10
–
Tighten screws
9
.
Guideline
Screw, top triple
clamp
M8 20 Nm (14.8 lbf ft)
E00375-13
–
Position the brake caliper, and mount and tighten screws
bk
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
bl
.
Finishing work
– Mount the handlebar cushion.
– Install front fender. ( p. 71)
– Install the front wheel. ( p. 105)
– Install the headlight mask with the headlight. ( p. 118)
– Check that the wiring harness, throttle cables, and brake and
clutch lines can move freely and are routed correctly.
– Check steering head bearing play. ( p. 69)
– Remove the motorcycle from the lift stand. ( p. 63)
– Check the headlight setting. ( p. 120)
12.11 Checking steering head bearing play
Warning
Danger of accidents Incorrect steering head bearing play impairs the handling characteristic and dam-
ages components.
– Correct incorrect steering head bearing play immediately. (Your authorized KTM workshop will be glad
to help.)
