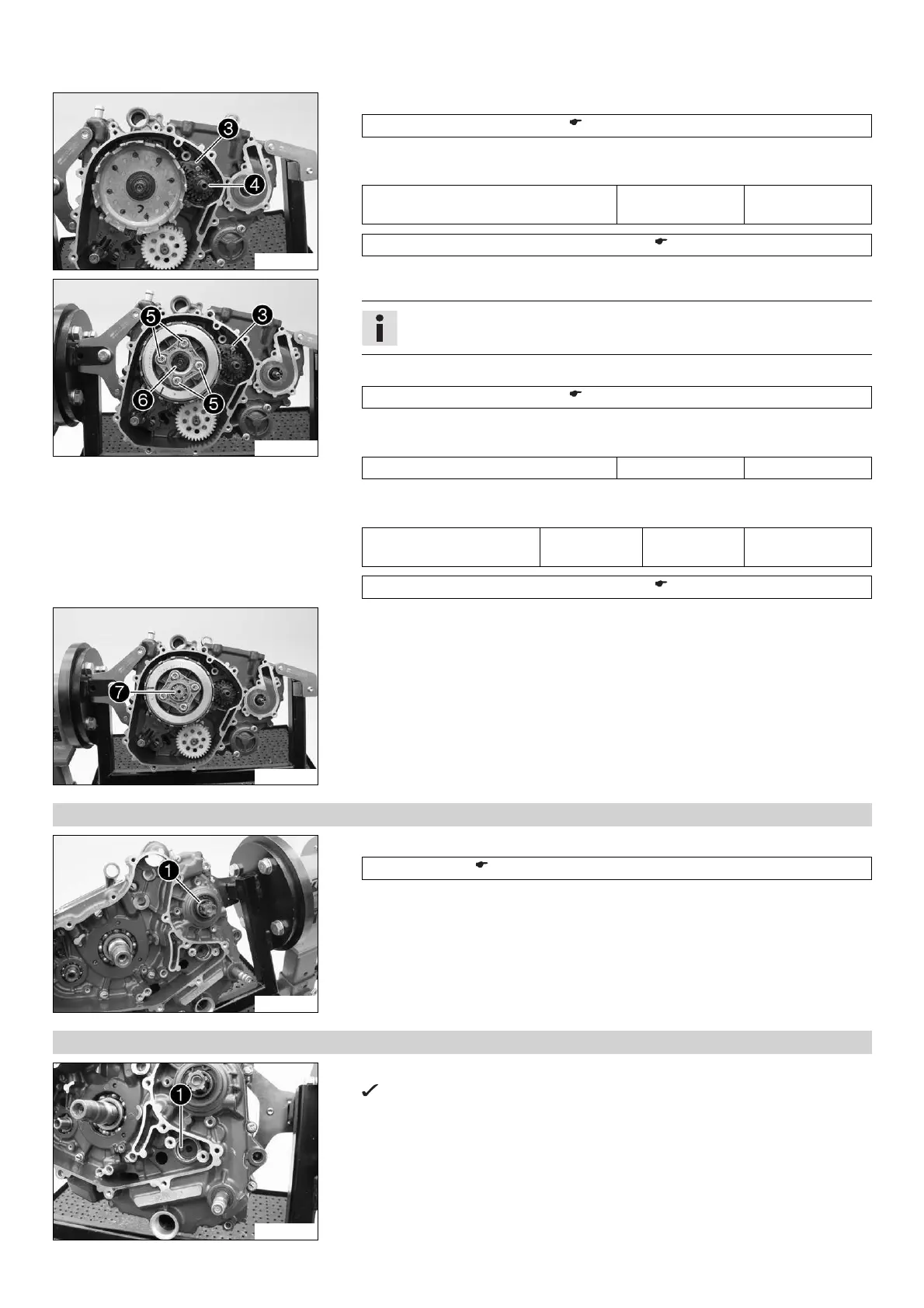

16 ENGINE 181
305860-11
– Lock the clutch basket and primary gear using special tool 3.
Gear segment (90129081100) ( p. 259)
– Mount and tighten nut 4 with the washer.
Guideline
Nut, primary gear M14 55 Nm
(40.6 lbf ft)
Castle nut wrench; ½" drive (90129021000) ( p. 257)
305863-10
– Position the preassembled inner clutch hub.
Info
Make sure that the upper clutch facing disc is offset by one notch.
– Lock the clutch basket and primary gear using special tool 3.
Gear segment (90129081100) ( p. 259)
– Tighten screws 5.
Guideline
Screw, clutch spring M6 10 Nm (7.4 lbf ft)
– Mount and tighten nut 6 with the washer.
Guideline
Nut, inner clutch hub M14LH 60 Nm
(44.3 lbf ft)
Loctite
®
243â„¢
Castle nut wrench; ½" drive (90129021000) ( p. 257)
305864-10
– Mount bearing 7.
16.5.49 Installing the spacer (200 Duke)
305857-10
– Grease the shaft seal ring of the countershaft before mounting.
Long-life grease ( p. 250)
– Mount spacer 1.
16.5.50 Installing the gear position sensor (200 Duke)
305856-11
– Mount the contact springs and contact bolt 1.
The rounded sides of the contact pins face the sensor.
