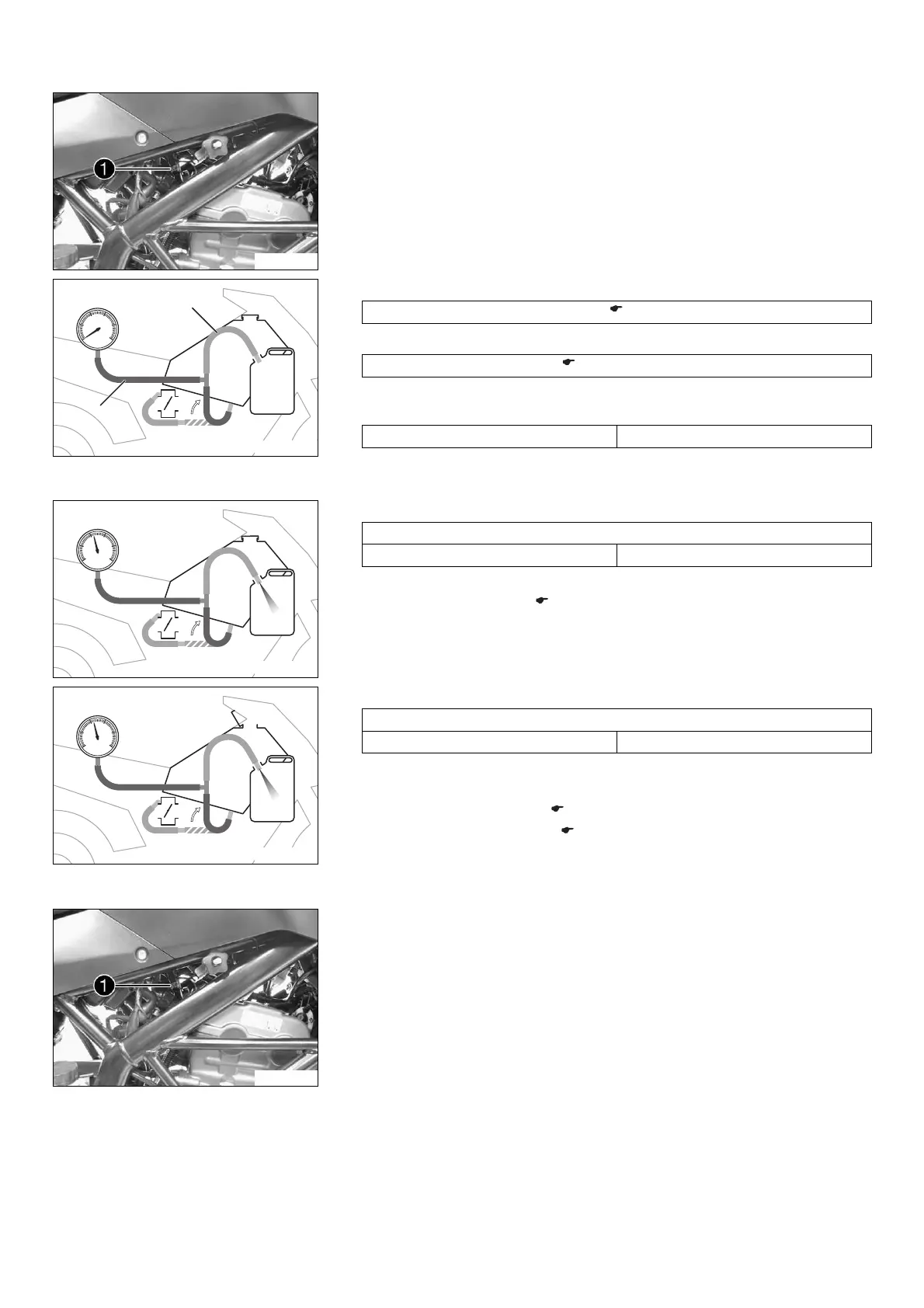

11 FUEL TANK, SEAT, TRIM 49
304895-10
– Detach the fuel line with a suitable tool.
– Push back hose clamp 1 and pull off the fuel line.
400926-10
– Mount special tool 2.
Pressure testing tool (61029094000) ( p. 254)
– Mount special tool 3 with the nozzle code 0,45.
Testing hose (61029093000) ( p. 254)
– Position the hose end in a fuel can.
Guideline
Minimum size of fuel can 10 l (2.6 US gal)
– Switch the ignition on.
– Execute "Actuator test" > "Fuel pump relay function test".
400927-01
– Check the fuel pressure with the filler cap closed.
Fuel pressure
When the fuel pump is active 2.5… 2.9 bar (36… 42 psi)
» If the specification is not reached:
– Open the filler cap. ( p. 38)
– Check the tank air vent system.
400928-01
– Check the fuel pressure with the filler cap open.
Fuel pressure
When the fuel pump is active 2.5… 2.9 bar (36… 42 psi)
» If the specification is not reached:
– Check that the fuel line is clear.
– Change the fuel filter. ( p. 50)
– Replace the fuel pump. ( p. 51)
– Stop the "Function test of fuel pump control" actuator test by pressing the "Quit" but-
ton.
– Remove the special tools.
304895-10
– Connect the fuel line and position hose clamp 1.
– Remove the tool.
