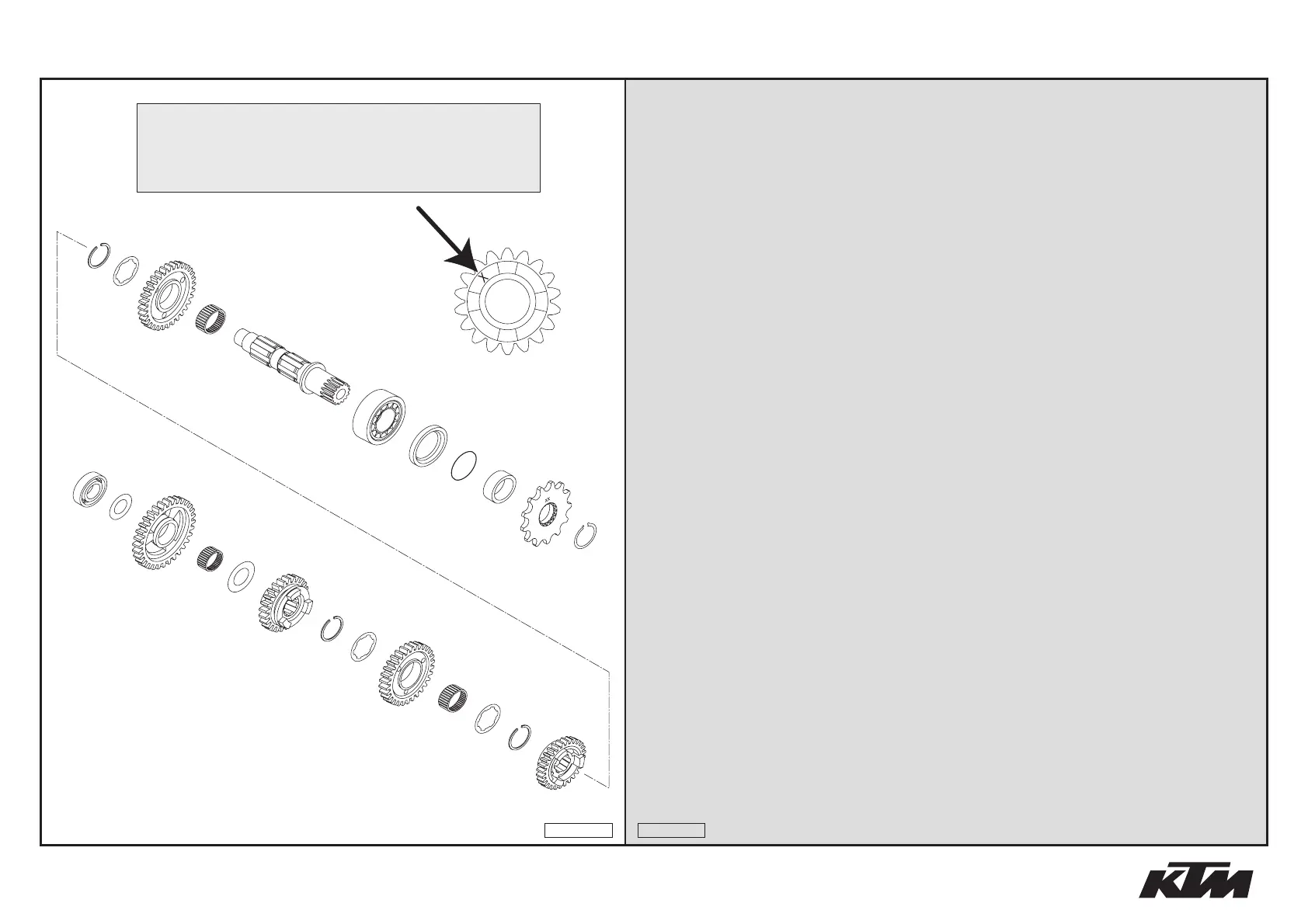

GETRIEBE II - ABTRIEBSWELLE » TRANSMISSION II - COUNTERSHAFT

250-300 EXC / 2005

* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

7 548.33.007.000 ABTRIEBSWELLE 2003 COUNTERSHAFT 2003 1

11 548.33.111.000 LOSRAD 1.G 30-Z "1E30" IDLER GEAR 1ST G. 30-T "1E30" 1

12 548.33.112.000 LOSRAD 2.G 26-Z "2E26" IDLER GEAR 2ND G. 26-T "2E26" 1

13 548.33.113.000 LOSRAD 3.G 23-Z "3E23" IDLER GEAR 3RD G. 23-T "3E23" 1

14 548.33.114.000 SCHIEBERAD 4.G 20-Z "4E20" SLIDING GEAR 4TH G.20-T "4E20" 1

15 548.33.115.000 SCHIEBERAD 5.G 23-Z "5E23" SLIDING GEAR 5TH G.23-T "5E23" 1

16 546.33.096.000 AXIALSICHERUNG 25X1,64 AXIAL-CIRCLIP 25X1,64 3

21 0405 202413 NADELKRANZ K20X24X13 NEEDLE BEAR. K20X24X13 1

22 0405 242812 NADELKRANZ K24X28X11,9 GETEILT NEDDLE BEAR. K24X28X11,9 DIV. 1

23* 0405 222613 NADELKRANZ K 22X26X13 TN NEEDLE BEAR. K 22X26X13 TN 1

25 548.33.025.000 RILLENKUGELL.TM-SC05C20C4 NTN BALL BEARING TM-SC05C20C4 NTN 1

26 0625 062035 RILLENKUGELL. 6203 JR2 C3 BALL BEARING 6203 JR2 C3 1

28 520.33.096.000 SICH.RING DIN0471-25X1,64SD LOCK RING DIN0471-25X1,64SD 1

29 500.33.029.013 KETTENRAD 13-Z SPROCKET 13-T 1

29 500.33.029.014 KETTENRAD 14-Z SPROCKET 14-T X

29 500.33.029.015 KETTENRAD 15-Z SPROCKET 15-T X

30 590.33.030.000 ANLAUFSCHEIBE 25,2X32X1,5 STOP DISC 25,2X32X1,5 2

31 560.33.030.000 ANLAUFSCHEIBE 17,2X30X1 STOP DISC 17,2X30X1 1

32 548.33.032.011 DISTANZHÜLSE ABTRIEB 2003 SPACER SLEEVE DRIVE END 2003 1

33 0760 324565 WELLENDICHTRING 32X45X6,5 BTSL SHAFT SEAL RING 32X45X6,5 BTSL 1

35* 0770 248022 O-RING 28,80X2,20 P431 NBR 70 O-RING 28,80X2,20 P431 NBR 70 1

41 590.33.080.000 SCHEIBE 20X32X1 SHIM 20X32X1 1

43 503.33.043.000 ANLAUFSCHEIBE 25,2X32X1 STOP DISC 25,2X32X1 1

05-548.33.4

ACHTUNG !!!

Bei Bestellung von Getrieberädern, Markierung beachten.

CAUTION !!!

When ordering transmission gears, check marking.

05-548.33.2
