3 WORK
24
H02218-10

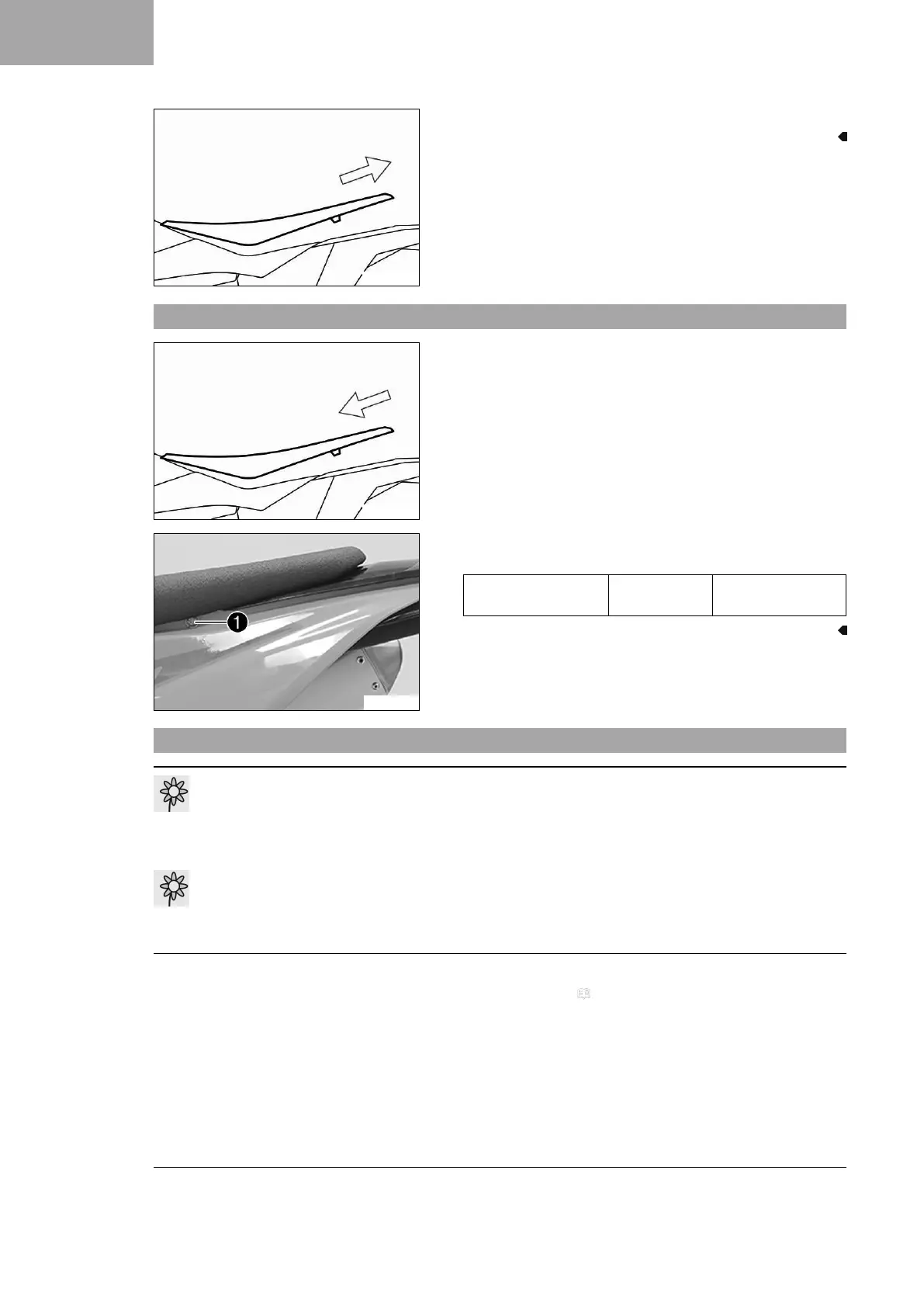

– Raise the rear of the seat, pull the seat back, and lift it off.
3.12 Mounting the seat
H02218-11
–
Mount the front of the seat on the collar bushings of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure the seat is correctly latched in place.
S03480-10
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
3.13 Removing the 12-V battery
Note
Environmental hazard 12 V batteries contain environmentally hazardous materials.
– Do not dispose of 12 V batteries as household waste.
– Dispose of 12 V batteries at a collection point for used batteries.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Preparatory work
– Remove the seat. ( p. 23)
