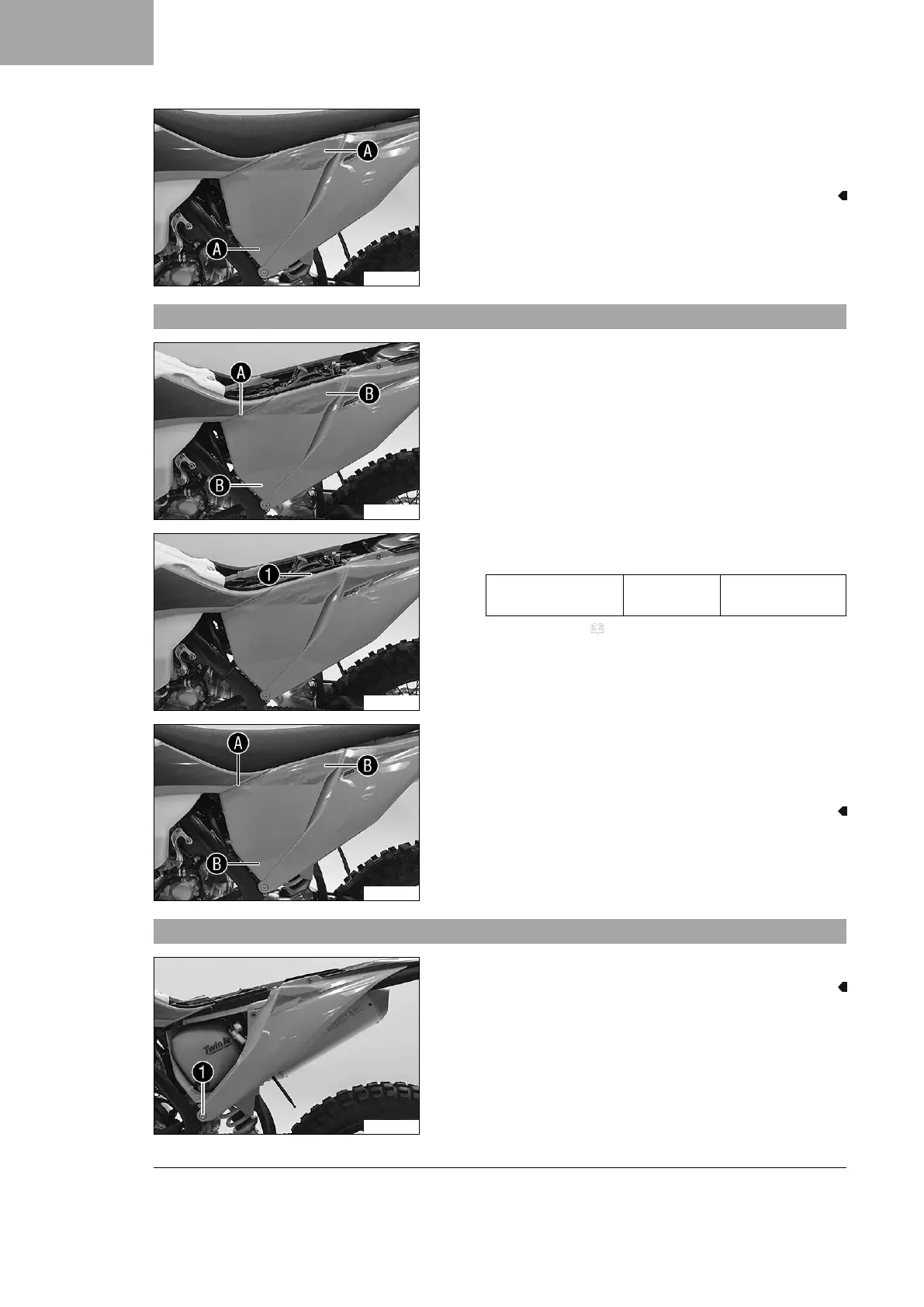

3 WORK
32
V01816-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
laterally and take
it off at the front.
3.20 Installing the air filter box cover
V01815-12
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
V01815-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
– Mount the seat. ( p. 24)
V01816-11
Condition
The air filter box cover is not secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
3.21 Removing the rear left side cover
V01871-10
–
Remove screw
1
and take off fairing part to the front.
