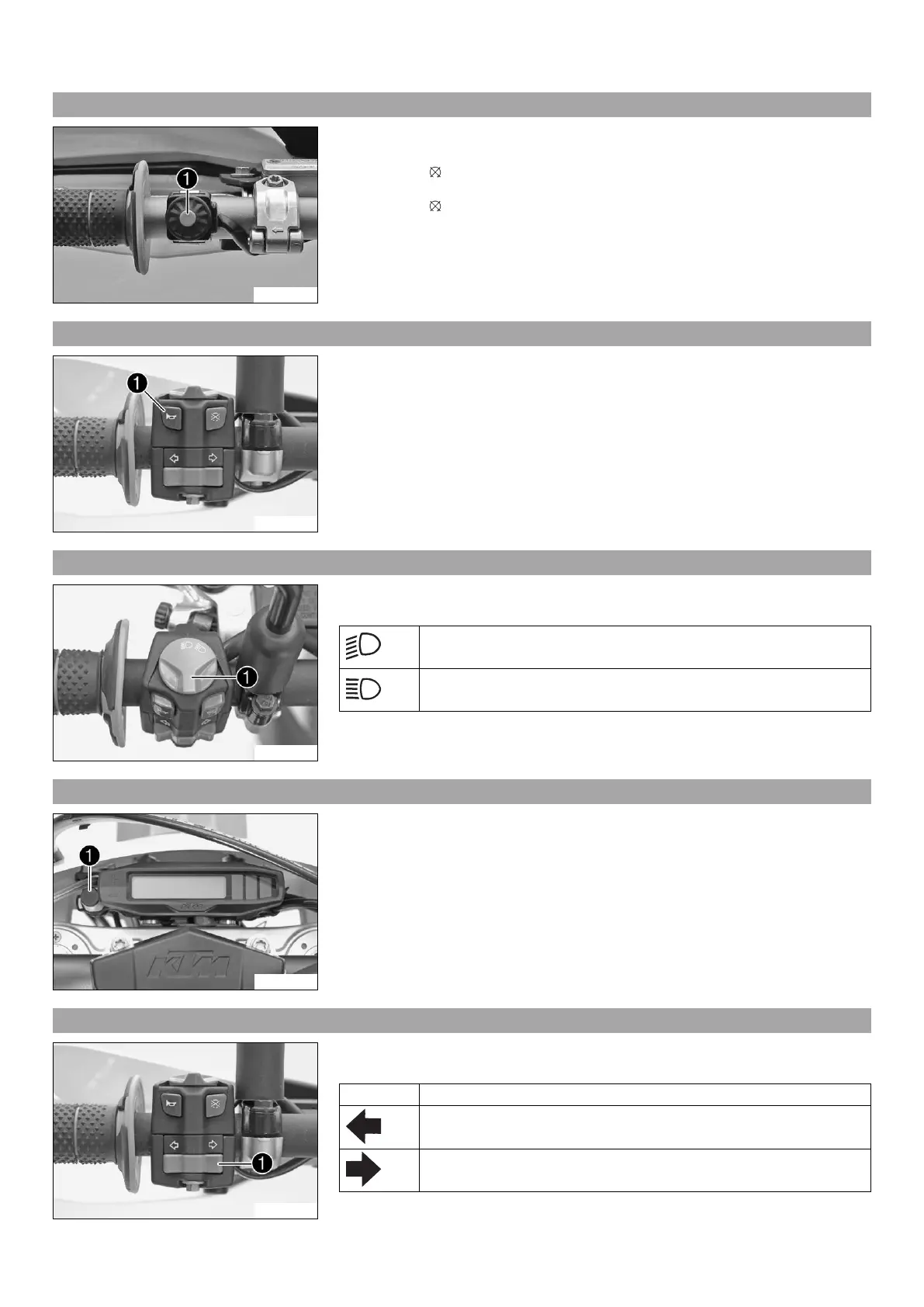

6.5 Kill switch (All XC-W models)
B01144-10
The kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and
the engine can be started.
• Kill switch pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
6.6 Horn button (All EXC models)
102044-11
The horn button
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
6.7 Light switch (All EXC models)
102045-10
The light switch
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – Light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
6.8 Light switch (All XC-W models)
102047-10
The light switch
is on the right of the speedometer.
Possible states
• Light off – Light switch is pressed in up to the stop. In this position, the light is
switched off.
• Light on – Light switch is pulled out to the stop. In this position, the low beam
and tail light are switched on.
6.9 Turn signal switch (All EXC models)
102044-12
Turn signal switch
is fitted on the left side of the handlebar.
Possible states
Turn signal off – The turn signal switch is in the central position.
Left turn signal, on – The turn signal switch is turned to the left.
Right turn signal, on – The turn signal switch is turned to the right.
