KTM 250 sx 1994 User Manual

5-11C
Replace outer clutch hub

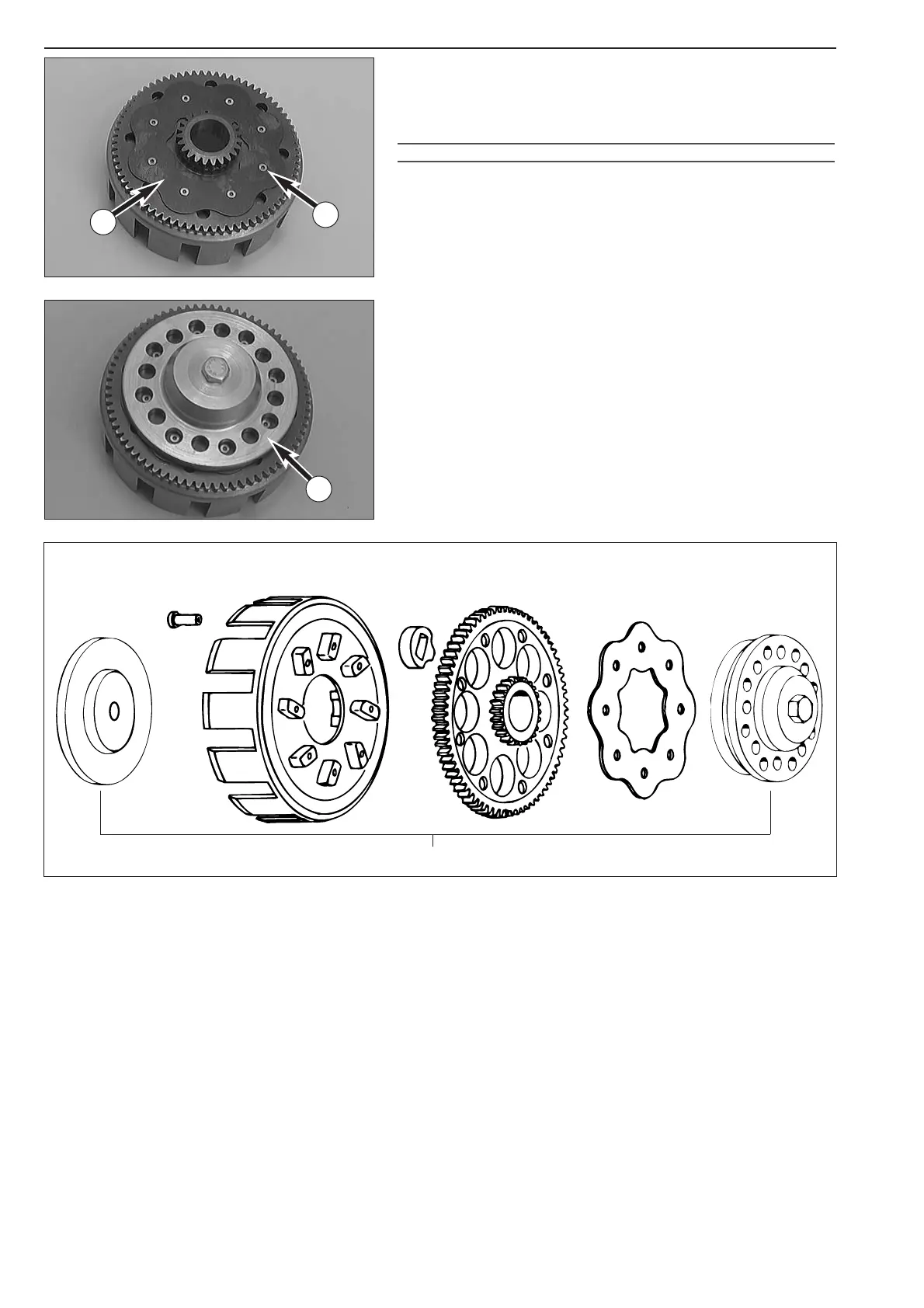

– Drill open the clutch rivets bl in area of retaining bracket bm and
remove parts.
– Check 8 absorbing elements
bn for signs of mechanical damage,
replace all 8 where applicable.
!
CAUTION
!
THE ABSORBING ELEMENTS ARE WIDER THAN THE PRIMARY GEAR CROWN
. TO ENSURE
THAT THE OUTER CLUTCH HUB
8 AND RETAINING BRACKET ARE POSITIONED DIRECTLY
ON THE PRIMARY GEAR CROWN
bo, THE PARTS MUST BE HELD IN POSITION UNDER
TENSION WITH THE CLUTCH RIVETTING TOOL
C WHILE RIVETING.
11
12
11
13
C
14
12
8
C

KTM 250 sx 1994 Specifications

General

Engine Type	Single-cylinder, two-stroke
Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Cooling System	Liquid-cooled
Ignition System	CDI
Lubrication	Premix
Starting System	Kick start
