KTM 250 SX 2018 User Manual

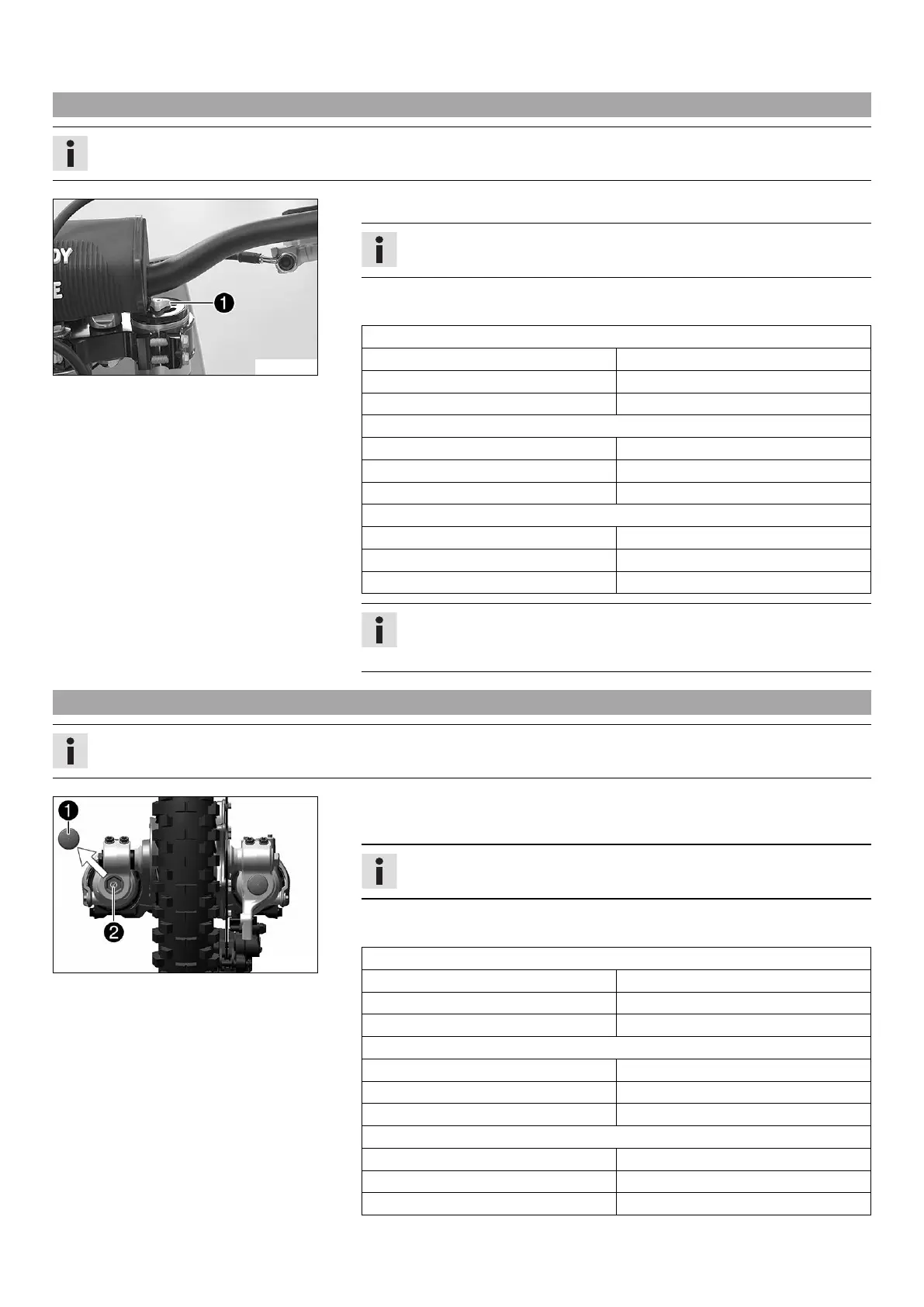

10 TUNING THE CHASSIS 39
10.14 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
F00008-10
–
Turn adjusting screw
1
clockwise all the way.
Info
Adjusting screw
1
is located at the upper end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping (250 SX EU)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Compression damping (250 SX US)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Compression damping (All XC models)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01100-10
–
Remove protection cap
1
.
–
Turn adjusting screw
2
clockwise all the way.
Info
Adjusting screw
2
is located at the lower end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping (250 SX EU)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Rebound damping (250 SX US)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
Rebound damping (All XC models)
Comfort 17 clicks
Standard 12 clicks
Sport 7 clicks
