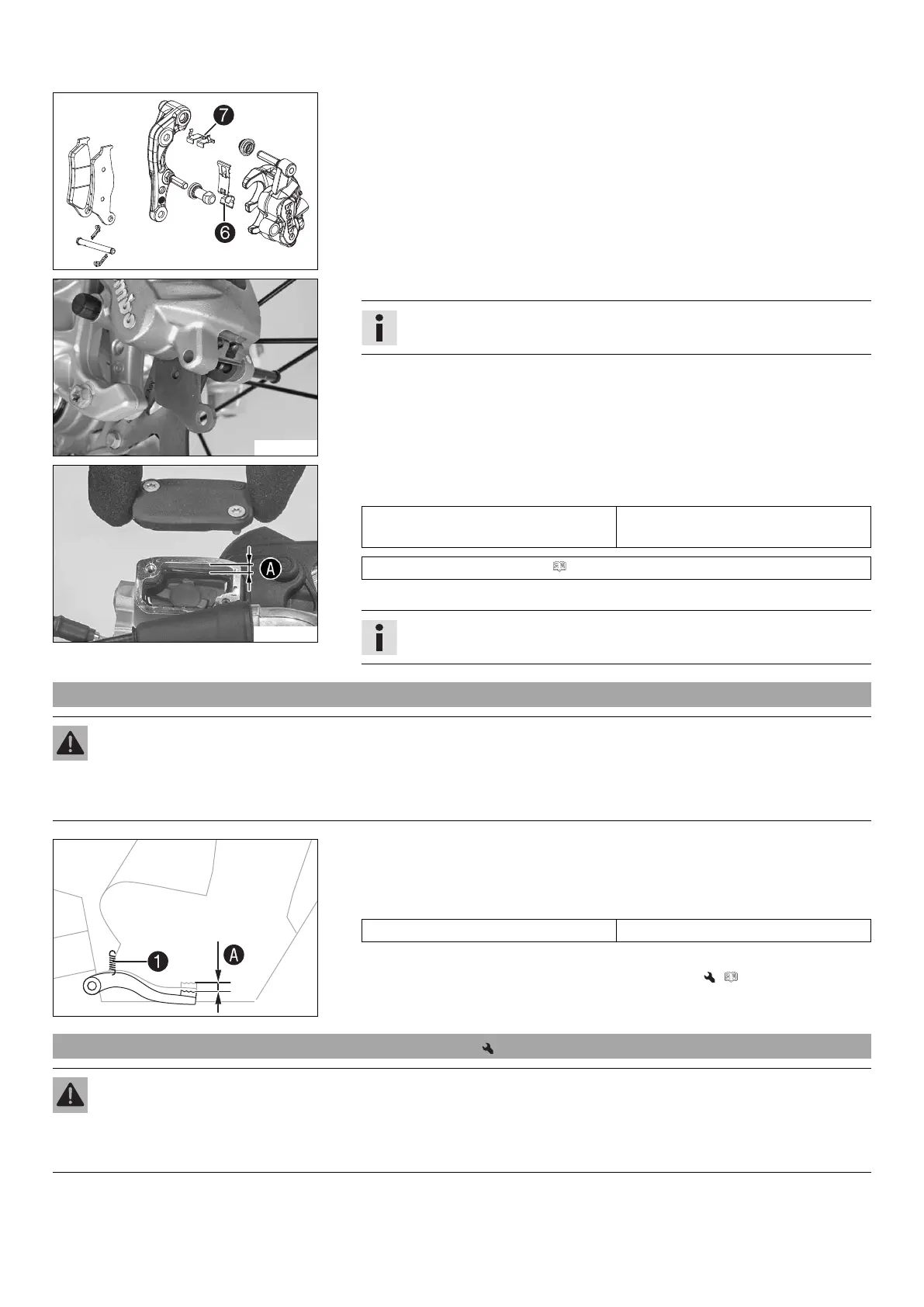

12 BRAKE SYSTEM 71
100397-01
–
Check that leaf spring
6
in the brake caliper and sliding plate
7
in the brake
caliper support are seated correctly.
101738-01
– Insert the new brake linings, insert the pin, and mount the cotter pins.
Info
Always change the brake linings in pairs.
– Operate the hand brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
K00521-10
–
Correct the brake fluid quantity to level
A
.
Guideline
Level
A
(brake fluid level below reser-
voir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 119)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately with water.
12.8 Checking the free travel of foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402026-10
–
Disconnect spring
1
.
– Move the foot brake lever back and forth between the end stop and the contact to
the foot brake cylinder piston and check free travel
A
.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever. ( p. 71)
–
Reconnect spring
1
.
12.9 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear brake.
– Set the free travel on the foot brake lever in accordance with the specification.
