KTM 250 SX 2019 User Manual

SERVICE WORK ON THE CHASSIS 11
61

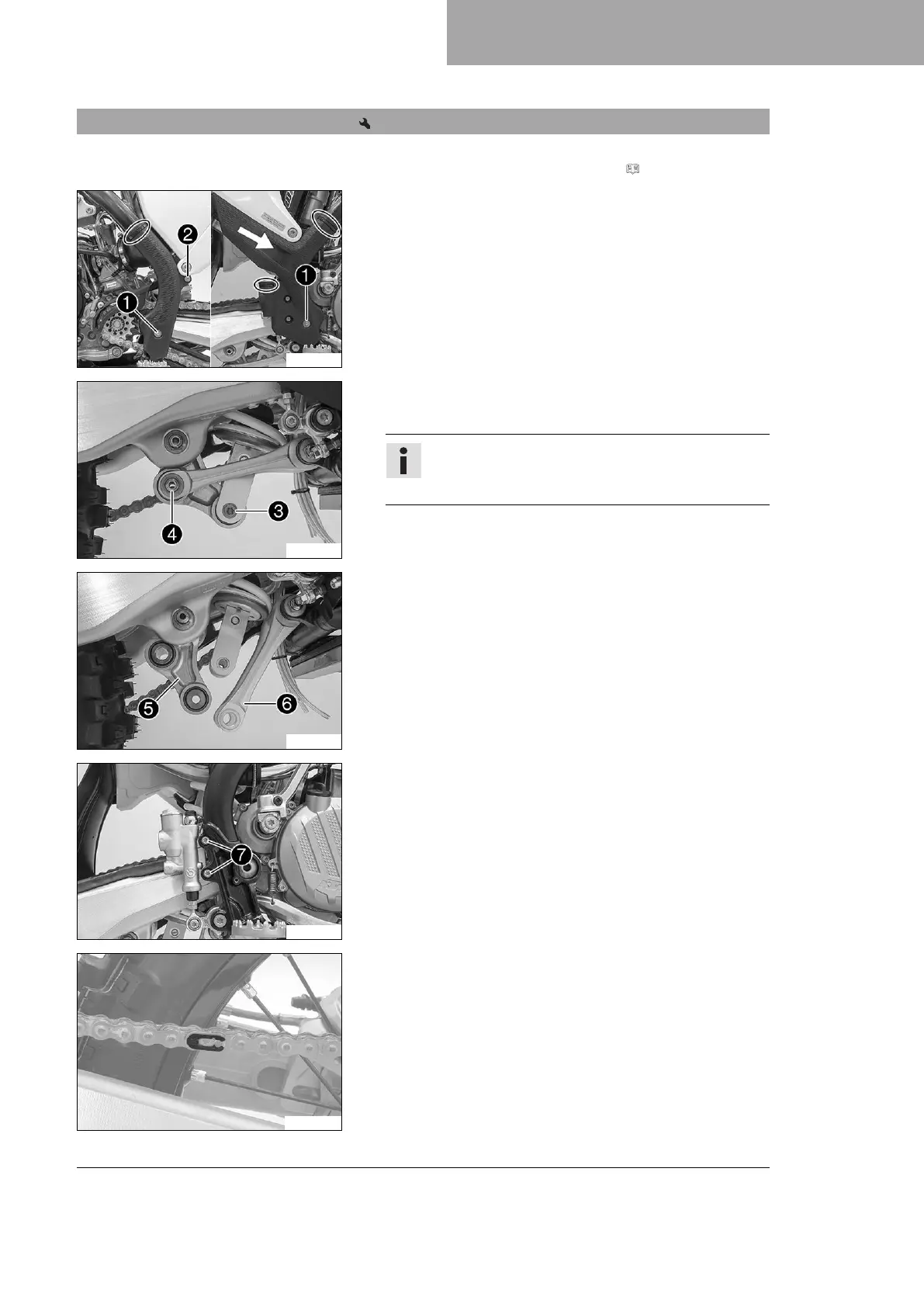

11.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 52)
K01144-10
Main work
– Remove the cable ties.
–
Remove screws
1
with the washers.
–
Remove screw
2
.
– Take off the left frame protector.
– Push the right frame protector to the front and take off at the
bottom.
K01134-10
–
Remove screw
3
.
–
Remove fitting
4
.
Info
Raise the wheel slightly to be able to remove the screws
more easily.
K01136-10
–
Press angle lever
5
toward the rear.
–
Press linkage lever
6
downward.
K01137-10
–
Remove screws
7
and pull foot brake cylinder off the push
rod.
M01149-01
– Remove the connecting link of the chain.
– Take off the chain.

KTM 250 SX 2019 Specifications

General

Displacement	249 cc
Bore x Stroke	66.4 mm x 72 mm
Starter	Kickstarter
Transmission	5-speed
Ignition	Kokusan
Ground Clearance	375 mm
Seat Height	950 mm
Engine Type	2-stroke
Clutch	Wet, multi-disc clutch
Frame Type	Central double-cradle type 25CrMo4 steel
Front Suspension	WP XACT 48 mm fork
Rear Suspension	WP XACT shock absorber with linkage
Front Brake	Disc brake, 260 mm
Rear Brake	Disc brake, 220 mm
Fuel Tank Capacity	7.5 liters
