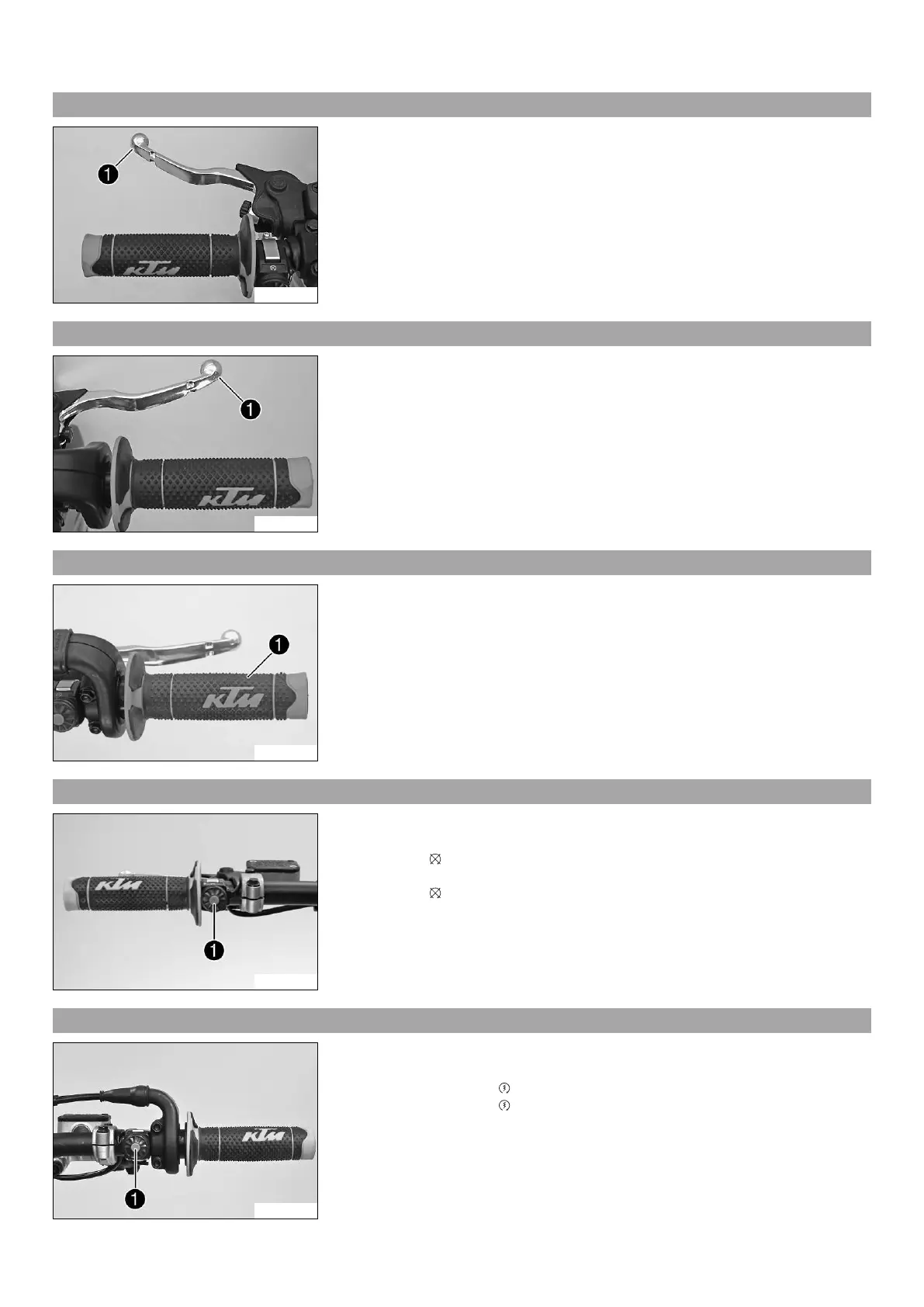

6 CONTROLS 11
6.1 Clutch lever
C00214-10
The clutch lever
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
C00215-10
Hand brake lever
is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
101760-10
The throttle grip
is fitted on the right side of the handlebar.
6.4 Kill switch
C00393-10
Kill switch
is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and
the engine can be started.
• Kill switch pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
6.5 Electric starter button
C00453-10
Electric starter button
is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
