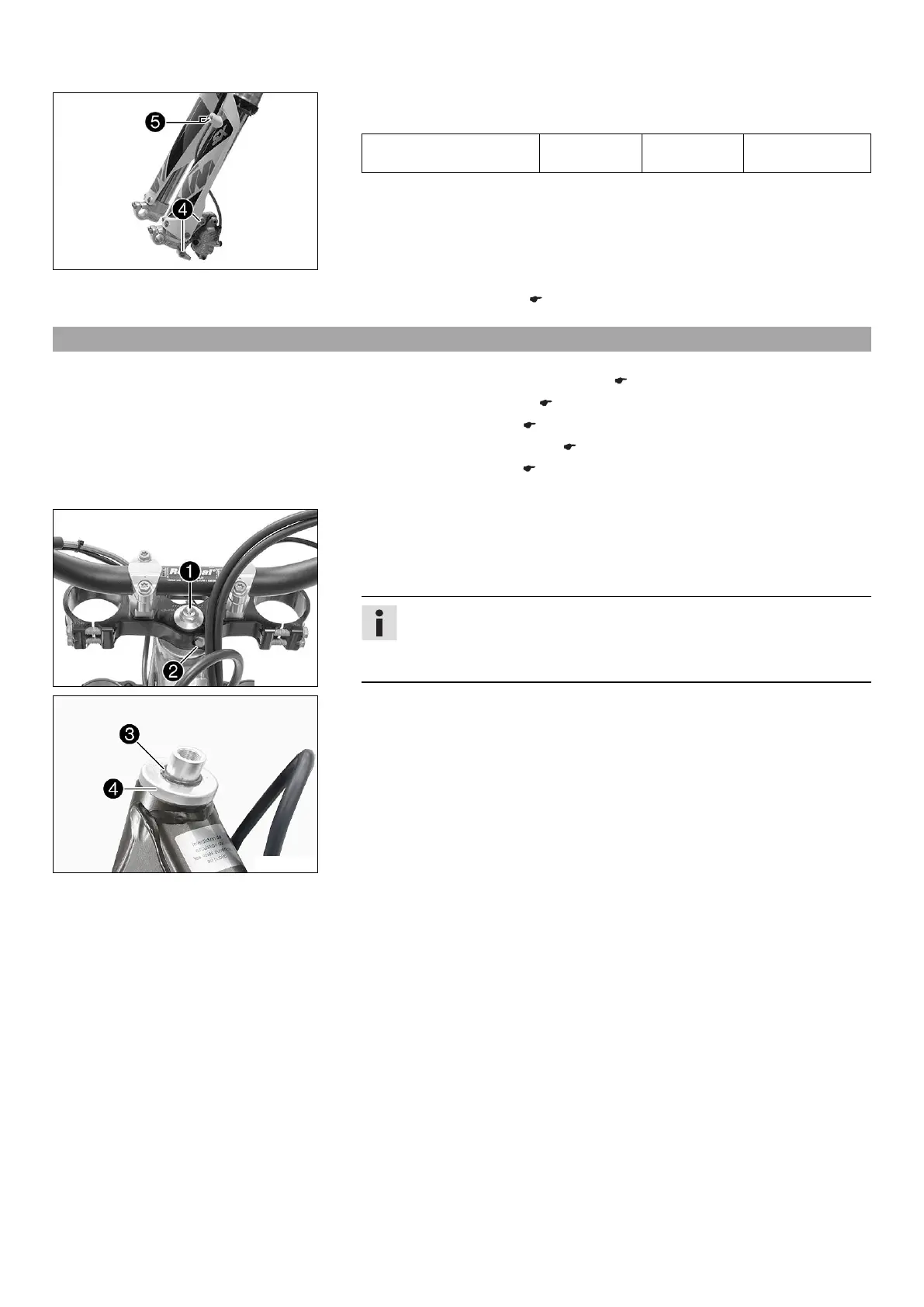

11 SERVICE WORK ON THE CHASSIS 37
M00016-11
–
Position the brake caliper. Mount and tighten screws
.
Guideline
Screw, front brake caliper M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
–
Position the brake line and clamp. Mount and tighten screws
.
Finishing work
–
Install the front wheel. x ( p. 65)
11.9 Removing the lower triple clamp x
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 34)
–
Remove the front wheel. x ( p. 65)
–
Remove the fork legs. x ( p. 36)
– Remove the start number plate. ( p. 41)
– Remove the front fender. ( p. 41)
– Remove the handlebar cushion.
102057-10
Main work
–
Remove screw
.
–
Remove screw
.
– Take off the top triple clamp with the handlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
S00145-10
–
Remove O-ring
. Remove protective ring
.
– Take out the lower triple clamp with the steering stem.
– Take out the upper steering head bearing.
