KTM 250 XCF-W 2007 User Manual

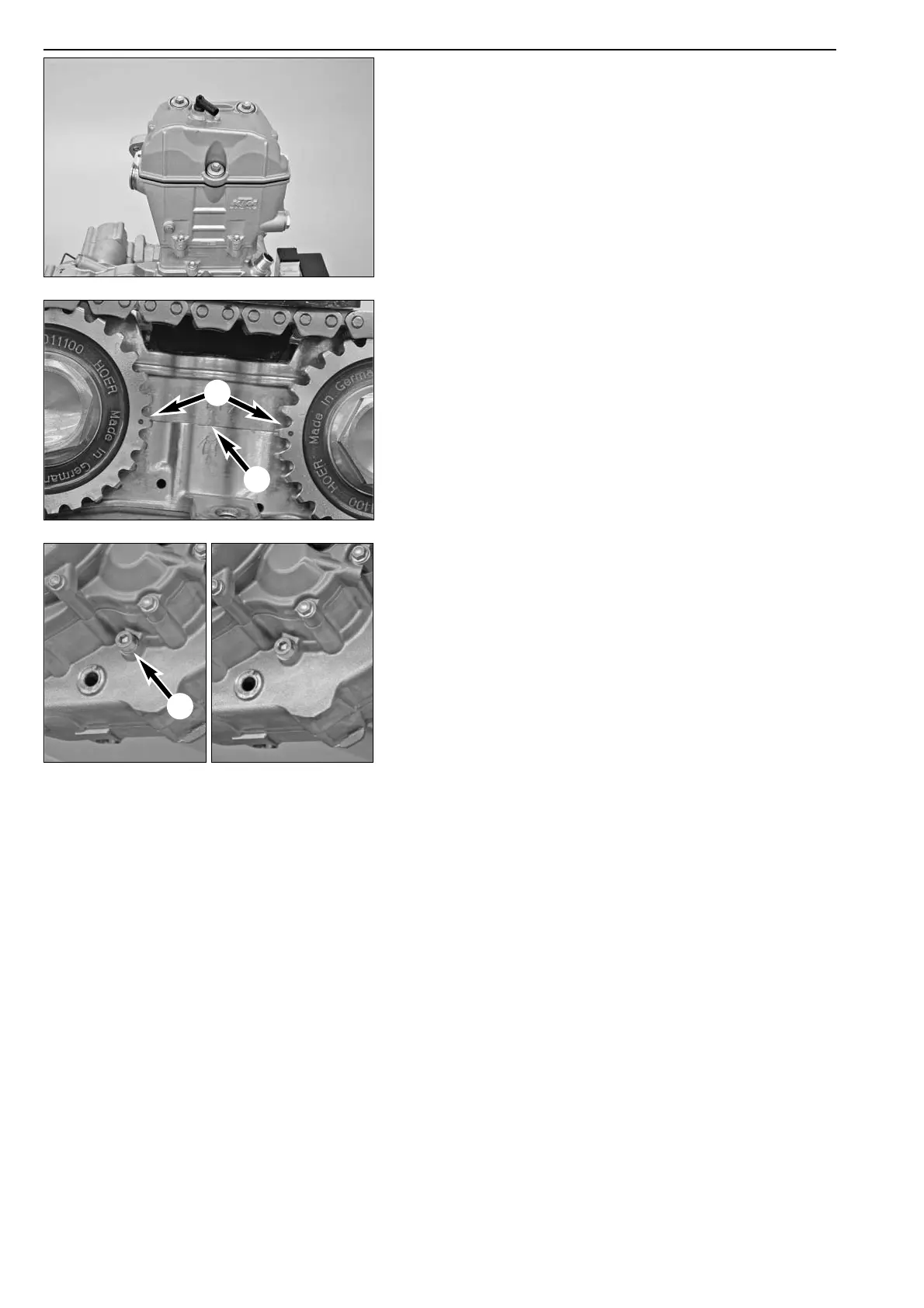

– Remove the valve cover.
Moving the engine into the TDC position
– Turn the crankshaft until the two marks 1 on the camshaft gears
are aligned and precisely above the dividing line
2 between the two
camshaft bearing bridges.
– Unscrew the engine locking screw
3, remove the seal ring and
screw the engine locking screw back in (tightening torque 20 Nm).
4-3
1
2
3

KTM 250 XCF-W 2007 Specifications

General

Transmission	6-speed
Engine Type	Single-cylinder, 4-stroke
Ignition	Kokusan digital
Cooling System	Liquid Cooled
Starter	Electric
Bore x Stroke	76 mm x 54.8 mm
