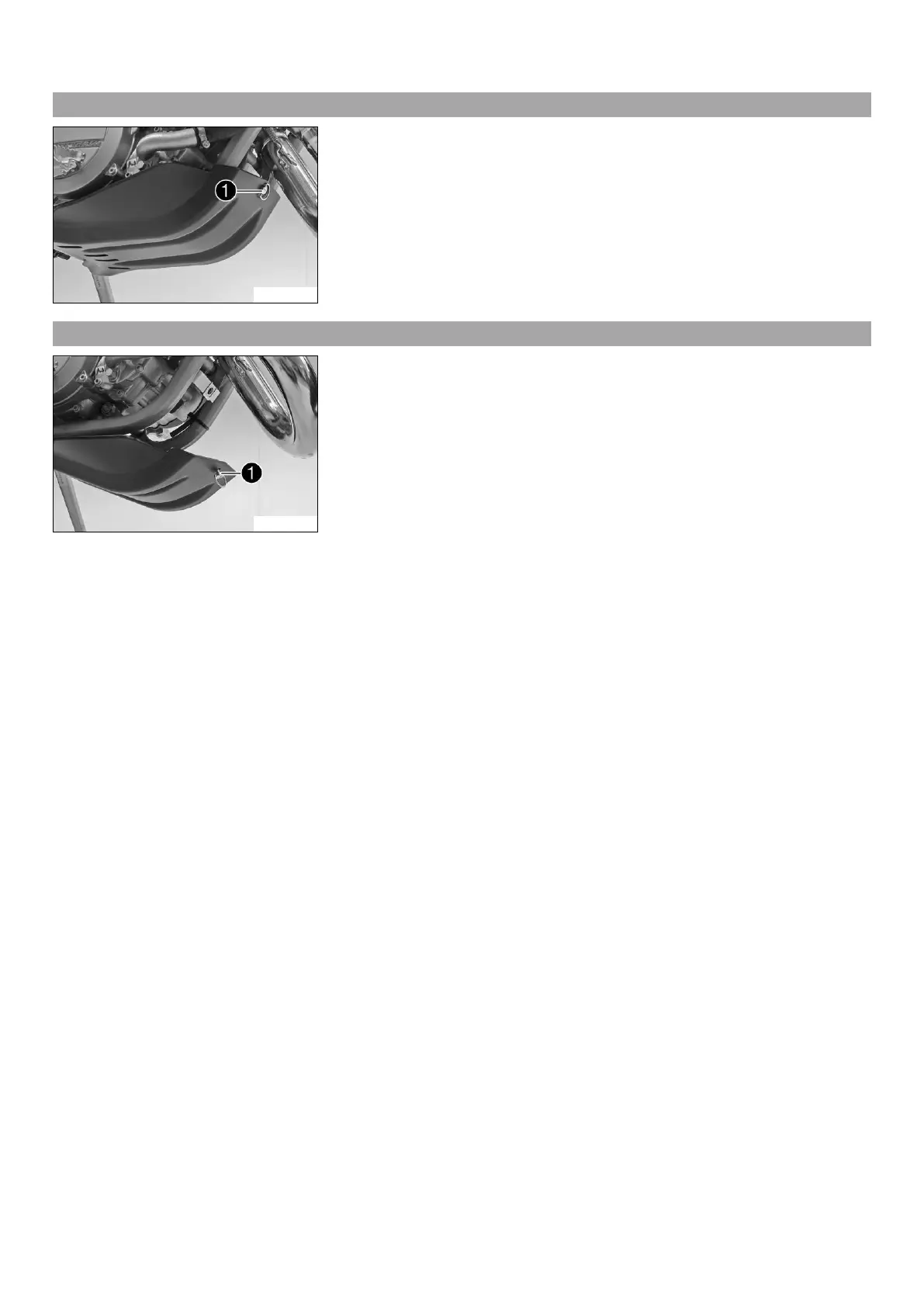

12 SERVICE WORK ON THE CHASSIS 80
12.46 Removing the engine guard
B01204-10
–
Turn quick release
counterclockwise until it disengages. Remove the engine
guard.
12.47 Installing the engine guard
B01205-10
– Attach the engine guard at the back of the frame and swing it up at front.
–
Turn quick release
all the way clockwise.
