SERVICE WORK ON THE CHASSIS 12
69

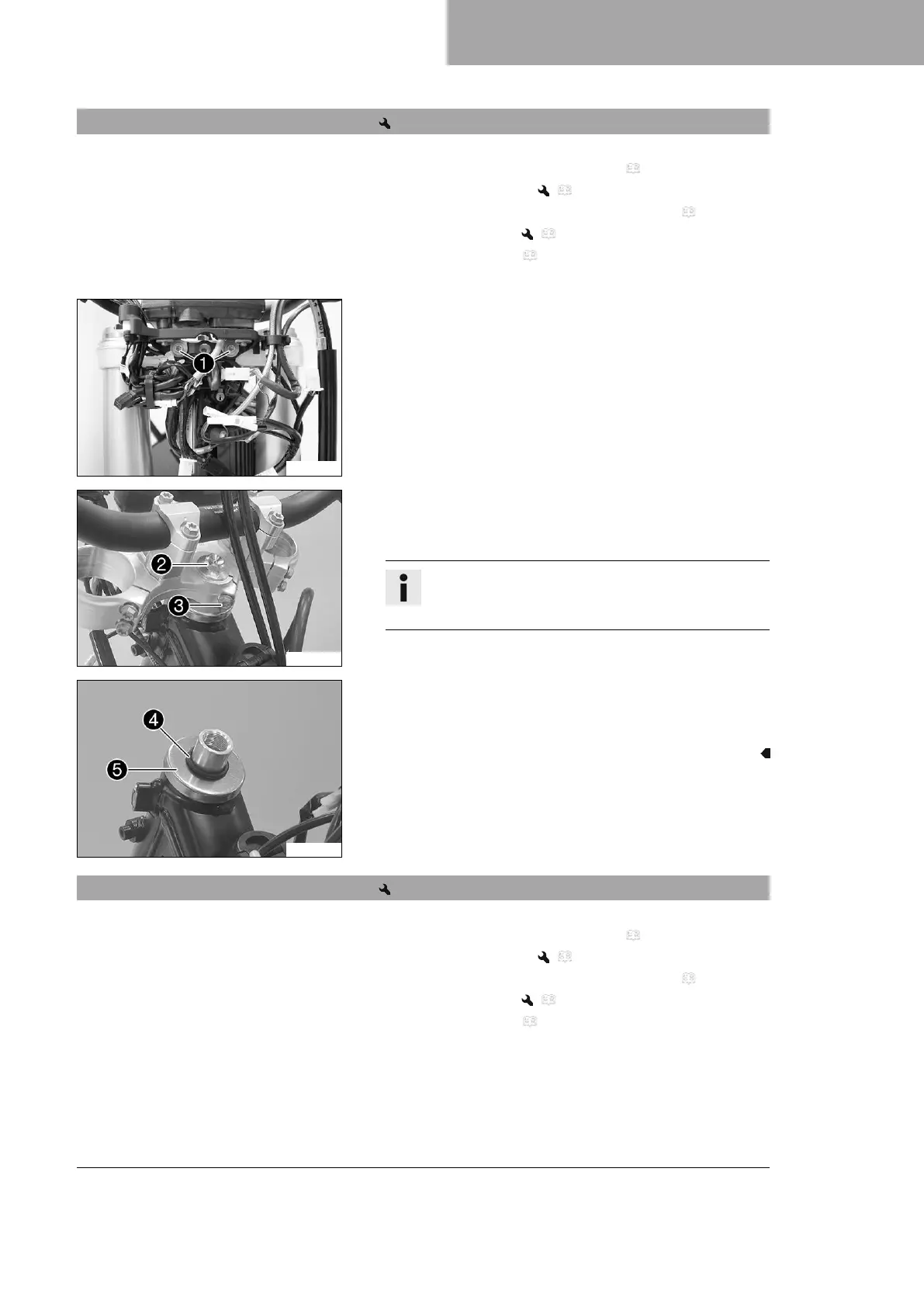

12.9 Removing the lower triple clamp (All standard EXC/XC-W models)
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 65)
– Remove the front wheel. ( p. 110)
– Remove the headlight mask with the headlight. ( p. 125)
– Remove the fork legs. ( p. 67)
– Remove front fender. ( p. 77)
– Remove the handlebar cushion.
S03514-10
Main work
–
Remove screws
1
and hang the combination instrument
holder to the side.
E00921-10
–
Remove screw
2
.
–
Loosen screw
3
. Take off the upper triple clamp with the
handlebar and hang them to the side.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
E00922-10
–
Remove O-ring
4
. Remove protective ring
5
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
12.10 Removing the lower triple clamp (All special models)
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 65)
– Remove the front wheel. ( p. 110)
– Remove the headlight mask with the headlight. ( p. 125)
– Remove the fork legs. ( p. 67)
– Remove front fender. ( p. 77)
– Remove the handlebar cushion.

KTM 300 EXC TPI Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Tank Capacity	9 liters
Ground Clearance	370 mm
Seat Height	960 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI (Transfer Port Injection)
Rear Suspension	WP Xplor shock absorber
Weight (without fuel)	103 kg
Frame	Central double-cradle type 25CrMo4 steel
