KTM 300 EXC TPI User Manual

SERVICE WORK ON THE CHASSIS 12
87
E00881-11
–

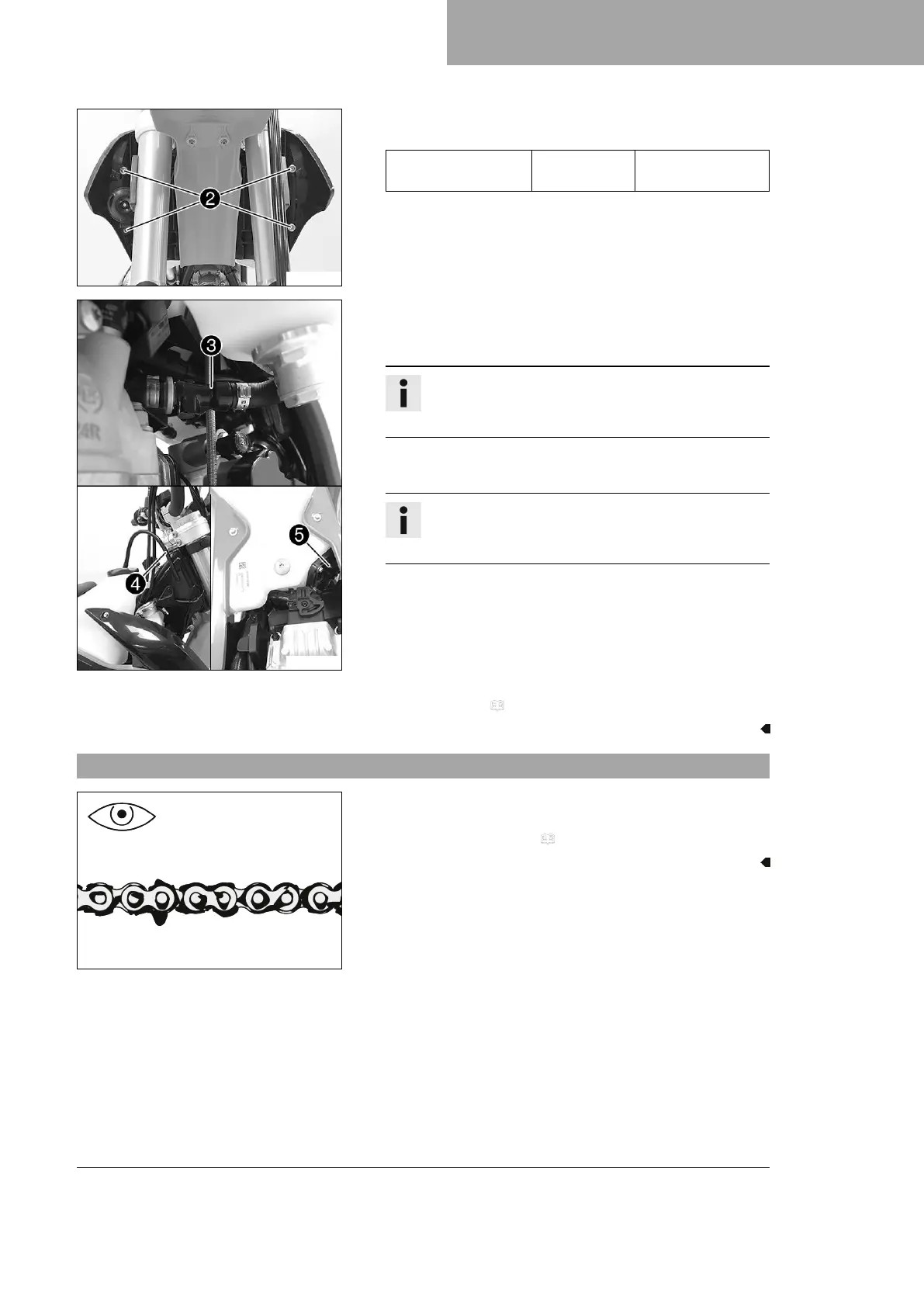

Mount and tighten screws
2
with the collar bushings.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
S03486-10
– Remove the wash cap set.
– Thoroughly clean the plug-in connection of the fuel line using
compressed air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
–
Lubricate the O-ring and connect plug-in connection
3
for
the fuel line.
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
–
Attach fuel tank breather hose
4
.
–
Plug in connector
5
for the fuel pump.
Finishing work
– Mount the seat. ( p. 79)
12.33 Checking the chain for dirt
400678-01
–
Check the chain for heavy soiling.
» If the chain is very dirty:
– Clean the chain. ( p. 88)

KTM 300 EXC TPI Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Fuel Tank Capacity	9 liters
Ground Clearance	370 mm
Seat Height	960 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI (Transfer Port Injection)
Rear Suspension	WP Xplor shock absorber
Weight (without fuel)	103 kg
Frame	Central double-cradle type 25CrMo4 steel
