KTM 300 XC-W 2023 User Manual

SERVICE WORK ON THE CHASSIS 12
93
E01230-01

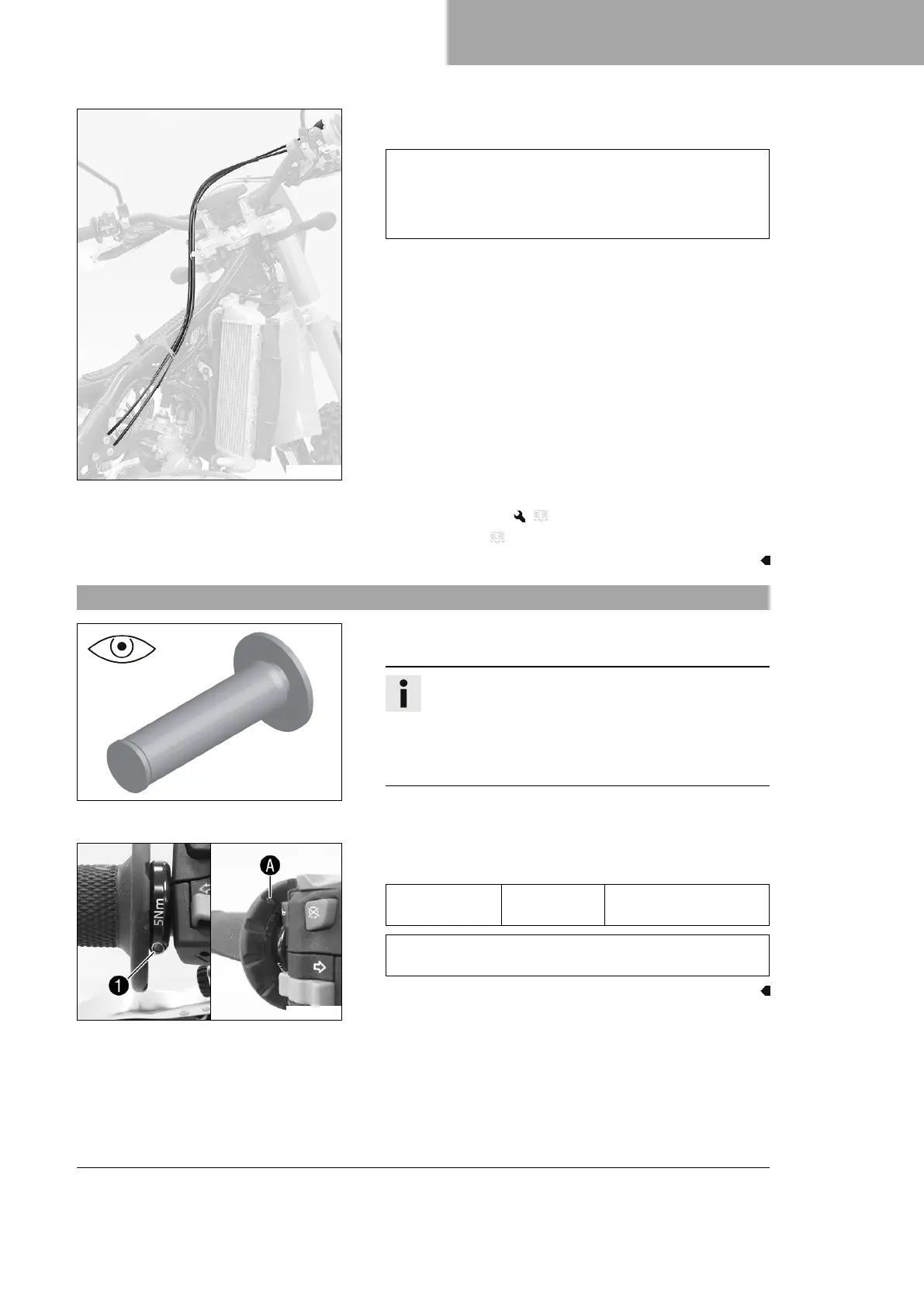

Main work
– Check the throttle cable routing.
Both throttle cables must be routed, side by side, on the
back of the handlebars, above the fuel tank bracket on the
right of the frame to the throttle valve body. Both throttle
cables must be secured behind the rubber strap of the fuel
tank support.
» If the throttle cable is not routed as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 85)
– Mount the seat. ( p. 78)
12.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage, wear,
and looseness.
Info
The rubber grips are vulcanized onto a sleeve on the
left and onto the handle tube of the throttle grip on the
right. The left sleeve is clamped onto the handlebar.
The rubber grip can only be replaced with the sleeve or
the throttle tube.
» If a rubber grip is damaged or worn:
– Change the rubber grip.
E00889-10
–
Check that screw
1
is firmly seated.
Guideline
Screw, fixed
grip
M4 5 Nm (3.7 lbf ft)
Loctite
®
243™
Diamond
A
must be positioned visibly as shown in the fig-
ure.

KTM 300 XC-W 2023 Specifications

General

Displacement	293.2 cc
Bore x Stroke	72 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Seat Height	960 mm
Front Wheel Travel	300 mm
Rear Wheel Travel	310 mm
Engine Type	1-cylinder, 2-stroke
Rear Suspension	WP XPLOR shock absorber
Fuel Tank Capacity	9 l
Frame	Central tube frame made of chrome molybdenum steel
