KTM 350 EXC-F 2019 User Manual

BRAKE SYSTEM 13
103

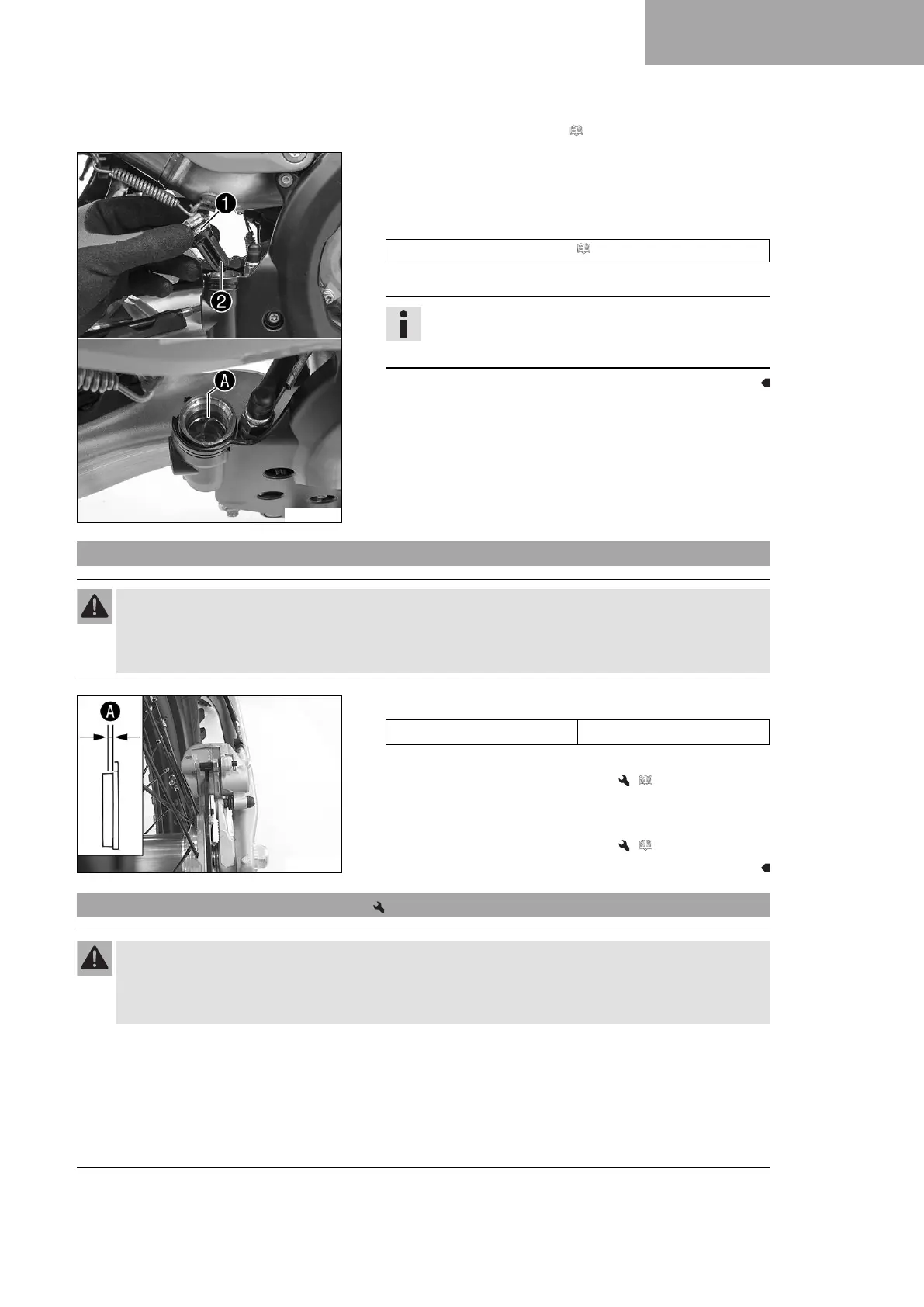

Preparatory work
– Check the rear brake linings. ( p. 103)
M01506-10
Main work
– Stand the vehicle upright.
–
Remove screw cap
1
with membrane
2
and the O-ring.
–
Add brake fluid to level
A
.
Brake fluid DOT 4 / DOT 5.1 ( p. 158)
– Mount the screw cap with the membrane and the O-ring.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
13.12 Checking the rear brake linings
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
E00349-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the rear brake linings. ( p. 103)
– Check the brake linings for damage and cracking.
» If damage or cracking is visible:
– Change the rear brake linings. ( p. 103)
13.13 Changing the rear brake linings
Warning
Danger of accidents Incorrect maintenance will cause the brake system to fail.
–
Ensure that service work and repairs are performed professionally. (Your authorized KTM workshop
will be glad to help.)

KTM 350 EXC-F 2019 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	349.7 cc
Bore x Stroke	88 mm x 57.5 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Frame	Central double-cradle type 25CrMo4 steel
Rear Suspension	WP XPLOR PDS shock absorber
Seat Height	960 mm
Ground Clearance	370 mm
Fuel System	Keihin EFI, 42 mm Throttle Body
Front Suspension	WP Xplor 48, USD forks
Front Brake	260 mm disc
Rear Brake	220 mm disc
