11 SERVICE WORK ON THE CHASSIS 68

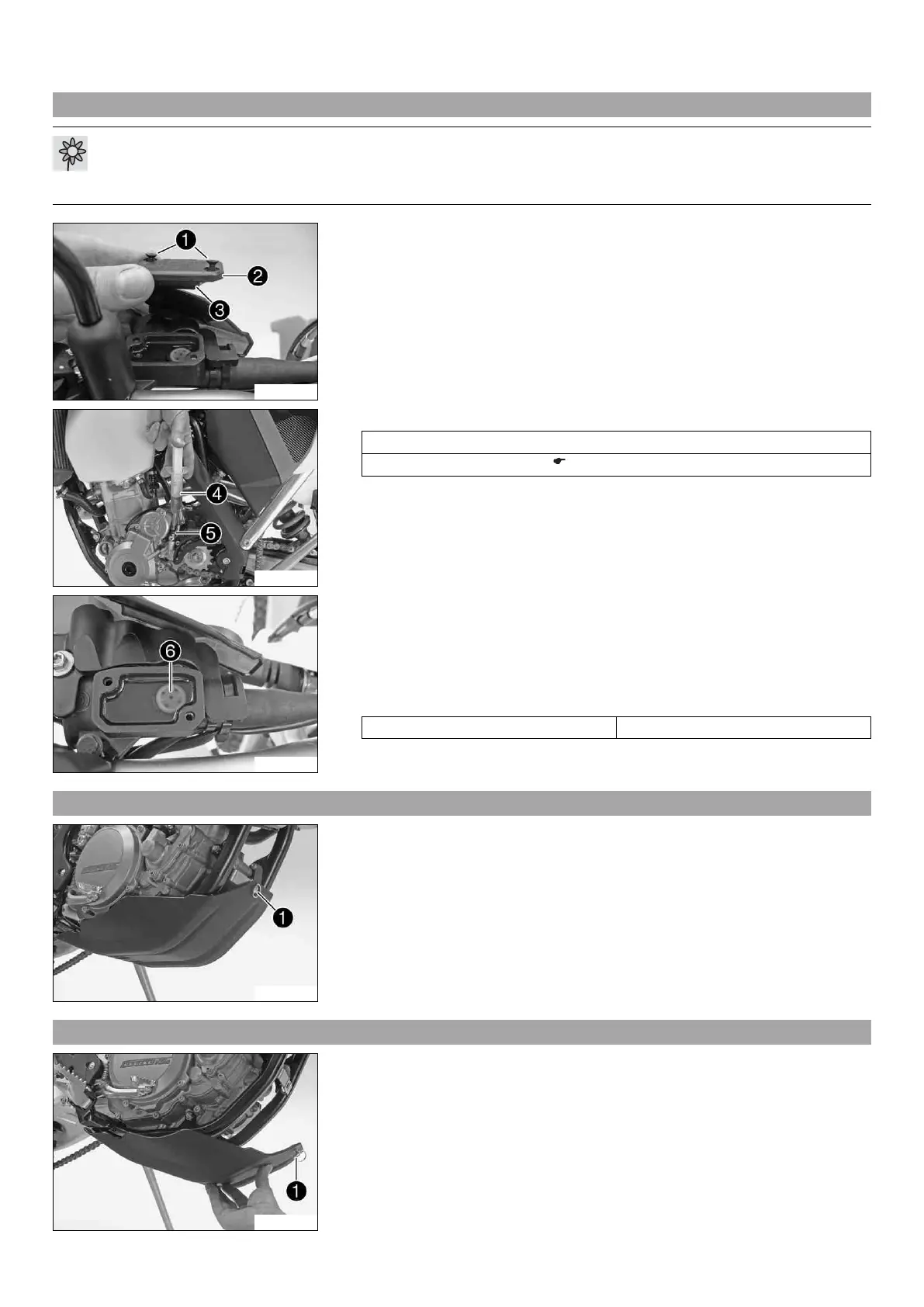

11.48 Changing the hydraulic clutch fluid x
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
101365-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws 1.
– Remove cover 2 with membrane 3.
101366-10
– Fill bleeding syringe 4 with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 114)
– On the slave cylinder of the clutch, remove bleeder screw 5 and mount bleeding
syringe 4.
101367-10
– Inject the liquid into the system until it escapes from openings 6 of the master
cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten screws bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below container rim 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
11.49 Removing the engine guard (EXC‑F AUS, EXC-F SIX DAYS)
101368-10
– Turn quick release 1 counterclockwise until it disengages. Remove the engine
guard.
11.50 Installing the engine guard (EXC‑F AUS, EXC-F SIX DAYS)
101369-10
– Attach the engine guard on the frame at the rear and swing up at the front.
– Turn quick release 1 clockwise all the way.
