KTM 390 Adventure 2020 User Manual

WHEELS, TIRES 15
191
F00861-12
–

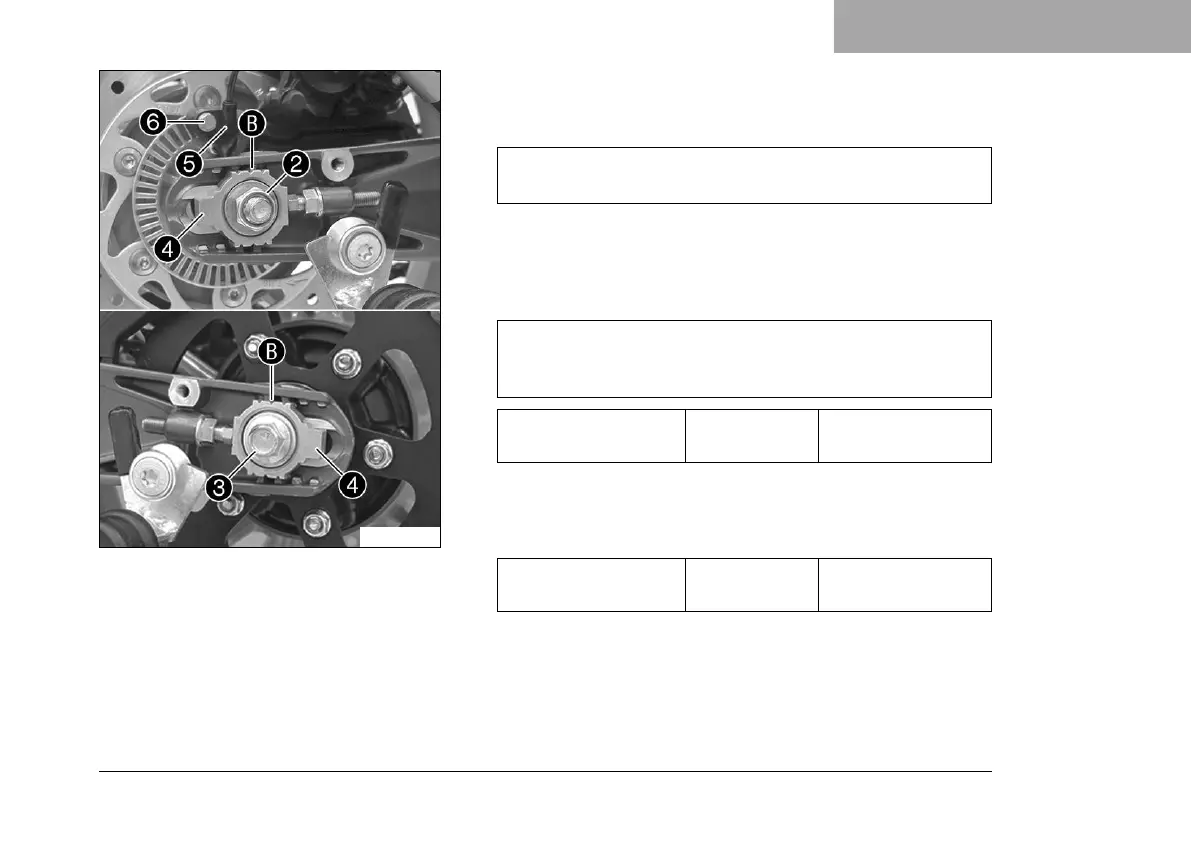

Pull the rear wheel back and mount wheel spindle
3
with the
washer and chain adjuster
4
.
Guideline
Mount left and right chain adjusters
4
in the same posi-
tion.
–
Mount nut
2
and the washer.
– Push the rear wheel forward so that the chain adjusters are in
contact with the screws, and tighten nut
2
.
Guideline
In order for the rear wheel to be correctly aligned, the mark-
ings on the left and right chain adjusters must be in the
same position relative to reference markings
B
.
Nut, rear wheel spin-
dle
M14x1.5 100 Nm
(73.8 lbf ft)
–
Position wheel speed sensor
5
in the hole.
–
Mount and tighten screw
6
.
Guideline
Screw, wheel speed
sensor holder
M6 8 Nm (5.9 lbf ft)

KTM 390 Adventure 2020 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Power	43 hp (32 kW) @ 9, 000 rpm
Torque	37 Nm @ 7, 000 rpm
Compression Ratio	12.6:1
Transmission	6-speed
Cooling	Liquid cooled
Rear Brake	230 mm Disc, Single-Piston Caliper
Front Tire	100/90-19
Rear Tire	130/80-17
Seat Height	855 mm
Ground Clearance	200 mm
Fuel Capacity	14.5 liters
Weight (Dry)	158 kg
Weight (Wet)	172 kg
Fuel System	Electronic Fuel Injection (EFI)
Frame	Steel trellis
Front Suspension	WP APEX 43 mm USD forks
Rear Suspension	WP APEX monoshock
Front Brake	320 mm disc, 4-piston caliper
Wheelbase	1, 430 mm
