KTM 450 XCR-W USA User Manual

30/ASSEMBLING ENGINE 112

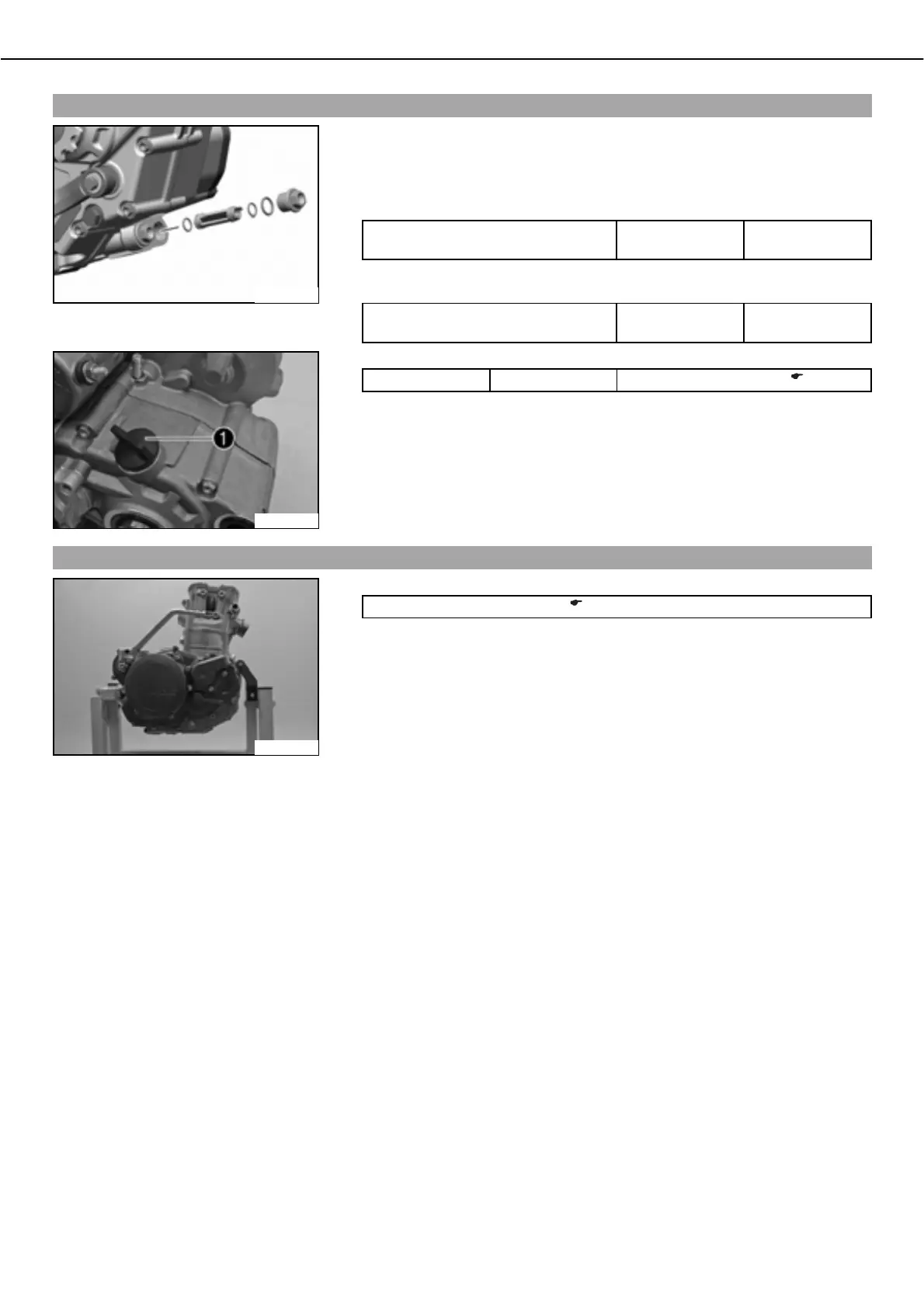

Filling up with gear oil
400365-10
ಥ Thoroughly clean the plug, gear oil screen and gear oil drain plug. Check parts for
damage and wear. Replace damaged or worn parts.
ಥ Clean the sealing surfaces on the engine.
ಥ Refit gear oil drain plug with seal ring and tighten it.
Specification
Gear oil drain plug with magnet M12x1,5 20Nm
(14.75lbfft)
ಥ Refit plug of gear oil screen with O-rings and tighten it.
Specification
Plug, gear oil screen M16x1,5 20Nm
(14.75lbfft)
700033-11
ಥ Remove the screw cap and fill up with gear oil.
Gear oil 0.9l (0.95qt.) Engine oil (SAE 10W/50) ( P. 174)
ಥ Mount and tighten screw cap
.
Removing the engine from the universal mounting rack
700020-01
ಥ Remove the screw/nut from the special tool.
Engine holder (78029002000) ( P. 182)
ಥ Remove the engine from the universal mounting rack.

KTM 450 XCR-W USA Specifications

General

Transmission	6-speed
Fuel Tank Capacity	8.5 L
Ignition	Keihin EMS
Compression Ratio	12.75:1
Starter	Electric starter
Lubrication	Pressure lubrication with 2 oil pumps
Subframe	Aluminum
Suspension Travel Front	300 mm
Suspension Travel Rear	310 mm
Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	95 mm x 63.4 mm
Fuel System	Keihin EMS
Front Suspension	WP Xplor 48
Rear Suspension	WP Xplor PDS shock absorber
Front Brake	Disc brake
Rear Brake	220 mm disc
Cooling	Liquid cooled
Clutch	Wet multi-disc clutch, hydraulically operated
Frame	Central tube frame made of chrome molybdenum steel
