KTM 450 XCR-W USA User Manual

38/LUBRICATION SYSTEM 134
/8%5,&$7,21 6<67(0


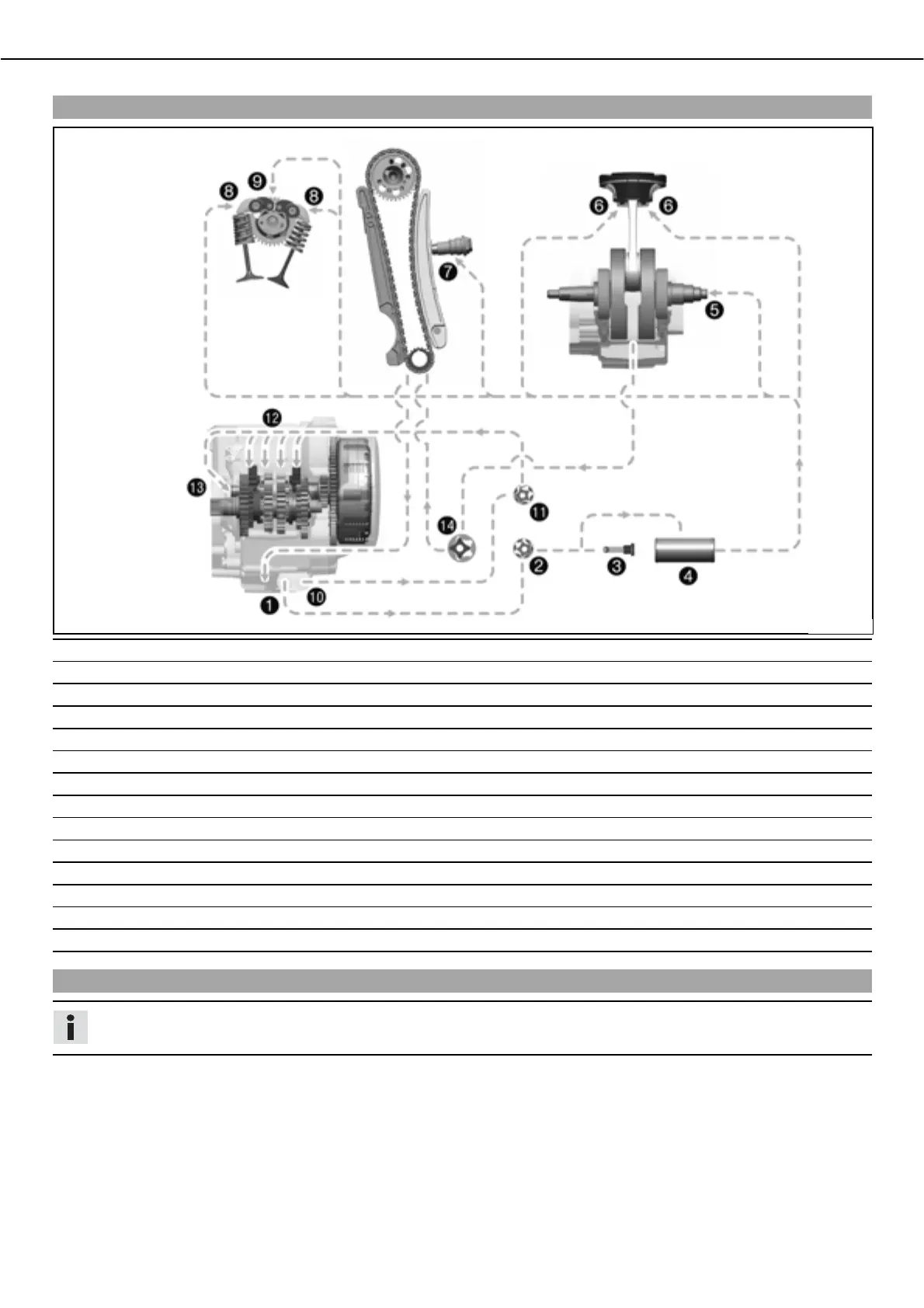

Oil cycle
400283-10
1 engine oil screen
2 Engine oil force pump
3 Oil pressure regulator valve
4 Oil filter insert
5 Oil jet, conrod lubrication
6 Oil jet, piston cooling
7 Timing chain tensioner
8 Lubrication, rocker arm shaft
9 Oil jet, rocker arm lubrication
10 Gear oil screen
11 Gear oil force pump
12 Oil channel, transmission lubrication
13 Lubrication, clutch push rod
14 Suction pump
Checking engine oil level
Info
The engine oil level must be checked when the engine is cold.
ಥ Stand the motorcycle upright on a horizontal surface.

KTM 450 XCR-W USA Specifications

General

Transmission	6-speed
Fuel Tank Capacity	8.5 L
Ignition	Keihin EMS
Compression Ratio	12.75:1
Starter	Electric starter
Lubrication	Pressure lubrication with 2 oil pumps
Subframe	Aluminum
Suspension Travel Front	300 mm
Suspension Travel Rear	310 mm
Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	95 mm x 63.4 mm
Fuel System	Keihin EMS
Front Suspension	WP Xplor 48
Rear Suspension	WP Xplor PDS shock absorber
Front Brake	Disc brake
Rear Brake	220 mm disc
Cooling	Liquid cooled
Clutch	Wet multi-disc clutch, hydraulically operated
Frame	Central tube frame made of chrome molybdenum steel
