KTM 450 XCR-W USA User Manual

06/AIR FILTER 26
$,5 ),/7(5


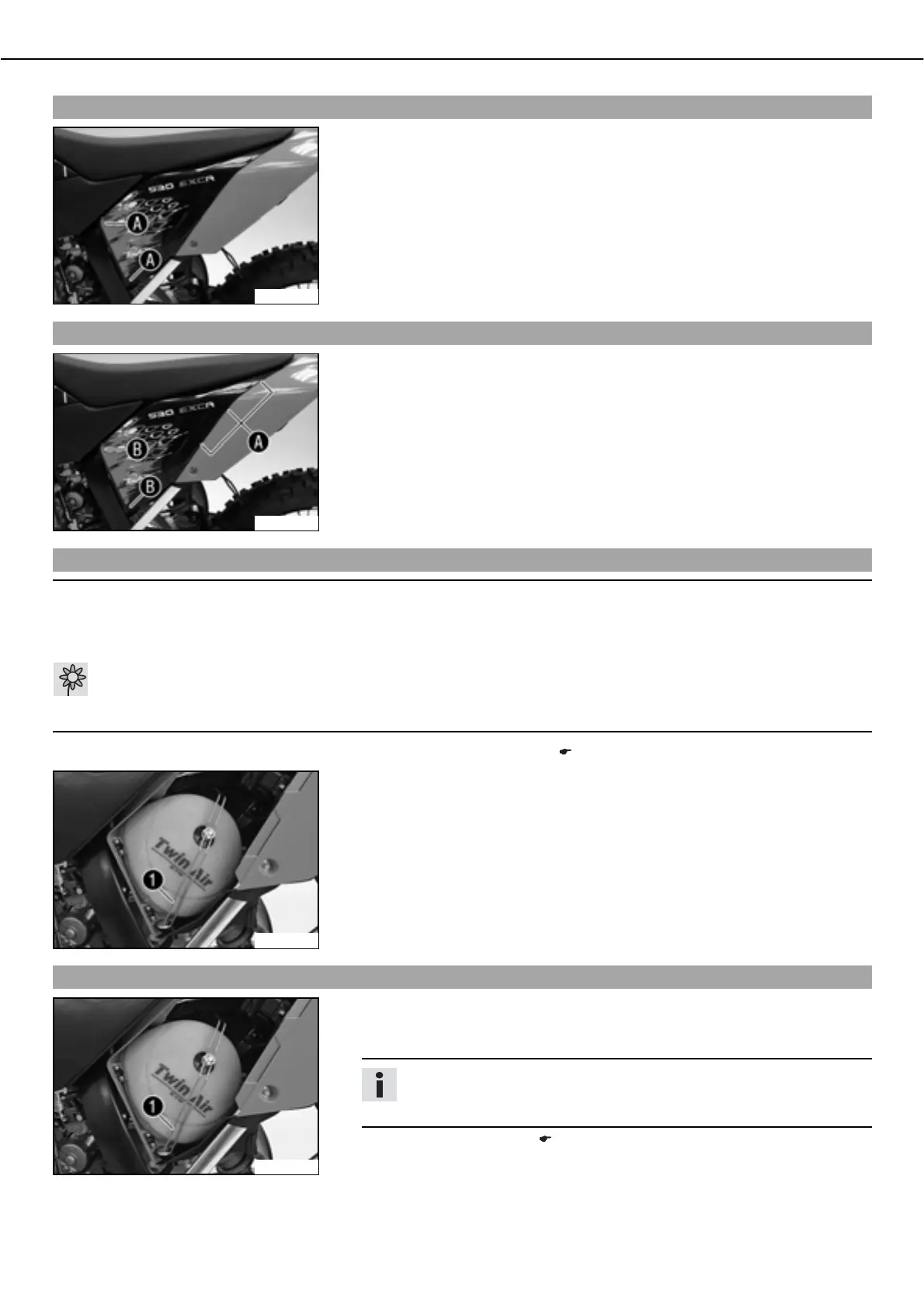

Dismounting the air filter box lid
400338-10
ಥ Pull off the air filter box lid in area to the side and remove to the front.
Installing the air filter box lid
400338-11
ಥ Insert the air filter box lid into the rear area and clip it into the front area.
Removing the air filter
Note
Engine failureಗUnfiltered intake air has a negative effect on the service life of the engine.
ಥ Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazardಗProblem materials cause environmental damage.
ಥ Dispose of oil, grease, filters, fuel, cleaning substances, brake fluid, batteries, etc. according to regulations.
ಥ Dismount the air filter box lid. ( P. 26)
500107-10
ಥ Hang the air filter holder out to the bottom and swing it to the side. Remove the
air filter with the air filter support.
ಥ Remove the air filter from the air filter support.
Installing the air filter
500107-10
ಥ Check parts for damage and wear. Replace damaged or worn parts.
ಥ Mount the clean air filter onto the air filter support.
ಥ Put in both parts together, position them and fix them with the air filter support
.
Info
If the air filter is not correctly mounted, dust and dirt can penetrate into the
engine and can cause damage.
ಥ Install the air filter box lid. ( P. 26)
