KTM 450 XCR-W USA User Manual

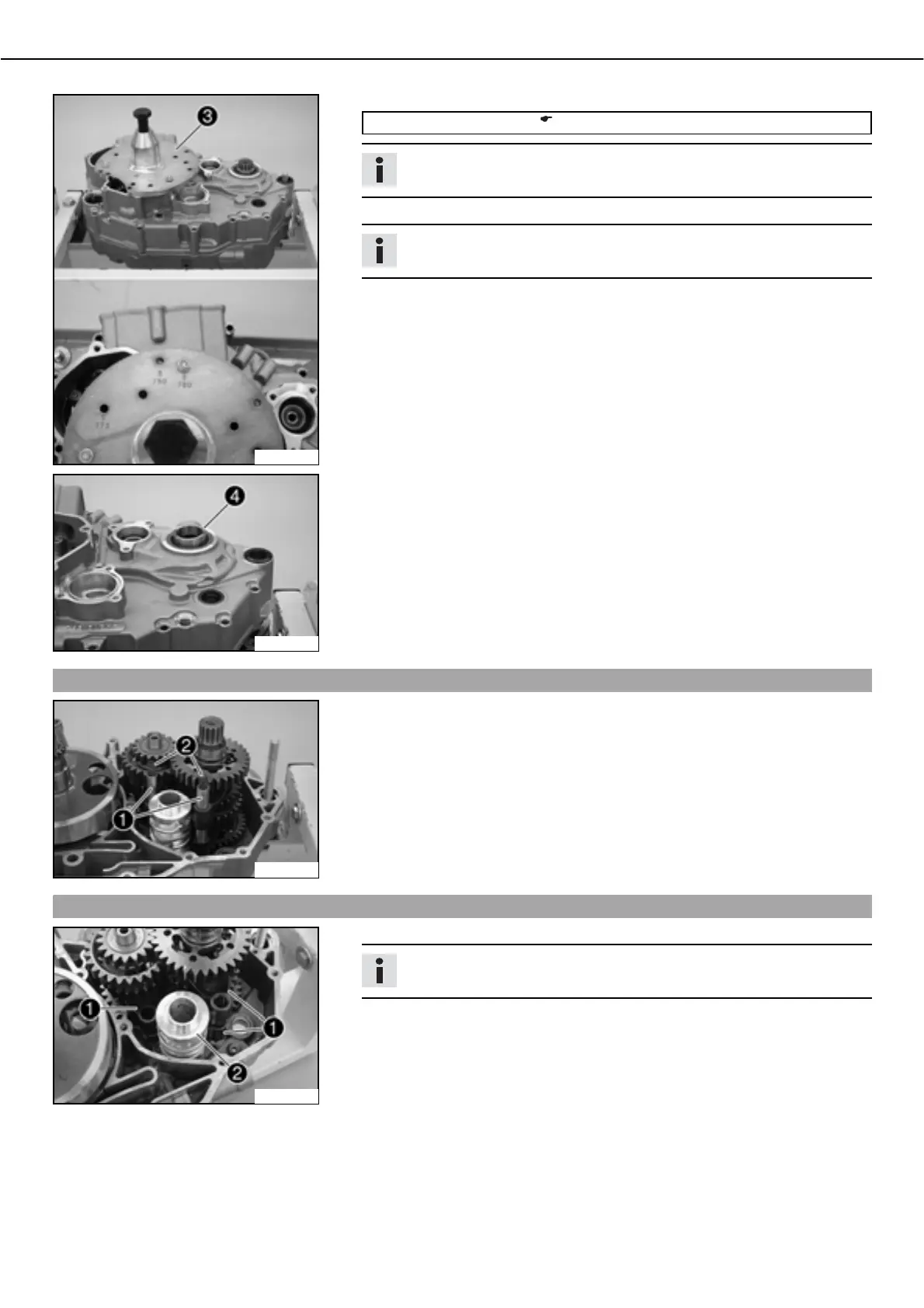

30/DISASSEMBLING ENGINE 70
200138-10
ಥ Mount special tool with suitable screws.
Extractor (75029048000) ( P. 180)
Info
Use the bore labeled780.
ಥ Pull off the engine case section.
Info
Do not warp the engine case section.
200139-10
ಥ Remove the special tool.
ಥ Remove distance bushing
.
ಥ Take off the left section of the engine case.
Removing the shift rails
200141-10
ಥ Remove shift rails together with top springs and lower springs.
Removing the shift roller
200142-10
ಥ Swing shift forks to one side.
Info
Make sure not to misplace the shift drums.
ಥ Remove shift roller
.

KTM 450 XCR-W USA Specifications

General

Transmission	6-speed
Fuel Tank Capacity	8.5 L
Ignition	Keihin EMS
Compression Ratio	12.75:1
Starter	Electric starter
Lubrication	Pressure lubrication with 2 oil pumps
Subframe	Aluminum
Suspension Travel Front	300 mm
Suspension Travel Rear	310 mm
Engine Type	Single-cylinder, 4-stroke
Bore x Stroke	95 mm x 63.4 mm
Fuel System	Keihin EMS
Front Suspension	WP Xplor 48
Rear Suspension	WP Xplor PDS shock absorber
Front Brake	Disc brake
Rear Brake	220 mm disc
Cooling	Liquid cooled
Clutch	Wet multi-disc clutch, hydraulically operated
Frame	Central tube frame made of chrome molybdenum steel
