6 CONTROLS 15

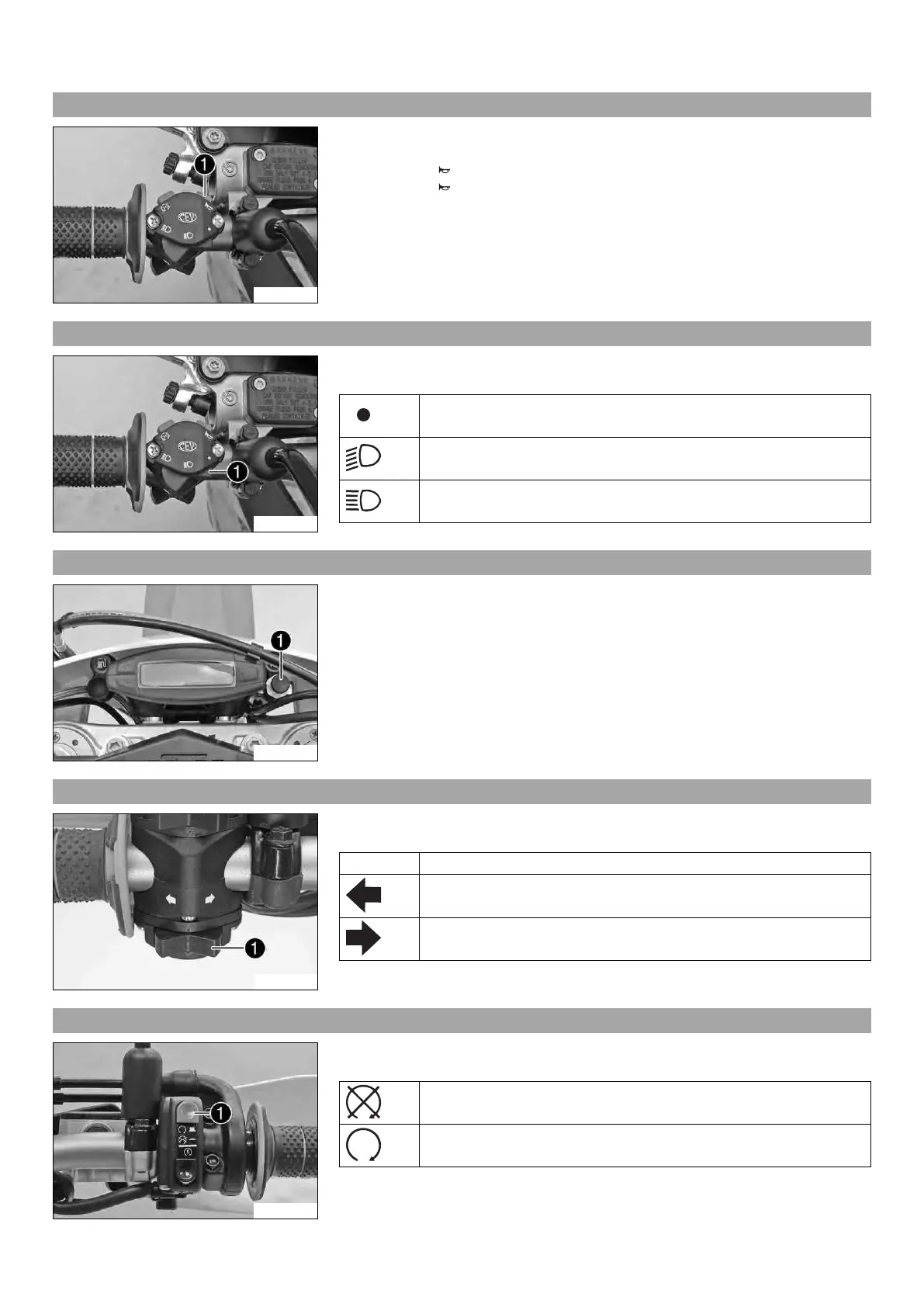

6.6 Horn button (all EXC models)
B01585-11
The horn button 1 is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – the horn is actuated in this position.
6.7 Light switch (all EXC models)
B01585-12
The light switch 1 is fitted on the left side of the handlebar.
Possible states
Light off – Light switch is turned to the right. In this position, the light
is switched off.
Low beam on – Light switch is in the central position. In this position,
the low beam and tail light are switched on.
High beam on – Light switch is turned to the left. In this position, the
high beam and the tail light are switched on.
6.8 Light switch (all XC‑W models)
B01499-10
The light switch 1 is on the right of the speedometer.
Possible states
• Light off – Light switch is pressed in up to the stop. In this position, the light is
switched off.
• Light on – Light switch is pulled out to the stop. In this position, the low beam
and tail light are switched on.
6.9 Turn signal switch (all EXC models)
101633-10
Turn signal switch 1 is fitted on the left side of the handlebar.
Possible states
Turn signal light off – Turn signal switch is in the central position.
Turn signal light, left, on – Turn signal switch is turned to the left.
Turn signal light, right, on – Turn signal switch is turned to the right.
6.10 Emergency OFF switch (EXC AUS)
B01501-11
The emergency OFF switch 1 is fitted on the right side of the handlebar.
Possible states
Ignition off – the ignition circuit is open in this position, the engine
goes out if it was running, or does not start if it was off.
Ignition on – the ignition circuit is closed in this position and the
engine can be started.
