11 TUNING THE CHASSIS 53
B01206-10
(EXC SIX DAYS)

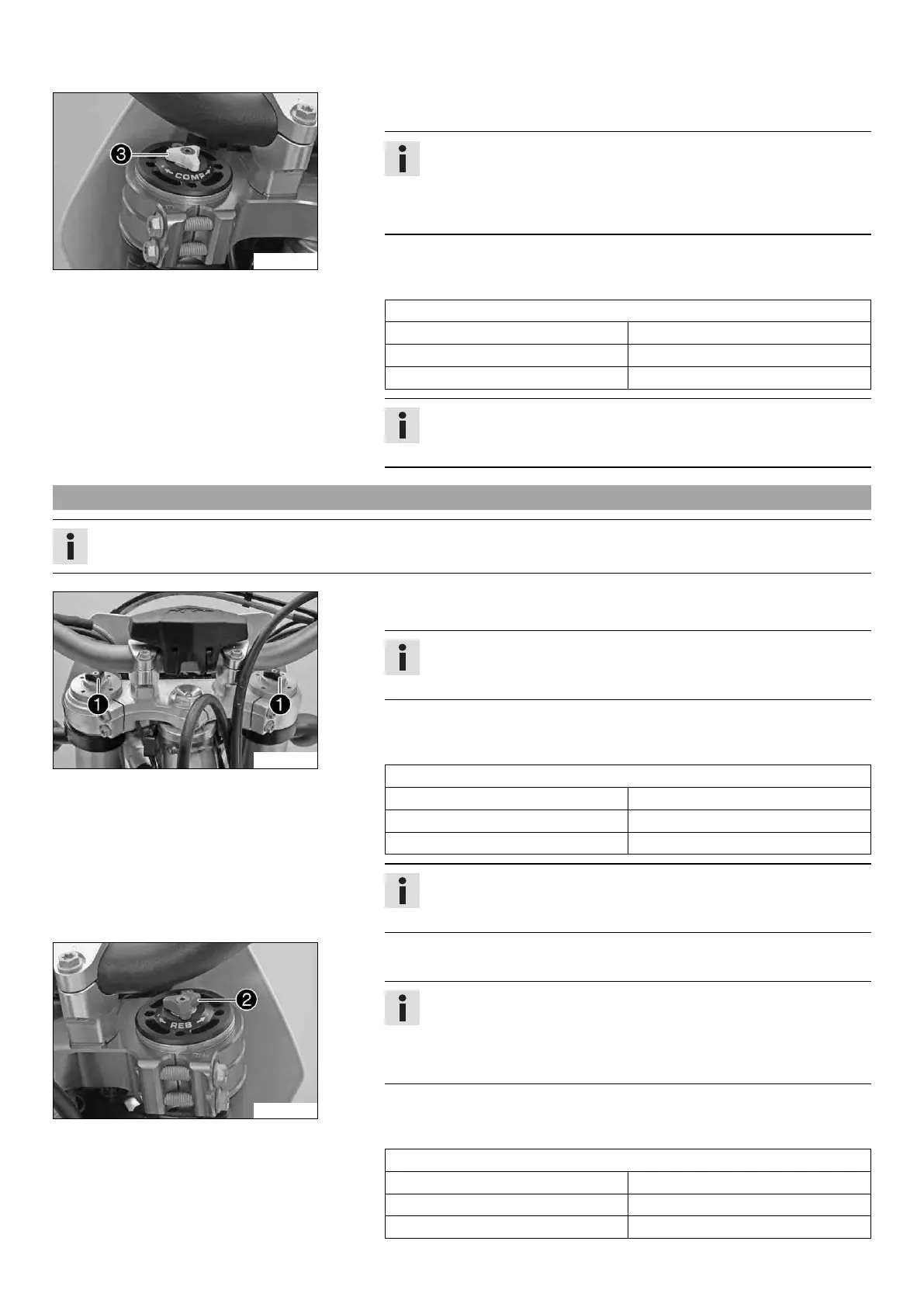

– Turn the white adjusting screw 3 all the way clockwise.
Info
Adjusting screw 3 is located at the upper end of the left fork leg.
The compression damping is located in the left fork leg COMP (white
adjusting screw). The rebound damping is located in the right fork
leg REB (red adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Compression damping
Comfort 15 clicks
Standard 13 clicks
Sport 11 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
11.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
B01511-10
(EXC EU, EXC AUS, all XC‑W models)
– Turn adjusting screws 1 clockwise all the way.
Info
Adjusting screws 1 are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Rebound damping
Comfort 20 clicks
Standard 18 clicks
Sport 16 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
B01207-10
(EXC SIX DAYS)
– Turn the red adjusting screw 2 all the way clockwise.
Info
Adjusting screw 2 is located at the upper end of the right fork leg.
The rebound damping is located in the right fork leg REB (red adjusting
screw). The compression damping is located in the left fork leg COMP
(white adjusting screw).
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
Rebound damping
Comfort 15 clicks
Standard 13 clicks
Sport 11 clicks
