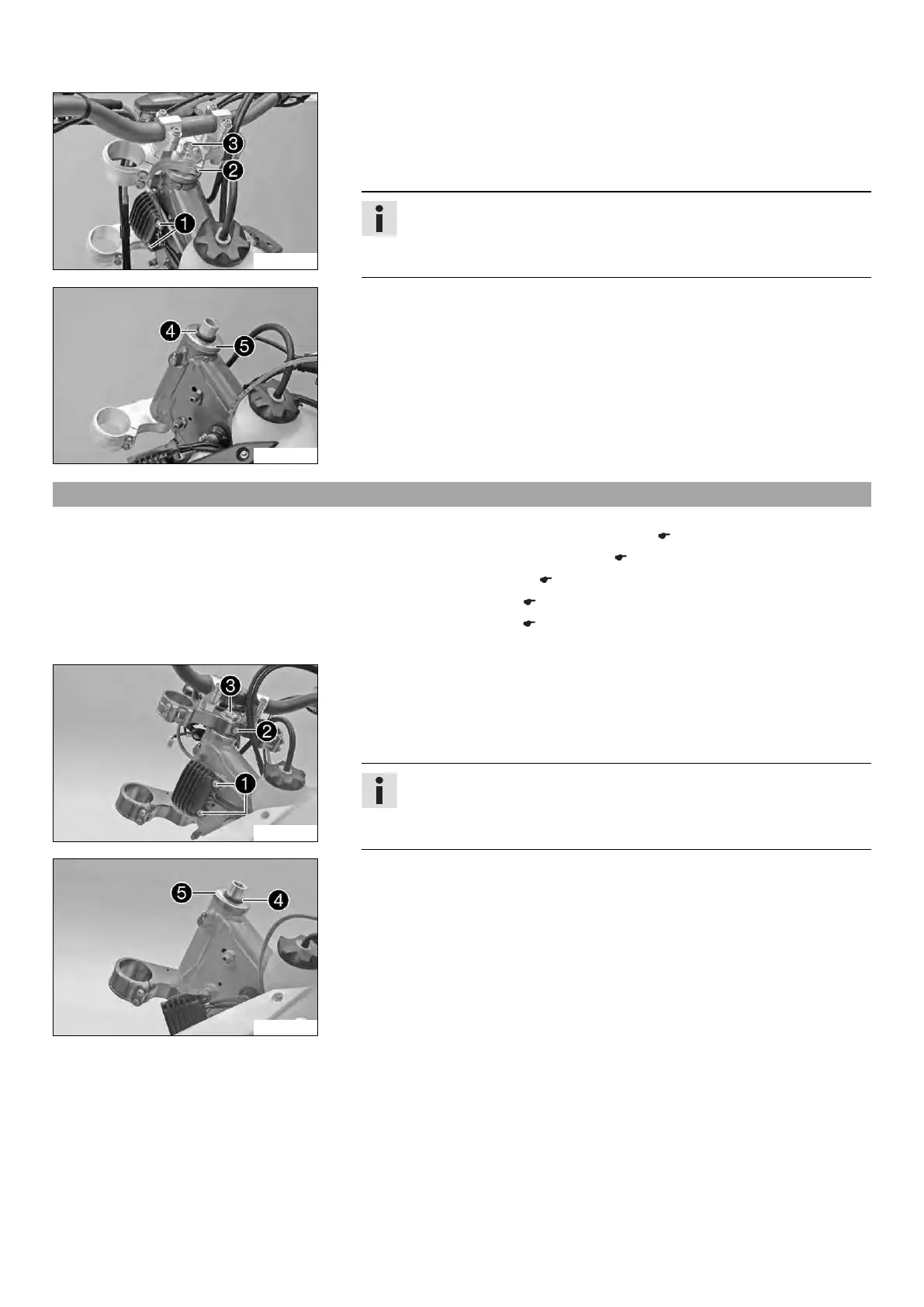

12 SERVICE WORK ON THE CHASSIS 60
B01518-10
Main work
– Open the cable holder in front of the right radiator and detach the wiring harness.
– Remove screws 1 and hang the voltage regulator to one side.
– Release screw 2 and remove screw 3. Take off the upper triple clamp with the
handlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
B01519-10
– Remove O-ring 4. Remove protective ring 5.
– Take out the lower triple clamp with the steering stem.
– Take out the upper steering head bearing.
12.12 Removing the lower triple clamp x (EXC SIX DAYS)
Preparatory work
– Remove the headlight mask with the headlight. ( p. 98)
– Raise the motorcycle with the lift stand. ( p. 56)
–
Remove the front wheel. x ( p. 90)
–
Remove the fork legs. x ( p. 57)
– Remove the front fender. ( p. 66)
– Remove the handlebar cushion.
B01228-10
Main work
– Open the cable holder in front of the right radiator and detach the wiring harness.
– Remove screws 1 and hang the voltage regulator to the side.
– Remove screw 2. Remove screw 3, take off the upper triple clamp with the han-
dlebar and set it aside.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
B01229-10
– Remove O-ring 4. Remove protective ring 5.
– Take out the lower triple clamp with the steering stem.
– Take out the upper steering head bearing.
