16 LIGHTING SYSTEM, INSTRUMENTS 103

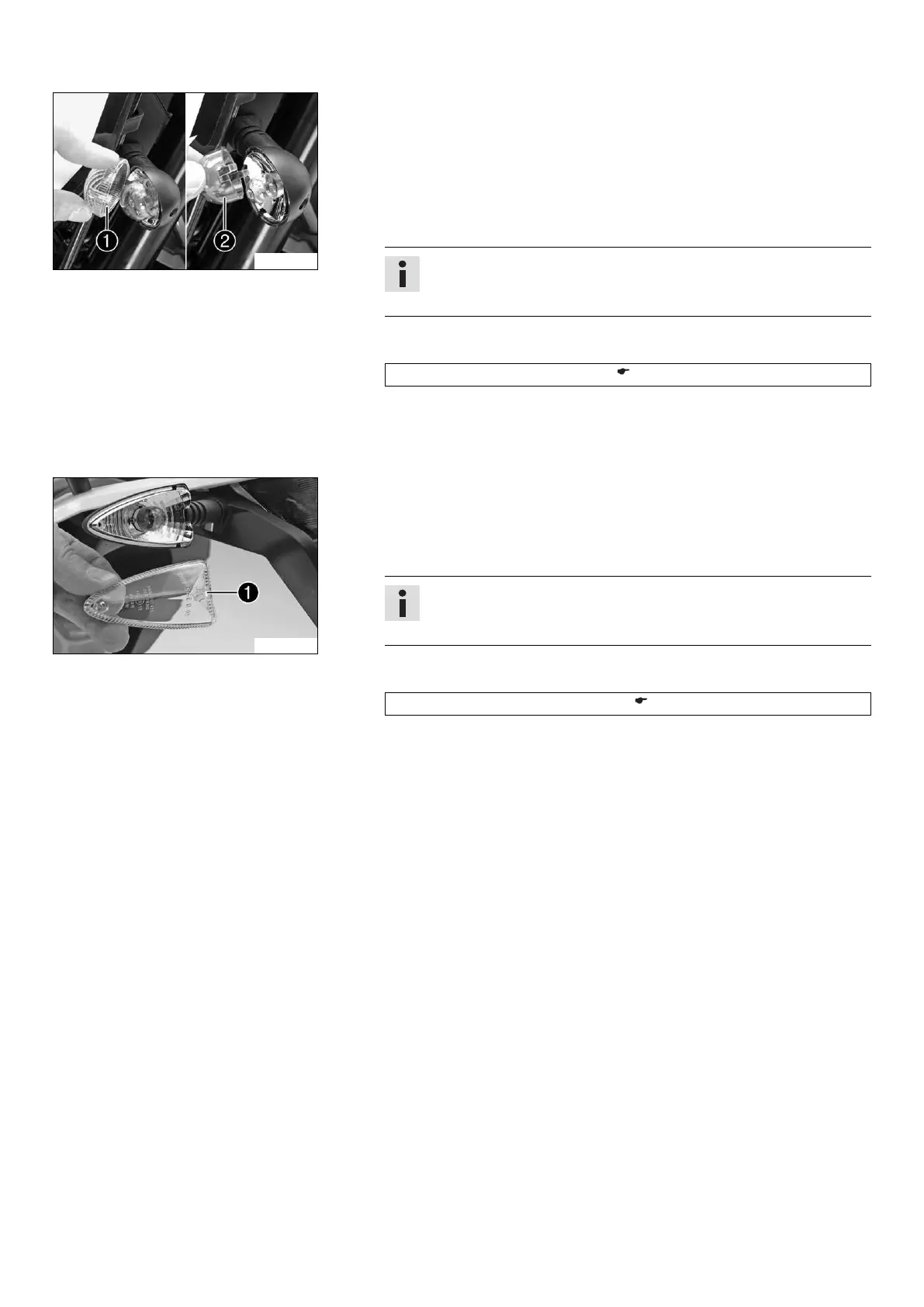

601795-10
Main work
(690 Enduro R EU/AUS/UK)
– Remove the screw on the rear of the turn signal housing.
– Tilt headlamp diffuser 1 forward carefully and take it off.
– Lightly squeeze the orange plug 2 in the area of the holding lugs and take it
off.
– Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from
grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise
until it stops.
Turn signal (R10W / socket BA15s) ( p. 181)
– Mount the orange plug.
– Position the diffuser.
– Insert the screw and turn it counterclockwise first until it engages in the thread.
Tighten the screw slightly.
601889-10
(690 Enduro R USA)
– Remove the screw on the rear of the turn signal housing.
– Tilt headlamp diffuser 1 forward carefully and take it off.
– Press the turn signal bulb carefully into the socket, turn it counterclockwise by
about 30°, and take it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from
grease.
– Press the new turn signal bulb carefully into the socket and turn it clockwise
until it stops.
Turn signal (RY10W / socket BAU15s) ( p. 181)
– Position the diffuser.
– Insert the screw and turn it counterclockwise first until it engages in the thread.
Tighten the screw slightly.
Finishing work
– Check that the turn signal system is functioning properly.
