7 ERGONOMICS
46

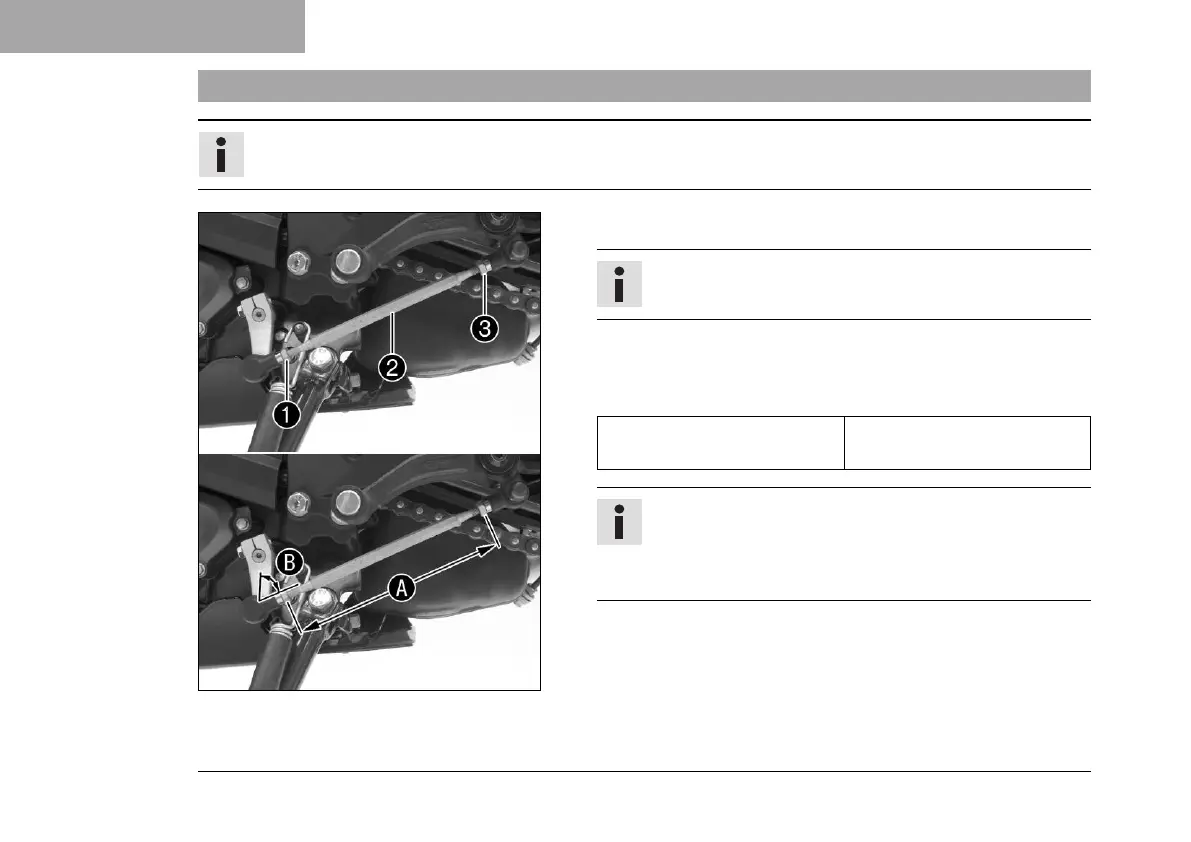

7.3 Adjusting the shift lever
Info
The adjustment range of the shift lever is limited.
V00621-10
–
Loosen nut
1
, holding threaded rod
2
.
Info
Nut
1
has a left-handed thread.
–
Loosen nut
3
, holding threaded rod
2
.
–
Adjust the shift lever by turning shift rod
2
.
Guideline
Shift rod adjustment range
A
150 … 162 mm (5.91 …
6.38 in)
Info
Make the same adjustments on both sides.
At least five screw threads must be screwed into the
seating.
–
Check adjusting angle
B
.
