KTM F8201T5 Setup Instructions

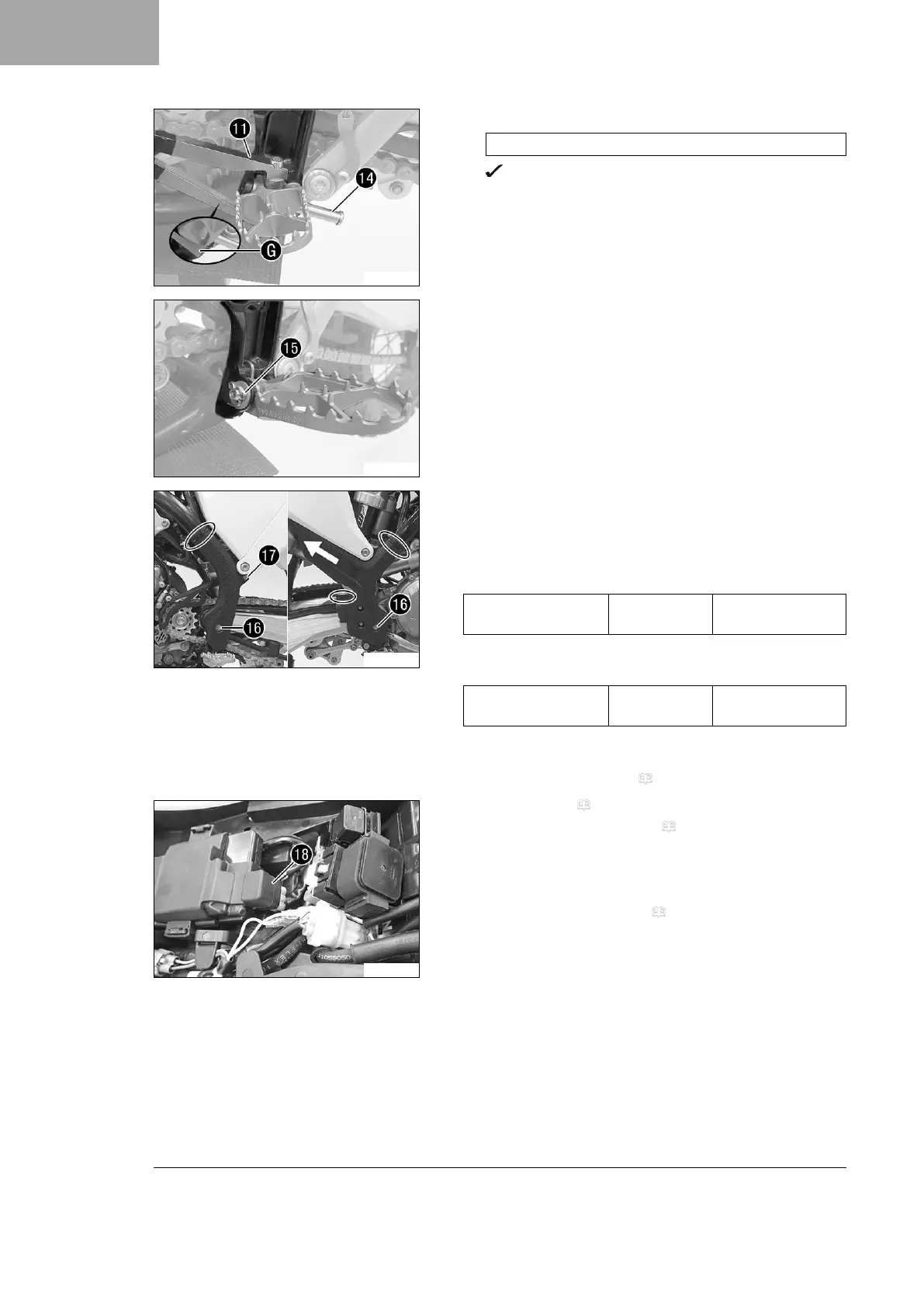

2 SETUP
12
F01632-10
–
Press the spring with special tool
bl
.
Footrest spring plier (79029083000)
The special tool is applied to area
G
on the footrest.
–
Mount pin
bo
.
F01633-10
–
Mount the washer and splint
bp
.
F01637-10
– Position the left frame protector.
– Insert the right frame protector from below and push it to the
rear.
–
Mount and tighten screws
bq
with the washers.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
–
Mount and tighten screw
br
.
Guideline
Screw, frame protec-
tor
M5 3 Nm (2.2 lbf ft)
– Mount the cable ties.
(XC‑F US FACTORY EDITION)
– Install the motor guard. ( p. 20)
F01635-10
– Remove the seat. ( p. 17)
– Remove the air filter box cover. ( p. 18)
– Route the diagnostics connector and the positive cable
upwards towards the 12-V battery.
–
Position diagnostics connector in holder
bs
.
– Install the air filter box cover. ( p. 19)
