F01533-10
–

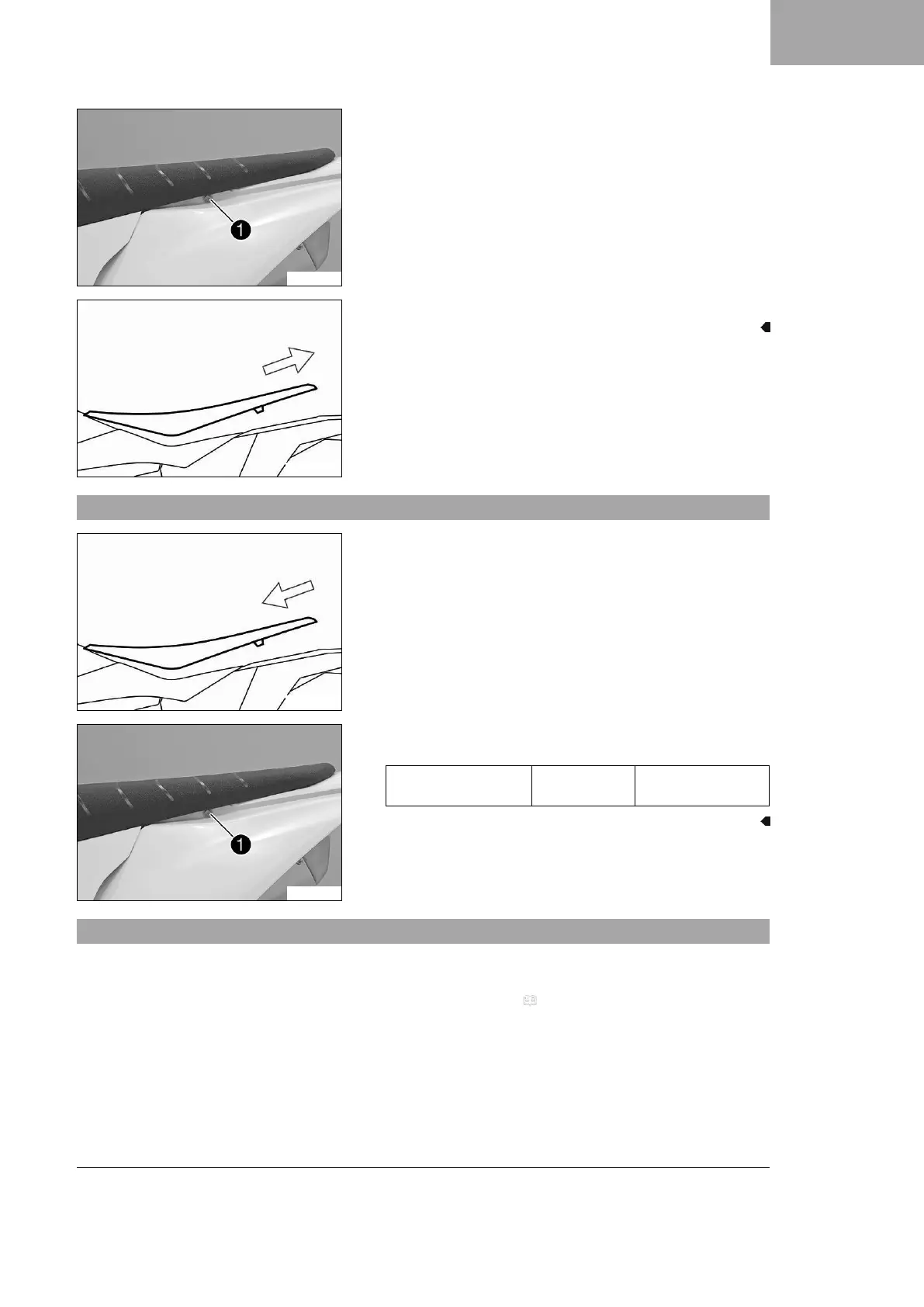

Remove screw
1
.
H02218-10
–
Raise the rear of the seat, pull the seat back, and lift it off.
3.7 Mounting the seat
H02218-11
–
Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure the seat is latched in place correctly.
F01533-10
–
Mount and tighten screw
1
.
Guideline
Screw, rear seat fix-
ing
M6 10 Nm (7.4 lbf ft)
3.8 Removing the air filter box cover
Condition
The air filter box cover is secured.
– Remove the seat. ( p. 16)
