KTM F8401V5 - 3.9 Installing the air filter box cover

3 WORK
18
F01534-10
–

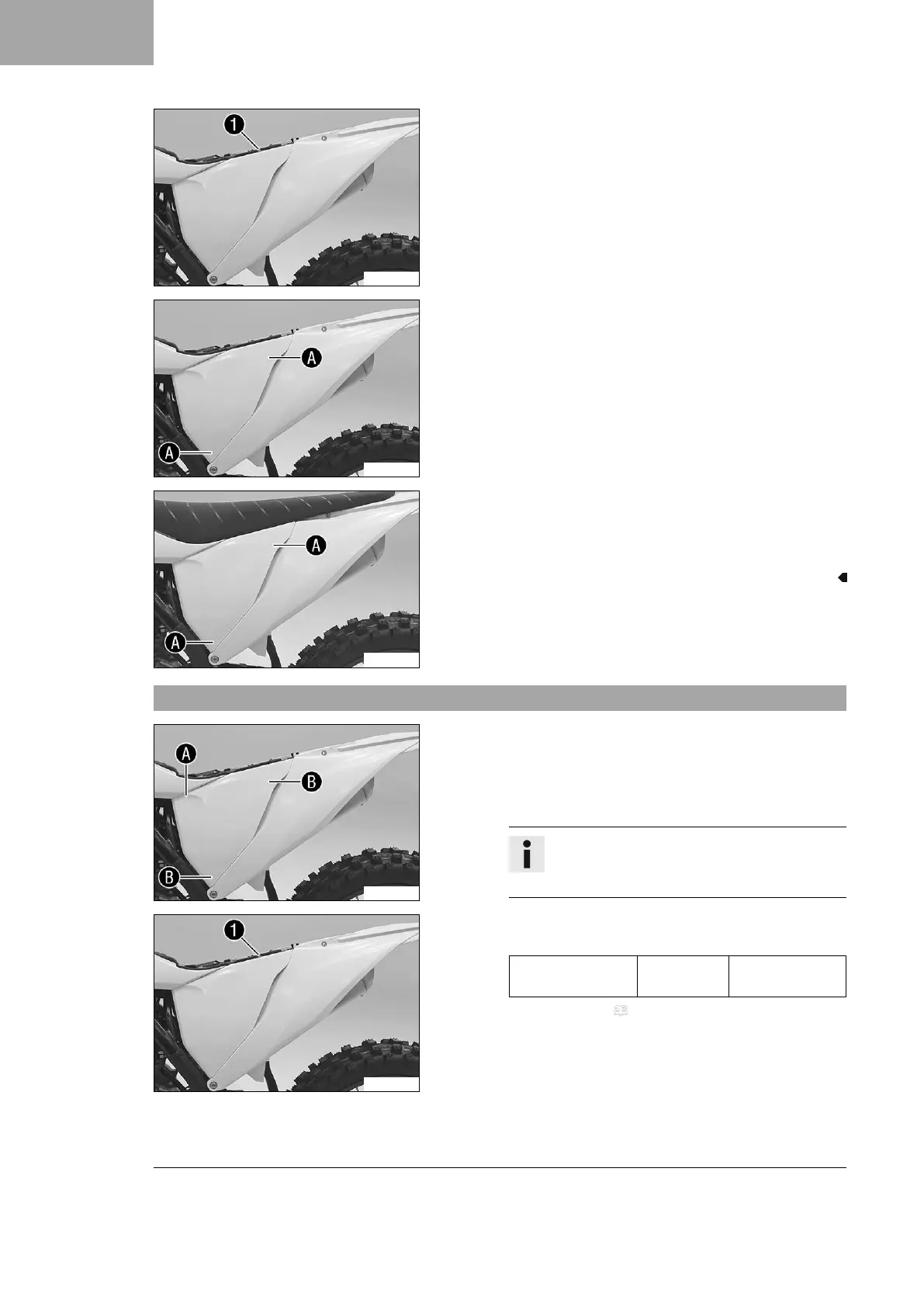

Remove screw
1
.
F01534-11
–
Pull off the air filter box cover in area
A
sideways and
take off toward the front.
F01535-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
laterally and take
it off at the front.
3.9 Installing the air filter box cover
F01534-12
(All SX‑F models)
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
Info
An air filter box cover with openings for greater
airflow and a more direct response is included.
F01534-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter
box cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
– Mount the seat. ( p. 17)
